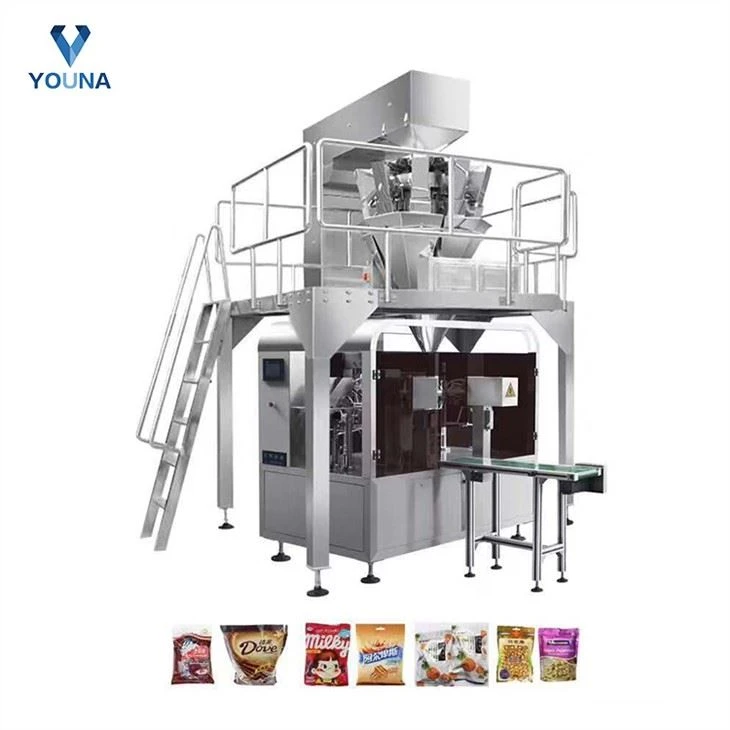

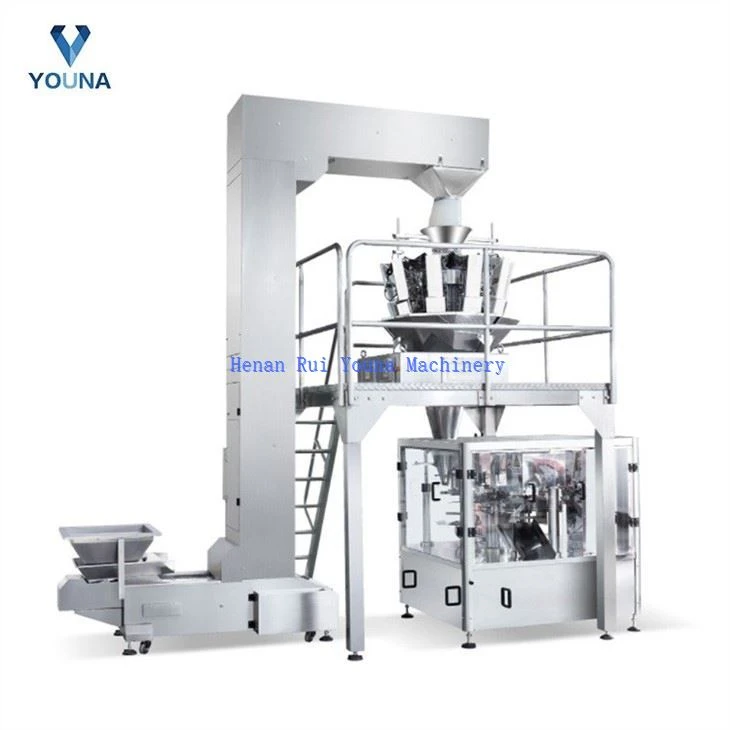

Automatic Seed Bag Packing Machine
video
Automatic Seed Bag Packing Machine

Automatic Seed Bag Packing Machine

automatic seed bag packing machine characteristic is that machinery replaces manual packaging, realizes the automation of enterprise product packaging production, improves enterprise production efficiency, and greatly reduces product costs. It can effectively reduce the pollution of materials in the packaging process, and the finished product is sealed

  • Fast Delievery
  • Quality Assurance
  • 7*12 Customer Service
Product Introduction

Products Description






automatic seed bag packing machine Introduction

This automatic seed bag packing machine is mainly used for packing granule products:such as sugar,salt,coffee beans,rices,peanuts,sunflower seeds,grains,nuts,chocolate beans,potato chips/strips,frozen dumping,cereal,desiccants,etc.

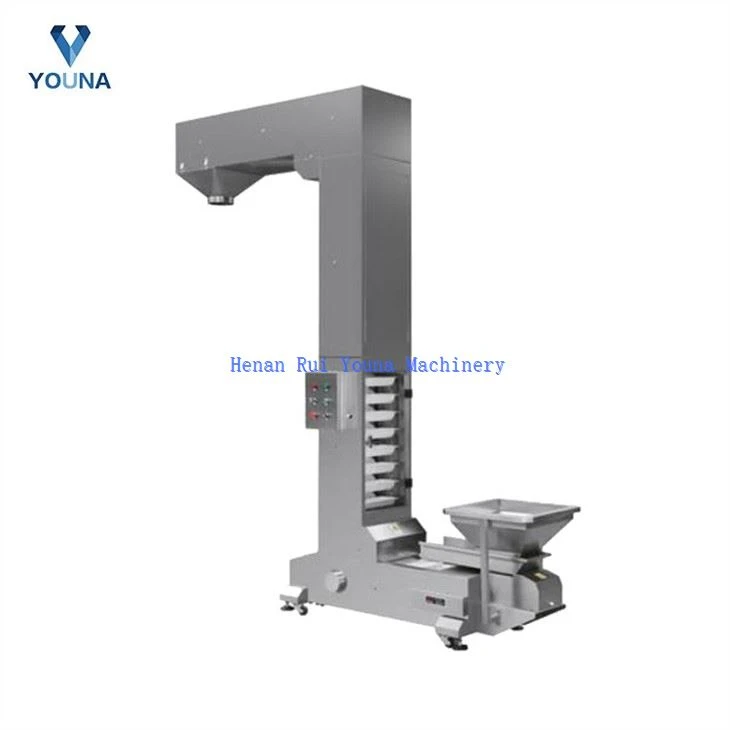

1.Work:material lifting→multi-head weigher measuring→coding→bag making→filling→gas injection /exhaust→sealing→counting→conveying finished products.
2.PLC servo and pneumatic control system,large touch screen forms the core of drive control system,high reliability and intellectualized degree,and equipped with safety protection.
3.Touch screen can store a variety of different product packaging process parameters,when replacing product,it can be used at any time without resetting.
4.Equipped with fault display system,when the fault occurs,be clear at glance,in order to be promotely ruled out.
5.This automatic seed bag packing machine body is carbon steel.(optional:304 stainless steel)

technical parameter



Model

automatic seed bag packing machine

Working station of machinery

Eight-working Station

Function

Giving bagCoding OpeningFill consolidateHeat sealing Forming and output product

Pouch type



Portable bagHand luggageZipper bagEdging bag 4 sides

Edging bag 3 sidesPaper bag

Size of bag

W:100~200mm      L:100~300mm

Weight

1000kg

Scaling scope

5-1500g

Speed

25-45bags/min (The speed depends on the product status and filling weight)

Total power

1.5Kw

Dimension

1540x1240x1465mm

Compress air requirement

0.4m3/min supply by user

Products effect



Automatic seed bag packing machine is suitable for:

1. Solid Species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food etc.
2. Granule Species: grain, refined monosodlum glutamate, granular drug, capsule, seed, chemistiy condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.
3. Powder species: milk powder, grape sugar, washing powder, chemistry condiment, refined sugar, pesticide, fertilizer etc.
4. Liquid Species & Thick liquid Species: detergent, millet wine, soy sauce, vinegar, fruit juice, drink, tomato sauce, peanut butter, Jam, chili sauce, bean sauce etc.
5. Materials that can pack in bag.


certificate

ce



packing and shipment





WPS

FAQ



Q:  Are you a factory or trading company?

A: We are a factory specialized in daily cosmetic, foods, beverage, Pharmastic Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.

Q: How does your factory do regarding quality control?

A: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication

Q: What's the guarantee if we purchase from you?

A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn't caused by improperly operation then we would offer the new parts for free.

Q: Would you have a discount if l have a large order?

A: Yes,we will offer a discount of varying degrees according to the quantity of the order.
