Small Bottle Liquid Filling Machine
This machine adopts high precision micro magnetic pump, motor speed and pump working time to measure the filling quantity，Pump head is made of 316L，Acid and alkali resistance, corrosion resistance；It can meet the filling capacity requirements of 5ml-4500ml and is not limited by the filling container. It is a reliable and durable filling equipment.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
This machine adopts high precision micro magnetic pump, motor speed and pump working time to measure the filling quantity，Pump head is made of 316L，Acid and alkali resistance, corrosion resistance；It can meet the filling capacity requirements of 5ml-4500ml and is not limited by the filling container. It is a reliable and durable filling equipment.
Voltage | 220V 50HZ/60HZ （110V Customizable） | |
Power： | Single（90w） | Double（180w） |
Filling range： | 5ml — 4500ml | 5ml — 4500ml |
Filling accuracy： | ±1% | ±1% |
Maximum flow： | 4.5L/min | 4.5L/min |
Control mode： | Inching, manual, automatic | Manual, automatic |
Cooling way： | Air cooling | Air cooling |
Size： | 410*300*210mm（Single） | 500*300*210mm（Double） |
Weight： | 10KG（Single） | 15kg（Double） |
1. Simple structure
2. Convenient operation and long discharge nozzle
3. Stable and reliable performance, high filling accuracy and long service life
It is suitable for a wide range of applications. Almost all liquid that can flow can be filling，Especially suitable for filling oil, washing liquid, acid and alkali liquid and high corrosive liquid

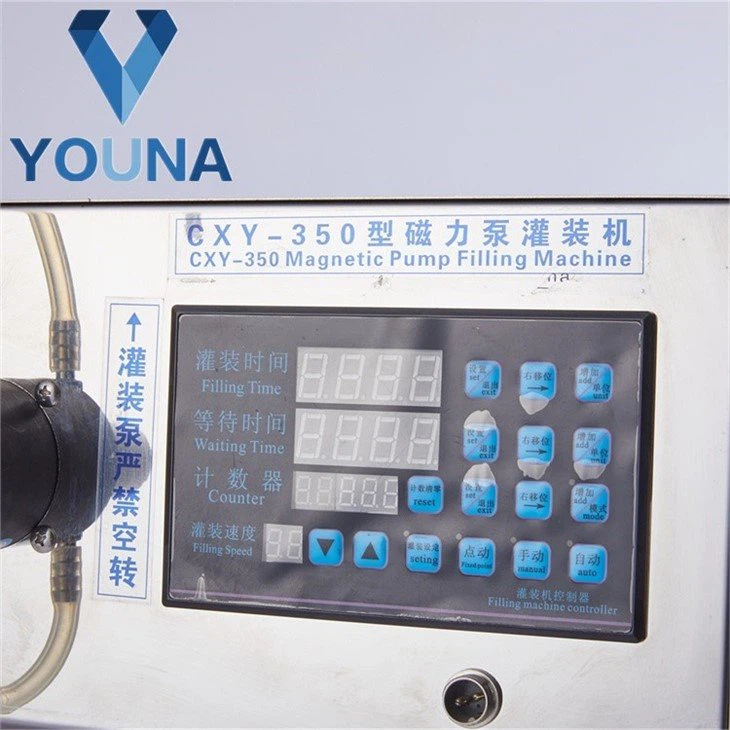

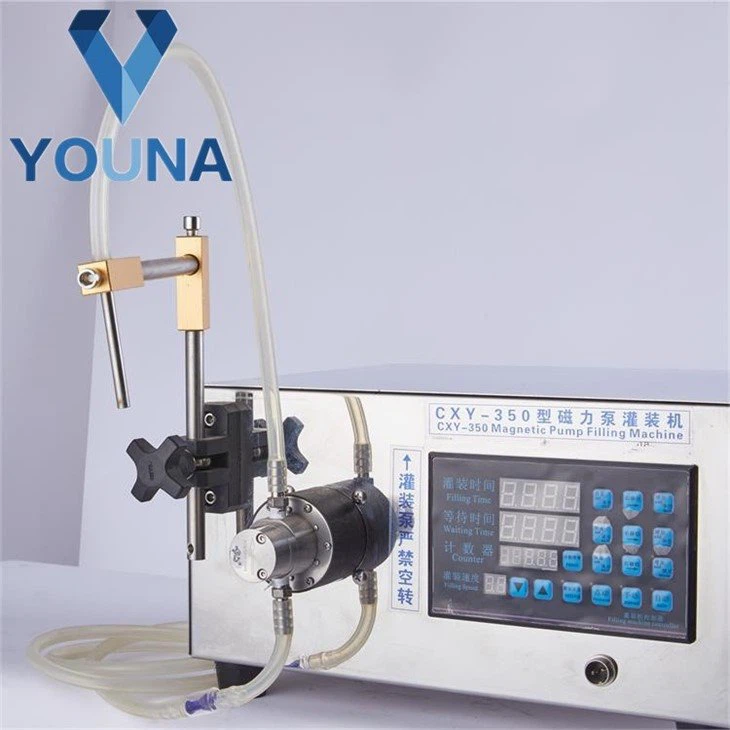

1. control panel 2. power switch 3. Foot switch socket 4. Discharging mouth 5. Magnetic pump head 6. Fixed bracket 7. Check valve 8. Filter
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in zhengzhou and wenzhou
3. Strong professional technical team ensure to produce the top quality products.
4. Rich experience on packing machinery
5. 6*12 hour service time per week.
6. Do OEM and customization according different packing demand
7. All machine is 12 month warranty time
