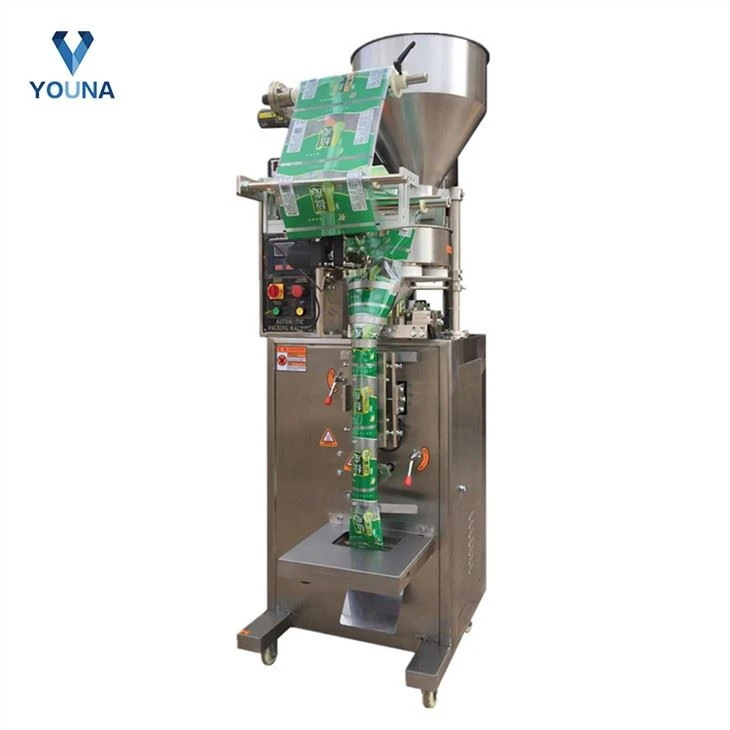

Fully Automatic Chocolate Bean Packing Machine
This is compact VFFS volumetric cup‑type packing machine. One unit completes feeding, measuring, bag forming, filling, sealing and cutting without extra auxiliary machines. 1.3 It has a color code localization function. Only by touching the screen slightly, you can move photoelectric eye instead of operating by hand.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Main Structure
Top stainless material hopper for material storage.
Rotary volumetric cup dosing system: adjust cup height to change filling volume. Dosing based on material volume, not real‑time weighing.
Triangle‑plate bag former: adjust position for different bag width, no need to change mould.
Film holder with date printer option.
Vertical & horizontal heat‑sealing unit + cutting knife.
PLC touch screen control panel.
Specification
Filling range: 5‑200g
Speed: 20‑45 bags per minute
Measuring principle: volumetric cup filling
Accuracy: ±1-10g, subject to material density & particle condition
Contact part: 304 food‑grade stainless steel
Advantage
All‑in‑one compact unit, small footprint, no need elevator or multi‑head weigher.
Low investment cost, easy operation & cleaning.
Flexible bag‑size adjustment.
Disadvantage
Volumetric dosing, accuracy lower than multi‑head combination weigher. Weight error occurs if material density changes.
Triangle former not recommended for heavy aluminum foil large bags.
Application
Sugar, salt, seed, tea, desiccant, granular seasoning and free‑flow small granule products.
Quick Selection Guide
Choose this cup‑filling machine for low‑cost, small‑batch production, low requirement for weighing tolerance.
