Automatic Dry Powder Packing Machine
1) Material conveying, measuring, filling, bag-making, date-printing, finished product outputting are all completed automatically.
2) High measuring accuracy and efficiency.
3) Packing efficiency will be high with vertical packing machine and easy to operate.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description

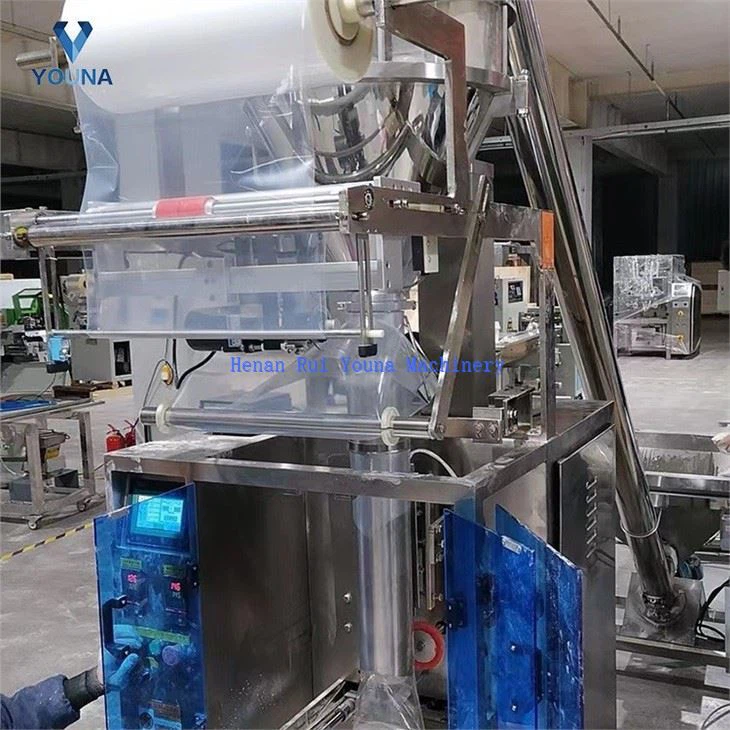

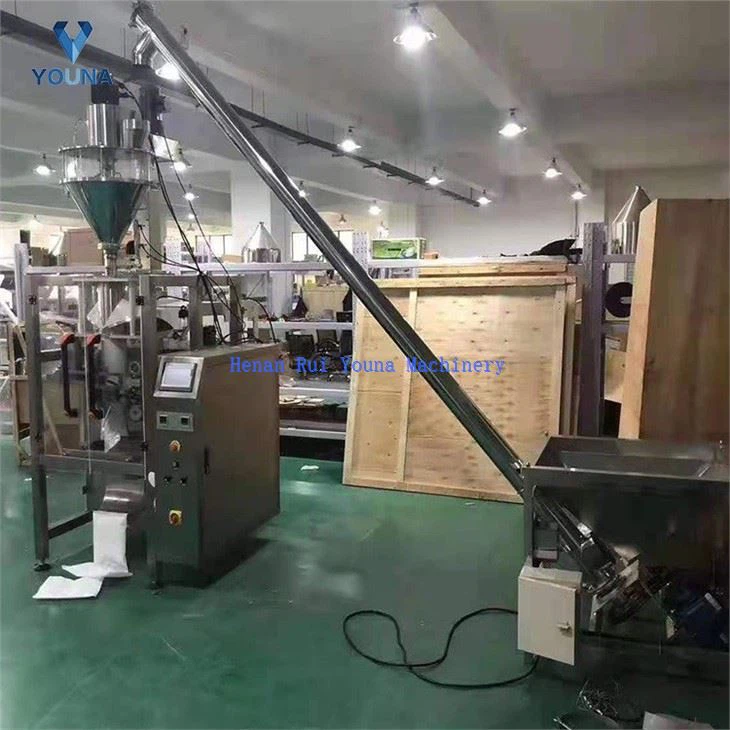

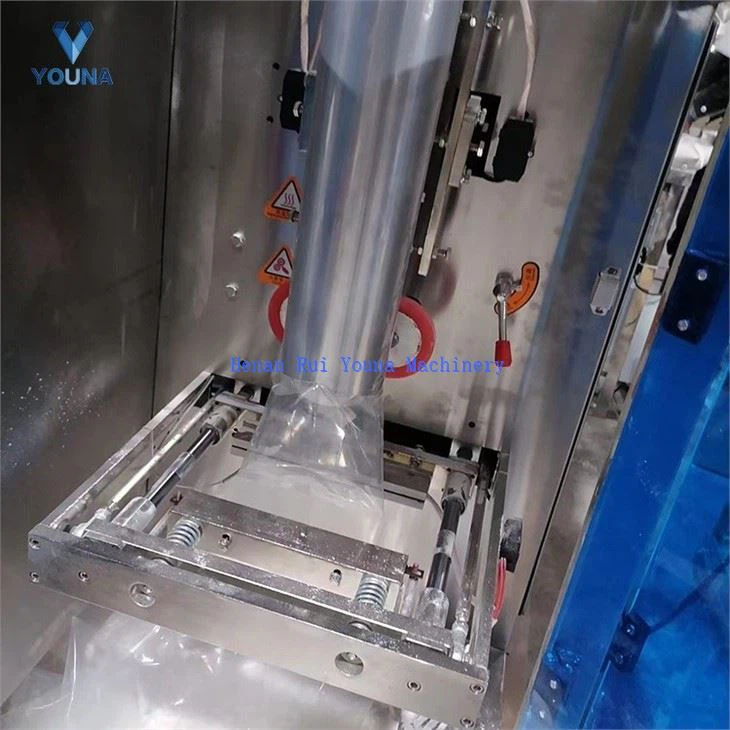

automatic dry powder packing machine
1.Low cost high gain, high speed and efficiency.
2.The whole system of automatic dry powder packing machine is linkage control, automatic feeding, stop working without materials.
3.The contact parts with food is made of 316# high quality stainless steel, it will never get rust.
4. minimize the loss with complete automatic warn protection function;
5. the way of bag making: the automatic dry powder packing machine can make pillow-type bag and standing bag according to customer's requirements.
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
technical parameter
|
Model
|
LP-320
|
LP-420
|
LP-520
|
LP-620
|
LP-720
|
|
Bag Length(mm)
|
80-180
|
80-300
|
80-400
|
100-400
|
100-400
|
|
Bag Width(mm)
|
45-150
|
50-200
|
80-250
|
150-300
|
180-350
|
|
Max Width of Roll(mm)
|
320
|
420
|
520
|
620
|
720
|
|
Packing Speed(bags/min)
|
40-90
|
5-80
|
5-70
|
5-65
|
5-10
|
|
Air Consumption(Mpa)
|
0.65
|
0.65
|
0.65
|
0.65
|
0.65
|
|
Gas Consumption(m3/min)
|
0.3
|
0.3
|
0.4
|
0.4
|
0.4
|
|
Power Voltage (v)
|
220v
|
220v
|
220v
|
220v
|
220v
|
|
Power (kw)
|
3kw
|
2.2KW
|
4kw
|
4kw
|
5kw
|
|
Demension(cm)
|
122*90*175
|
132*95*136
|
115*179.5*165
|
165*125*2000
|
178*134*210
|
|
Weight(kg)
|
350
|
540
|
600
|
800
|
900
|
Products structure
Products effect

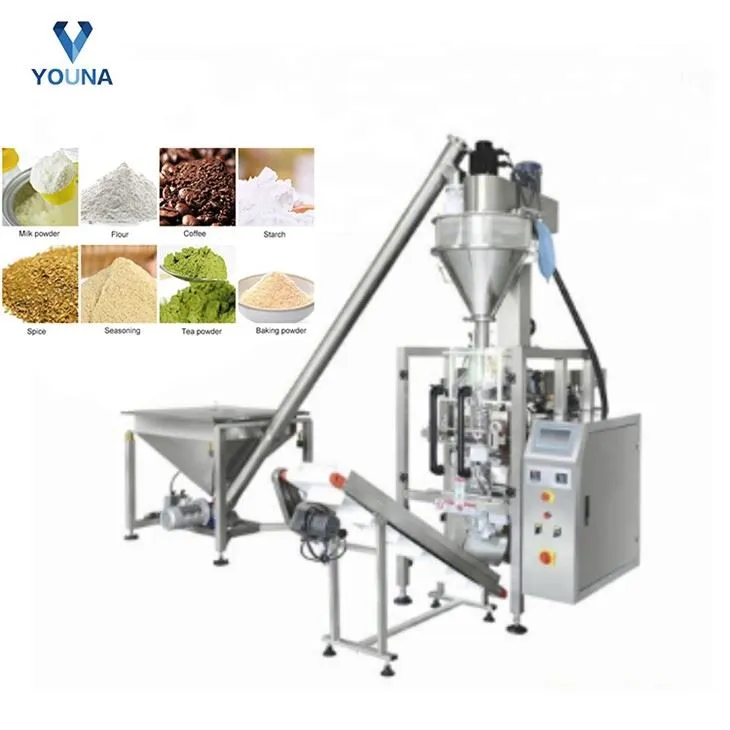

automatic dry powder packing machine suitable flour grain coffee milk juice sugar powder filling and packing machine
certificate
Packing and shipment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
