Automatic Multi-lanes Packaging Machine
1. The deposit is 30% of the purchase price, and the balance should be paid before delivery.
2. Delivery days 30 days from receipt of deposit.
3. Need to use air compressor, customers need to bring their own.
4. warranty: 1 year
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description

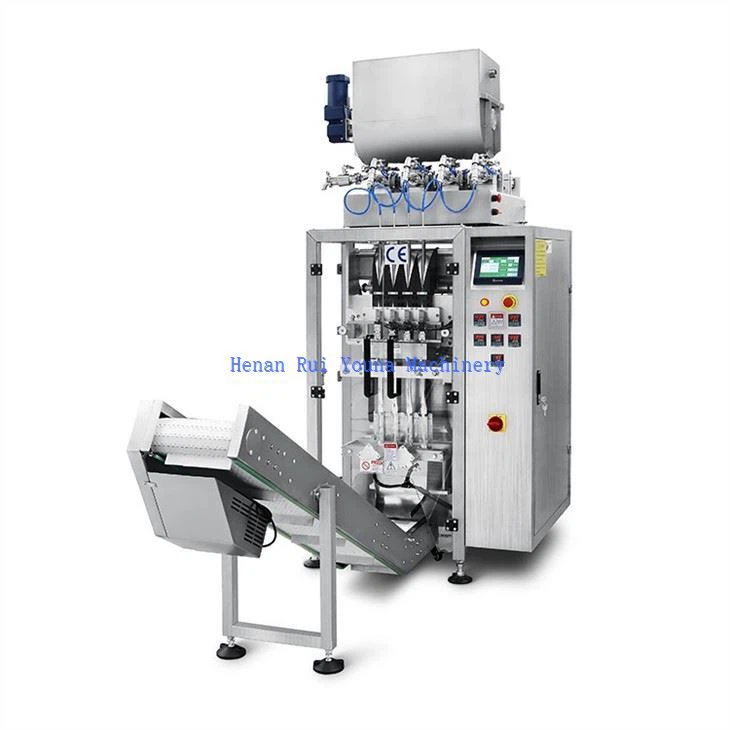

Automatic Multi-lanes Packaging Machine Introduction
1.Automatic multi-lanes packaging machine use English and Chinese screen display, operation is simple.
2.PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3.Automatic multi-lanes packaging machine can stock ten dispose, simple to change variety.
4.Sever motor drawing film, position accurately.
5.Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6.Packing type diversification, pillow sealing, standing type, punching etc.
7.Bag-making, sealing, packing, print date in one operation.
technical parameter
Technical parameter
|
Type |
4line Automatic multi-lanes packaging machine |
|
Bag length |
30--180mm(L) |
|
Bag width |
20---70mm(W)customized |
|
Max width of roll film |
480mm |
|
Packing weight |
Customized |
|
Packing speed |
20-50 Bag/row/min |
|
Air consumption |
0.6mpa-0.8mpa |
|
Gas consumption |
0.35m3/min |
|
Power voltage |
380VAC/50Hz |
|
Power |
5.8 KW |
|
Dimension |
1877mm(L)*1360mm(W) *2715mm (H) |
|
Weight |
1050 kg |
Products effect
Automatic multi-lanes packaging machine is suitable for jam, passion fruit jelly, peanut butter and other liquid products.
According to customer needs,the bag types can be changed:Back Side Seal, ,Three Sides Seal ,Four Side Seal .Specical bag Seal as per requested
certificate
shipping and payment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
