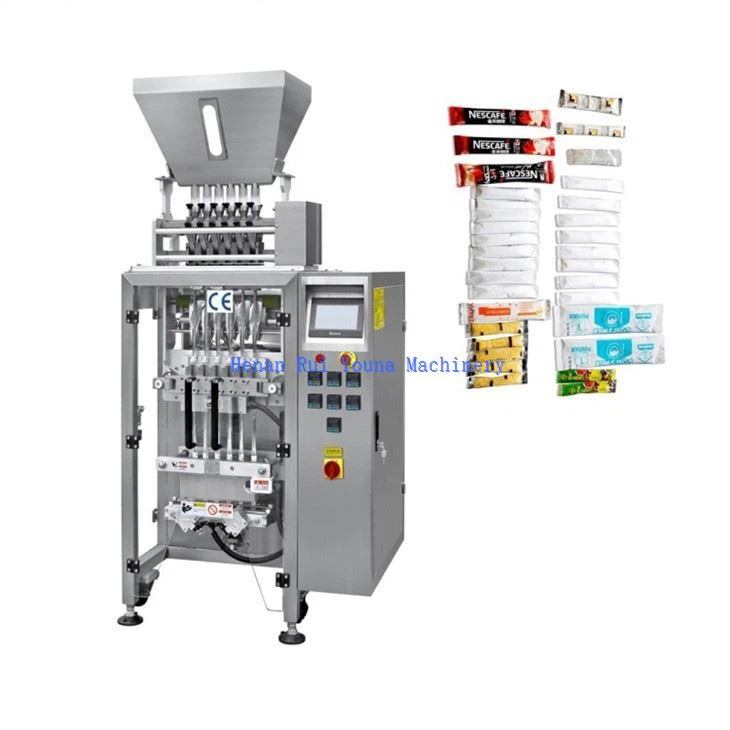

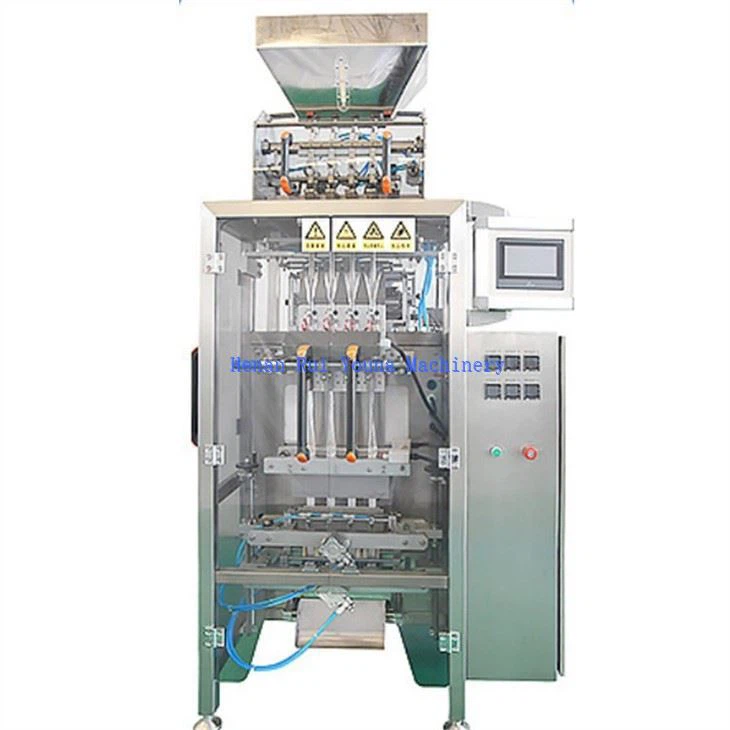

Automatic 4/6 Line Packing Machine
1. The deposit is 30% of the purchase price, and the balance should be paid before delivery.
2. Delivery days 30 days from receipt of deposit.
3. Need to use air compressor, customers need to bring their own.
4. warranty: 1 year
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Introduction
1. Automatic 4/6 line packing machine can produce multi lanes bags at same time.
2. Automatic 4/6 line packing machine main function: automatic split film at right position, measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine’s work steps.
Technical parameter
Type | 4line |
Bag length | 30--180mm(L) |
Bag width | 20---70mm(W) customized |
Max width of roll film | 480mm |
Packing weight | Customized |
Packing speed | 20—50 Bag/row/min |
Air consumption | 0.6mpa-0.8mpa |
Gas consumption | 0.35m3/min |
Power voltage | 380VAC/50Hz |
Power | 5.8 KW |
Dimension | 1877mm(L)*1360mm(W) *2715mm (H) |
Weight | 1050 kg |
