Automatic PE Film Shrink Wrapping Machiine For Beer Juice Water Bottles
Products Description 1.The shrink wrapping machine for carton box feature on the unique optimized design of linear feeding 2.The shrink wrapping machine for carton box introduce foreian advancedtechnoloavandproductiontechnoloay. and the eauipment performance is stable and reliable 3.The...
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
•FL6040 is automatic film sealer adopts straight into and out design. Especially suitable for carton or larger items collection or single shrink wrapping.
•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.
•Imported photoelectric sensor, positioning accuracy, fast response.
•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
• The user-friendly control box makes the operation much easier.
•Equipped with pressure device makes sure the position is stable even for the light product during the procession.
•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
•The entire machine realizes unmanned operation with the production line connecting.
•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
•BS6040 automatic shrink wrapping machine for beer juice water bottles adopts hot air circulation motor makes the hot air in the tunnel is even, constant temperature.
•The chain conveyor made of solid steel covered with imported durable silicone tube.
•Using imported conveyor motor and frequency inverter controls transmission speed to achieved step less speed regulating.
•The separate control box makes sure the electrical components with good ventilation.
•With cold wind equipment which play an effective role in cooling.
technical parameter
|
Model |
FL6040 Film sealing machine |
Model |
BSE-6040 PE Film shrink wrapping machiine |
|
Voltage |
110,220 |
Voltage |
220V /380V |
|
Power |
1.5kw |
Power |
28kw |
|
Max sealing size |
500*400mm |
|
|
|
Air pressure |
0.5-0.7Mpa |
Convey speed |
0-10m/min |
|
Work table height |
850±50mm |
Shrink tunnel |
1800*600*400mm |
|
Sealing temp |
0-200℃ |
Loading |
30kg max |
|
Packing speed |
5-8 |
Shrink film |
PE POF PVC |
|
Machine weight |
350kg |
Machine weight |
380kg |
|
Machine size |
1040*925*1920mm |
Machine size |
2800*850*1760mm |

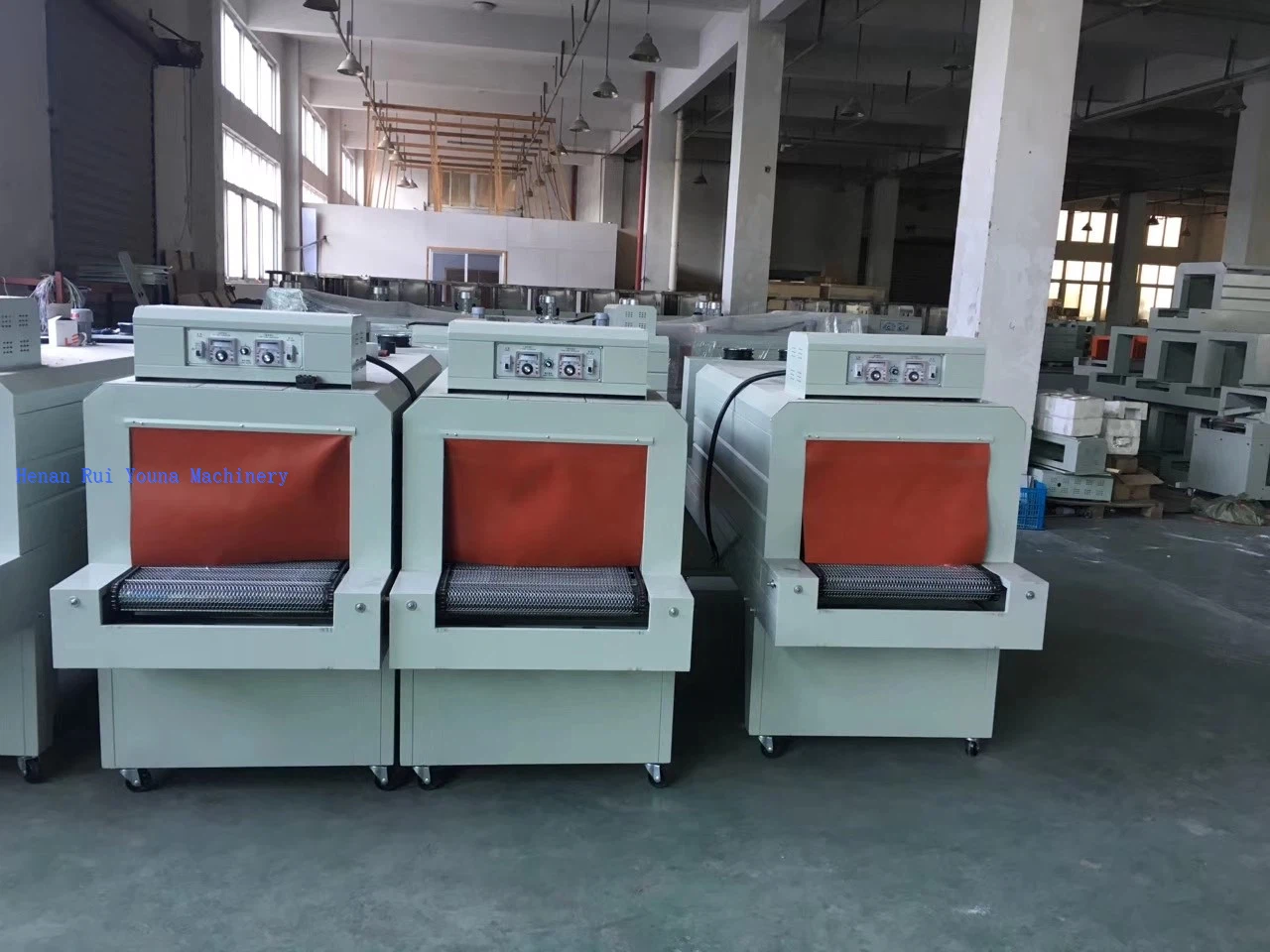

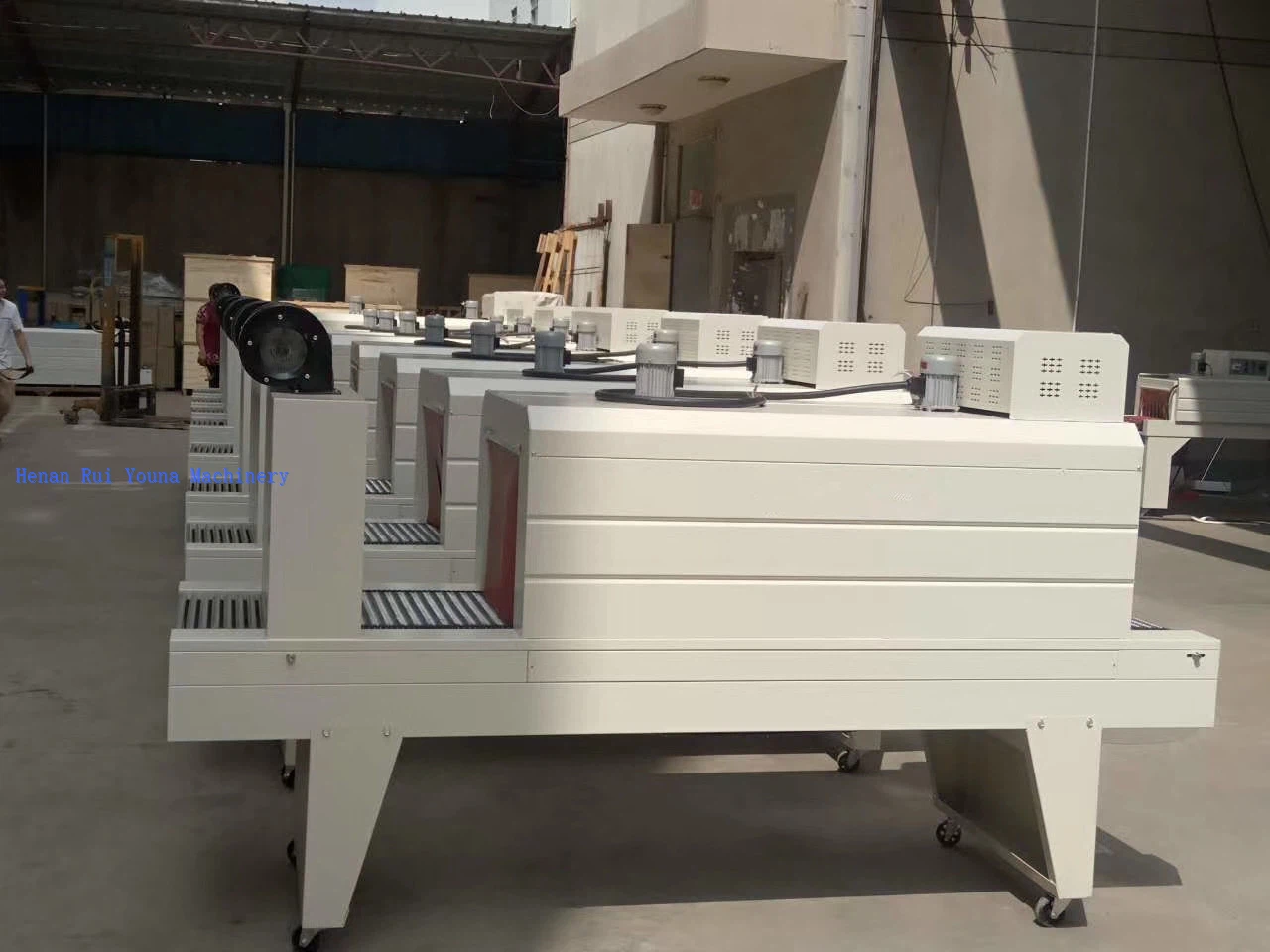

Products display
Products effect
automatic PE Film shrink wrapping machiine for beer juice water bottles
factory corner
certificate
Packing and shipment
FAQ
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
Q: How long is your delivery time?
A: small quantity with in 1-7 days, big quantity within 10-30 days.
Q: What is your term of payment?
A: we accept TT Western Union, L/C.
Q: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
