Automatic Sleeve Shrink Wrapping Machine
Automatic sleeve shrink wrapping machine is perfect for the heat shrinking packaging of bottled products (w/o) bottom bracket,such as glass bottles beverages cans,mineral water beer and medical drugs.The packaged product is better in appearance
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
1.Automatic sleeve shrink wrapping machine is perfect for the heat shrinking packaging of bottled products (w/o) bottom bracket,such as glass bottles beverages cans,mineral water beer and medical drugs.The packaged product is better in appearance
2.The automatic sleeve shrink wrapping machine can be assembled with constant temperature heat shrinking machine to achieve the perfect packaging effect.
3.The machine adopts human-computer interface with large-touch-screen, which is the most advanced in China. lt also uses the world famous PLC program controller and the best performance pneumatic components. Other important devices are famous brands at home and abroad, which effectively protect the running performance of the whole machine
4.The automatic sleeve shrink wrapping machine is controlled by the upper and lower inductive proximity sensors can effectively prevent miscut packaging,also to ensure the safety of operation (up and down hot air circulation system to ensure a perfect packaging effect in one time, is the first choice for enterprise packaging.)
5.The best quality AC contractor perfectly combined with smart meters so that the system temperature is more stable.greatly extending the lifetime of the machine
Products structure
technical parameter
|
Model |
YN-6040AF |
Model |
BSE5040A |
|
Voltage |
3phase220V/380V,50-60Hz |
Voltage |
3phase 220V/380V,50-60Hz |
|
Power |
110-220V/50-60Hz |
Power |
1.5KW |
|
Capacity |
0-10pcs/minute |
Heater power |
20KW Adjuster |
|
Working air pressure |
0.4-0.6Mpa |
Convey speed |
0-10m/minute |
|
Width/thickness of the film |
600mm/0.03-0.25mm |
Tunnel size(L*W*H) |
1500x500x460mm |
|
Max.sealing size |
L600XW400mm |
Conveyor loading |
30KGS MAX. |
|
Min.packing dimension(L*W*H) |
250x50x100mm |
Machine size(L*W*H) |
2500x820x1680mm |
|

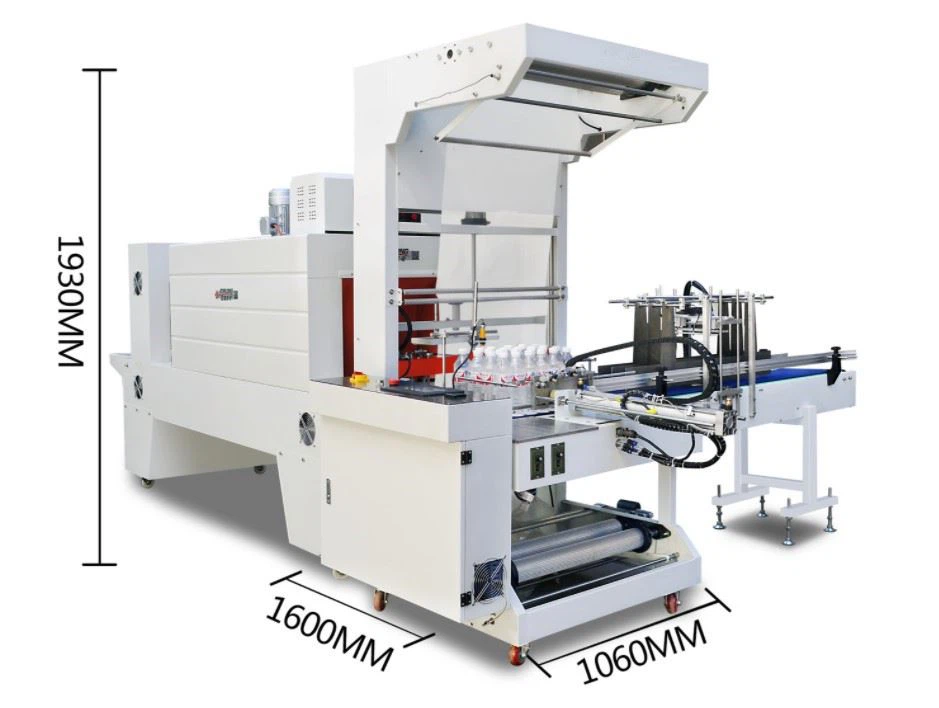

Machine size(L*W"H) |
1060x1600x1930mm |
Machine weight |
470KGS |
|
Machine weight |
370kg |
Shrink film |
PE,POF,PVC,PP |

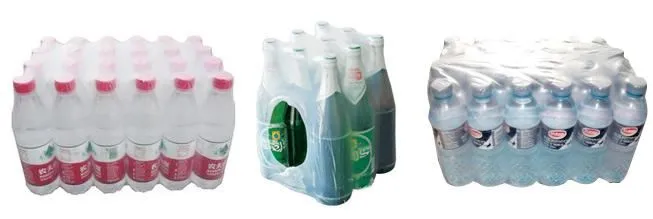

application
certificate
packing and shipment
FAQ
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
Q: How long is your delivery time?
A: small quantity with in 1-7 days, big quantity within 10-30 days.
Q: What is your term of payment?
A: we accept TT Western Union, L/C.
Q: Is your price competitive?
A:Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
