Product Introduction
Products Description

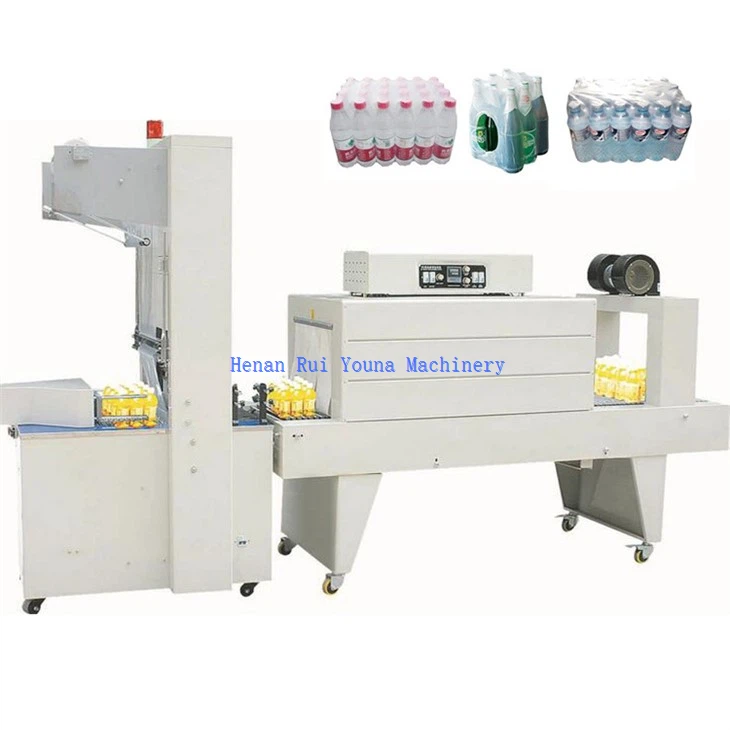

automatic 24 bottle heat shrink wrapping machine

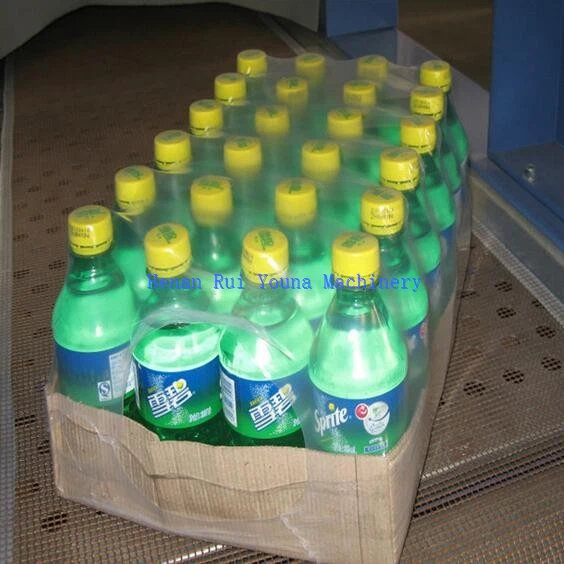

automatic 24 bottle heat shrink wrapping machine is suitable for wrapping pop-cans, bottles etc.It works with PE shrink tunnels.
The automatic 24 bottle heat shrink wrapping machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using
long-time.
Characteristic:
1. Up and down magnetic switch prevent sealing mistakes, and protect the operators.
2. The input position is adjustable, base on the size of products packaged.
3. Intelligent temperature controller performs stable.
4. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5. Up and down large power fan system ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
7. The size of tunnel can be customized as your request.
application
Automatic 24 bottle heat shrink wrapping machine suitable for cans, glass bottles, plastic bottles,beer, mineral water and other large-scale automatic shrink packaging items, but also can be used in wood, steel ceramics, household appliances, computers and other industries.
technical parameter
|
Model |
FL6040 Film sealing machine |
Model |
BSE-6040 PE Film shrink wrapping machiine |
|
Voltage |
110,220 |
Voltage |
220V /380V |
|
Power |
1.5kw |
Power |
28kw |
|
Max sealing size |
500*400mm |
|
|
|
Air pressure |
0.5-0.7Mpa |
Convey speed |
0-10m/min |
|
Work table height |
850±50mm |
Shrink tunnel |
1800*600*400mm |
|
Sealing temp |
0-200℃ |
Loading |
30kg max |
|
Packing speed |
5-8 |
Shrink film |
PE POF PVC |
|
Machine weight |
350kg |
Machine weight |
380kg |
|
Machine size |
1040*925*1920mm |
Machine size |
2800*850*1760mm |
