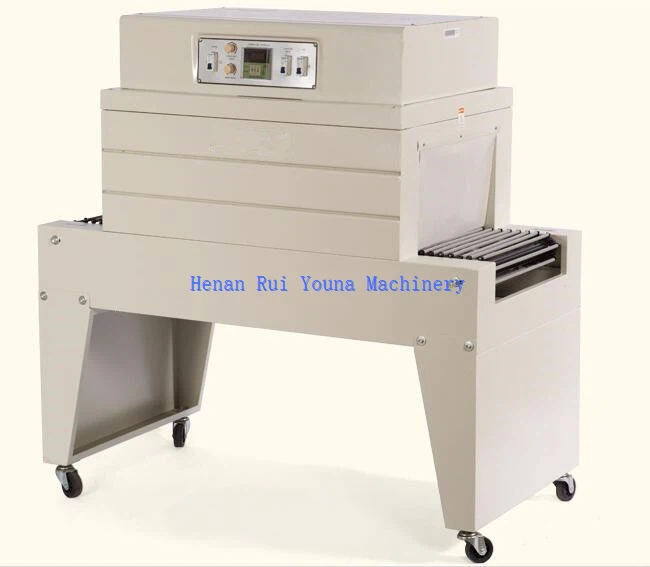

Semi Auto PE Film Shrink Packing Machine
The semi auto PE film shrink packing machine is suitable for shrink films such as PVC, POF, etc. It is widely used in food, beverage, medicine, cosmetics, toys, hardware and other industries.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
Semi Auto PE Film Shrink Packing Machine
semi auto PE film shrink packing machine is generally used as a supporting equipment for the shrink packaging machine, and it can also be used alone; Teflon coated non-stick layer sealing cloth, sealing and cutting non-sticky film, and the sealing is neat and not cracked. After the product is sealed and cut, it enters the shrinking machine to complete the packaging .
Products features
semi auto PE film shrink packing machine
1.The speed, air and temperature of the machine is adjustable
2. Easy operation, the machine can run with different sizes of object.
3. Advanced Heating Style.
4. Efficiency temperature increasing time saving energy.
5. Hot air circulation tunnel saving the wastage of heat.
technical parameter
semi auto PE film shrink packing machine technical parameter
|
Model |
DFQC450 L sealer |
Model |
DSA4525 shrink tunnel |
|
Voltage |
220V 50-60HZ |
voltage |
220/380V /50-60HZ |
|
Power |
1KW |
Power |
9KW |
|
Seal cut time |
0-3 seconds |
Convey speed |
0-10m/min |
| max suitable fim width | 500mm | ||
|
Max seal size |
550*450mm |
Shrink tunnel |
1000*450*250mm |
|
Max packing size |
550*450mm W+2H<500MM |
Max loading |
5kg |
|
Speed |
500pcs/Hour |
Suitable film |
POF,PVC |
|
Machine size |
1600*700*1170mm |
Machine size |
1260*670*1300mm |
|
Weight |
126kg |
Weight |
100kg |
Products details
semi auto PE film shrink packing machine

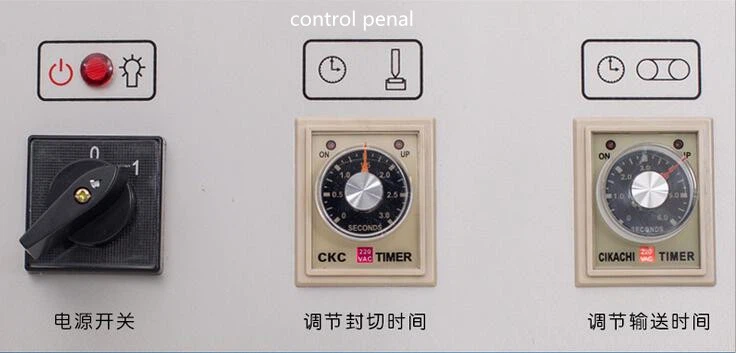

control panel
The control panel can control the power switch, adjust the sealing and cutting time, and regulate the conveying time

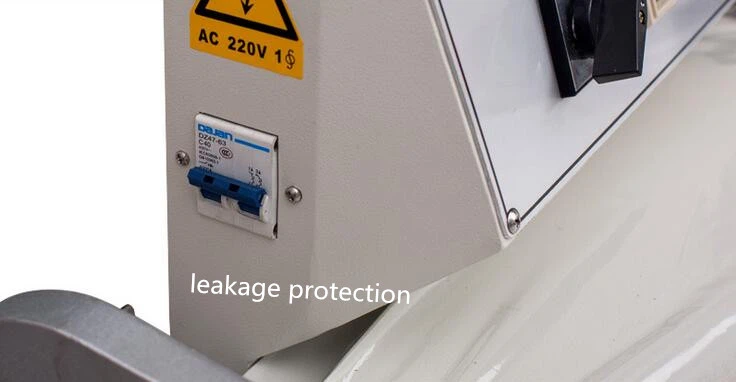

Leakage protection
The leakage protection device provides an additional layer of protection, making your use of the machine safer and more reassuring.
The countertop is adjustable.
The height of the conveyor table can be adjusted freely according to the products, and the operation is simple and convenient! The emergency stop switch control makes the packaging sealing and cutting more controllable.
application
certificate
packing and shipment
FAQ
FAQ
Q: Are you a factory or trading company?
A: We are a factory specialized in daily cosmetic, foods, beverage, Pharmastic Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q: How does your factory do regarding quality control?
A: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
Q: What's the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn't caused by improperly operation then we would offer the new parts for free.
