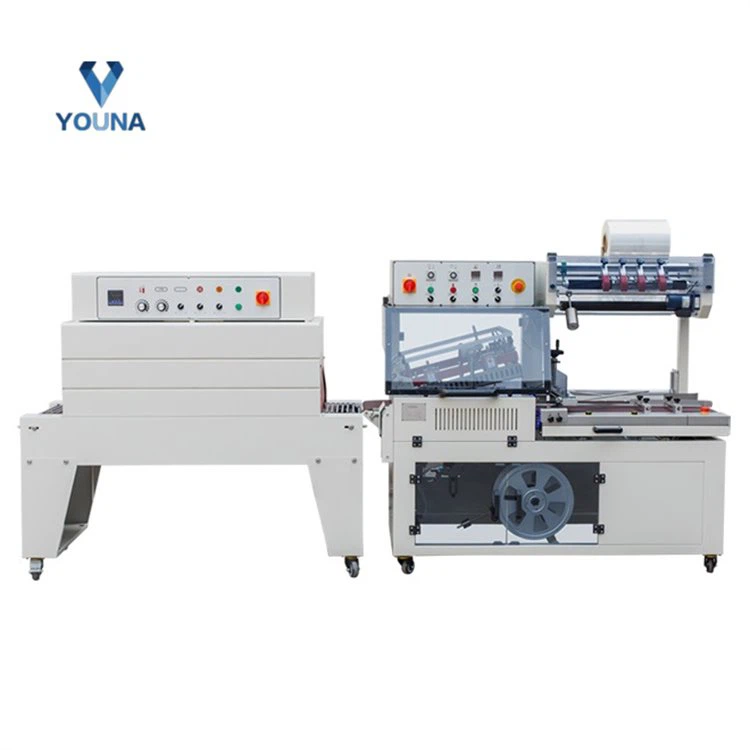

Automatic POF Film Shrink Wrapping Machine
The sealing knife is made of copper alloy sprayed with PTFE, which is non-sticky, tightly sealed, smoke-free and pollution-free. The horizontal and vertical sealing knives are integrally connected without gaps, and the film will not be broken. The sealing frame is made of high-quality alloy steel, the sealing quality is stable, and the frame is not easily damaged.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction

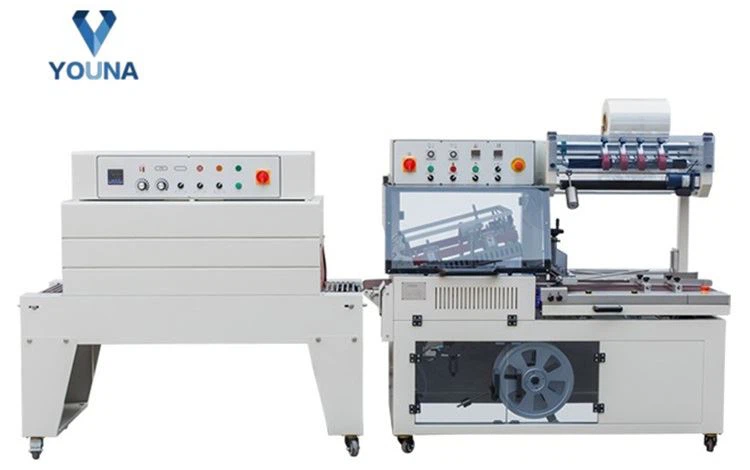

QL5545 automatic L-type sealer:
1.The sealing knife is made of copper alloy sprayed with PTFE, which is non-sticky, tightly sealed, smoke-free and pollution-free. The horizontal and vertical sealing knives are integrally connected without gaps, and the film will not be broken. The sealing frame is made of high-quality alloy steel, the sealing quality is stable, and the frame is not easily damaged.
2.This machine has a complete automation system, equipped with sensors, which can achieve high-speed automatic work.
3.It is easy to adjust according to different sizes of products, only need to adjust the handle wheel to reach, and the operation is convenient.
4.The machine has a protection function to prevent miscuts and ensure the safety of operators.
BS-D4520 shrink tunnel:
1.Adopt Schneider AC contactor, high-power solid-state booster, and intelligent temperature controller to make the temperature system more accurate and extend the working life.
2.It adopts solid roller conveyor, and the roller is wrapped with high temperature silicone tube. Can withstand heavier products, not easy to wear (net conveyor can be selected).
3.The machine uses a high-power fan motor to ensure that there is enough strong wind to achieve a perfect packaging effect.
4.The inner wall is made of stainless steel, which has fast temperature transfer, uniform heating, low energy consumption and long service life.
Model | QL5545 | BS-D4520 |
Max packing size (mm) | L450×W350×H100 | W450×H200 |
Max sealing size (mm) | L550×W450 | / |
Power(KW) | 1.30 | 8.5 |
Capacity | 0-20 pcs/min | 0-15 pcs/min |
Voltage | 220V 50/60HZ | 380V 50/60HZ |
Sealing temperature | 160℃—240℃ depends on thickness of film and environment temperature | 160℃—240℃ depends on thickness of film and environment temperature |
Thickness of film(mm) | 0.015－0.10 | 0.015-0.10 |
Air pressure(kg/cm2 ) | 5 | 5 |
Packing material | POF PVC | POF PVC |
Machine weight(kg) | 320 | 210 |
Machine size(mm) | L1700×W900×H1400 | 1700*900*1400 |
Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 1-15 days, customized machine will be delivered as the negotiation with our clients.
Q: How is the packing of products?
A: Small machine is in carton case with Foam inside, bigger machine is packed in standard export packing.
Q: Can you arrange shipment for customer?
A: Yes, very good experience in shipping, we work with the most reliable shipping companies in the world.
Q: When we receive your machine ,is there any other accessories we will get?
A: Yes, some easy abrasion spare parts will be provided free in case when some small problems happen.
Q: What about the after-sale service?
A: We provide 12 months quality warranty after dispatch,and some free easy abrasion spares of machine,we also provide long time free technical advisory services and technical services.
