Paste Tube Filling Machine

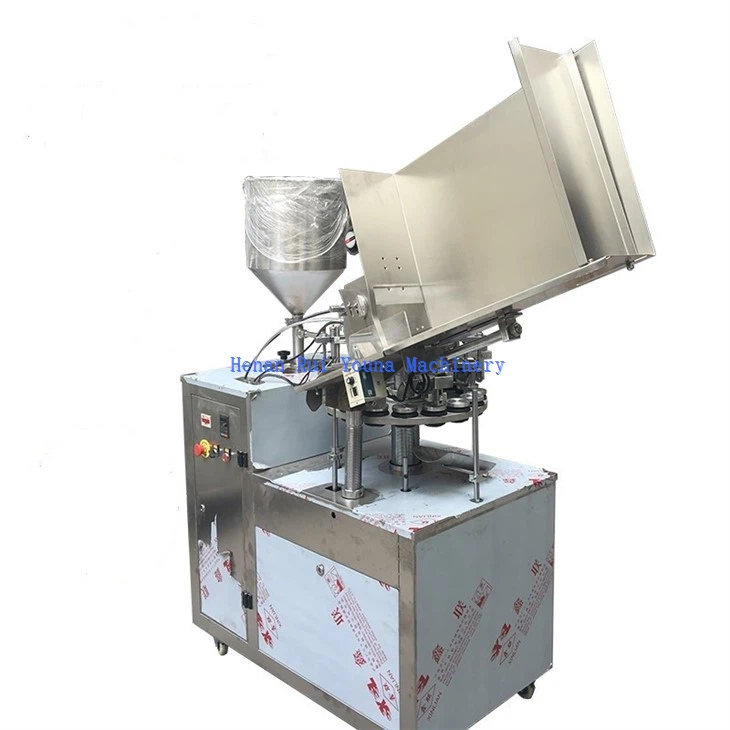

This paste tube filling machine adopts touch screen and PLC control, automatic tube, automatic positioning, imported high-speed heater and high stability flow meter formed by the hot air heating system, with strong sealing, high speed, without damaging the external appearance of the seal The seal is beautiful and neat. The machine can be equipped with a variety of different specifications of the filling head to meet the filling requirements of different viscosity.

Send Inquiry

Fast Delievery
Quality Assurance
7*12 Customer Service

Product Introduction

paste tube filling machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.

PLC controller and color touch screen are applied and made it possible for programmable control of the machine. lt can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.

lt's ideal equipment for Aluminum tube, plastic tube and laminated tube filling and sealing for cosmetic, foodstuff and bond industries.

Technical parameter:

Model	YN-500 paste tube filling machine
Volt	220V/50-60Hz
Power	4KW
Air source	0.6-0.8MPa
Filling volume	3-30ml, 5-50ml, 50-500ml
Filling error	≤±1℅
Capacity	35-45pcs/min
tube diameter	ф15-50mm
Machine size	1650×950×1750mm
Machine weight	750kg
Contact part	Standard model: 304SUS
Mixing and Heating	Optional

paste tube filling machine is applicable to exfoliating cream, silicone, hand cream, lotion, hair color, skin care cream, hand sanitizing gel, milk cream, special toothpaste, cosmetic, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.
