Cosmetic Sachet Filling Machine

This automatic tube filling and sealing machine adopts touch screen and PLC control, automatic tube, automatic positioning, imported high-speed heater and high stability flow meter formed by the hot air heating system, with strong sealing, high speed, without damaging the external appearance of the seal The seal is beautiful and neat. The machine can be equipped with a variety of different specifications of the filling head to meet the filling requirements of different viscosity.

Send Inquiry

Fast Delievery
Quality Assurance
7*12 Customer Service

Product Introduction

Products Description

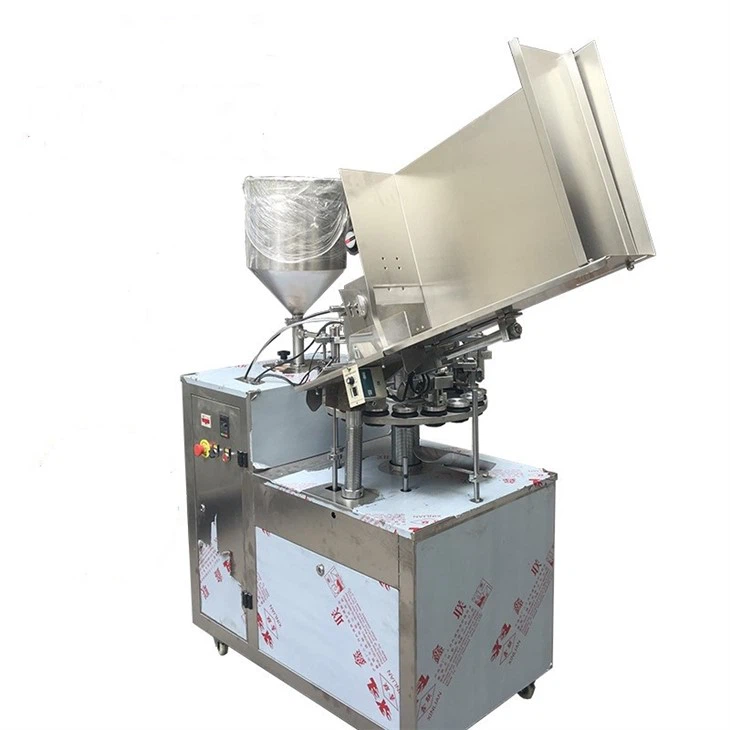

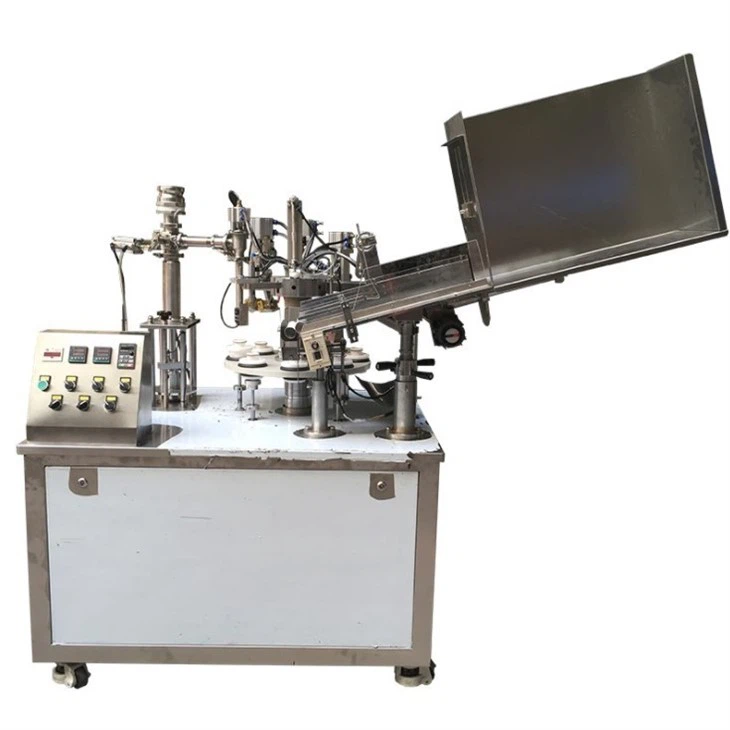

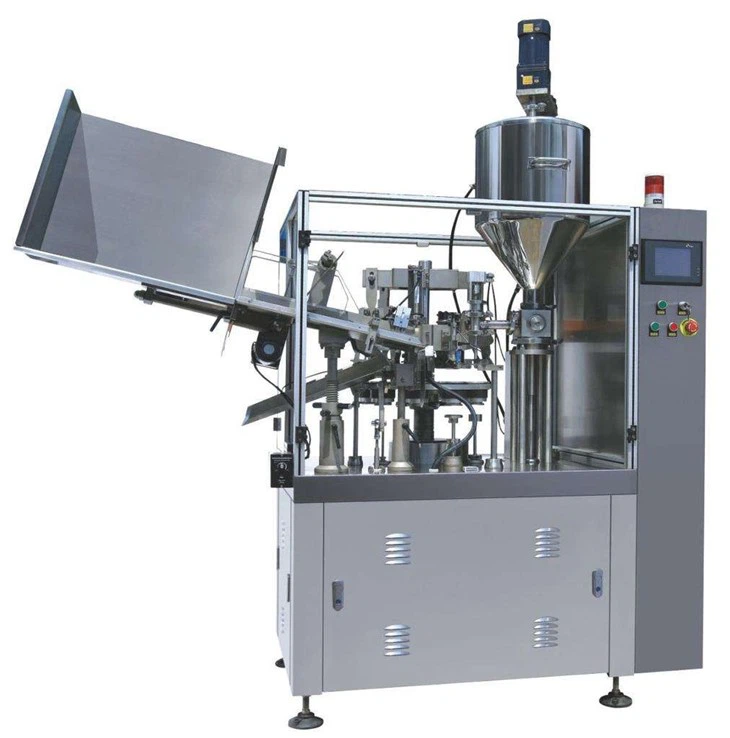

Cosmetic sachet filling machine

1. Automatic tubes feeding to save labor.

2. Air heating&water cooling type for tail sealing, mild sealing mode, Instant cooling after heating sealing to protect the tube from being burned, sealing effect is more beautiful.

Work Flow: 1. Automatic Tubes Feeding. 2. Tube Orientation Checking. 3. Filling. 4. Air Heating/Cooling. 5. Heat Sealing/Cooling → Date Printing. 6. Tube Tail Cutting. 7. Finished Tube Output.

technical parameter

Technical parameter:

Model	YN-500 cosmetic sachet filling machine
Volt	220V/50-60Hz
Power	4KW
Air source	0.6-0.8MPa
Filling volume	3-30ml, 5-50ml, 50-500ml
Filling error	≤±1℅
Capacity	35-45pcs/min
tube diameter	ф15-50mm
Machine size	1650×950×1750mm
Machine weight	750kg
Contact part	Standard model: 304SUS
Mixing and Heating	Optional

application

cosmetic sachet filling machine is applicable to exfoliating cream, silicone, hand cream, lotion, hair color, skin care cream, hand sanitizing gel, milk cream, special toothpaste, cosmetic, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.
