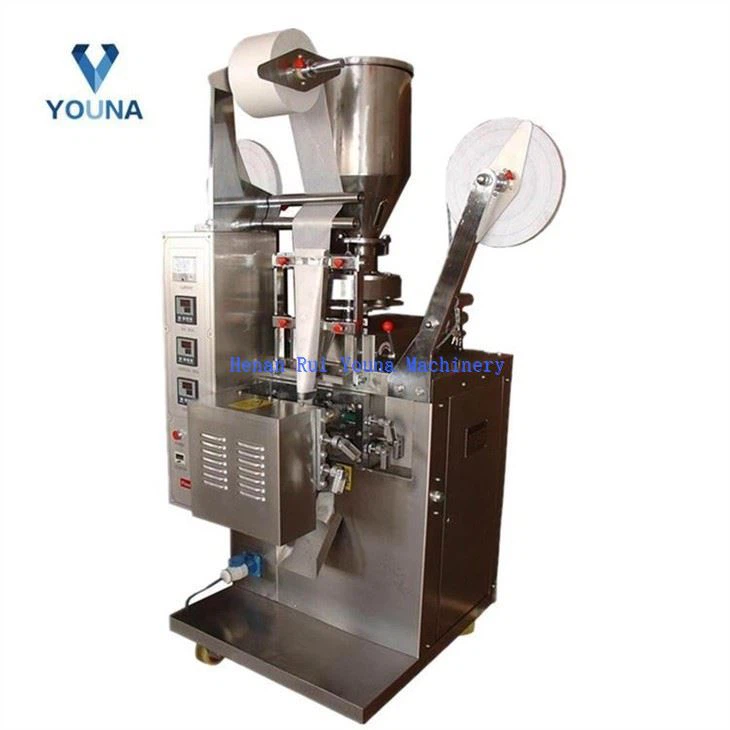

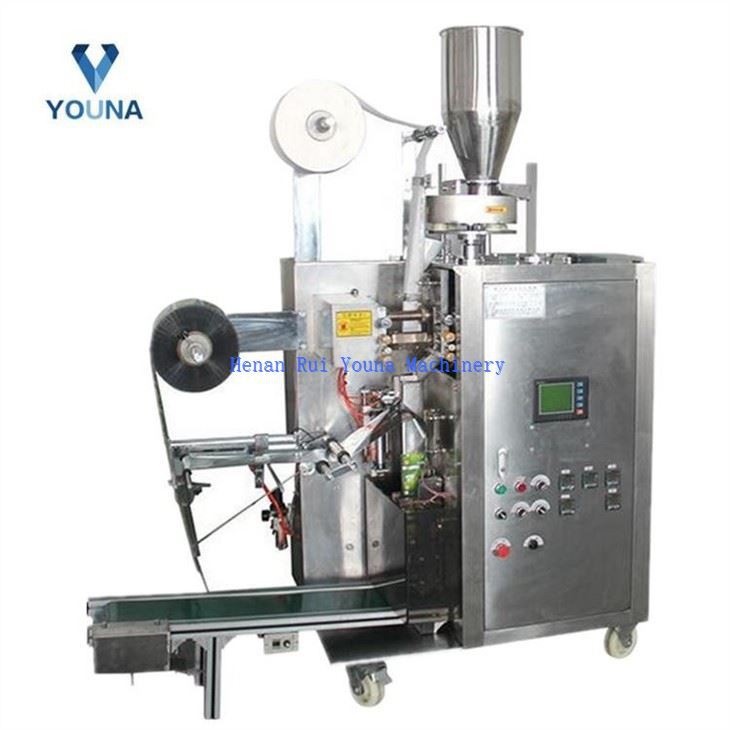

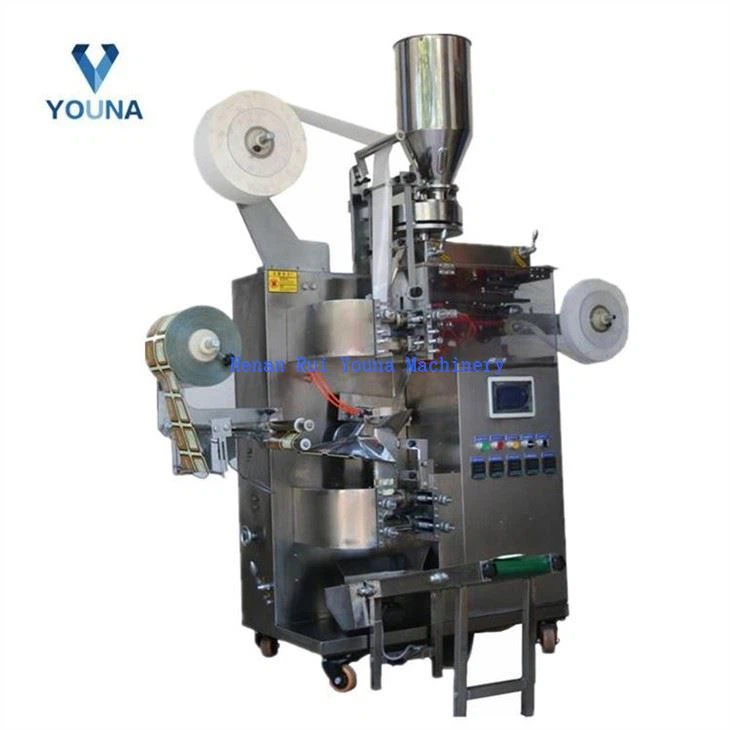

Automatic Filter Paper Bag Packing Machine For Tea
automatic filter paper bag packing machine for tea is a kind of machine used for packing tea seeds, medical, health-care and tea industries granular shaped ingredients. All of these items could be packed with envelops, and with thread and tag at the same time. The processes of...
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
automatic filter paper bag packing machine for tea
1,The outer sealing paper is controlled by the step motor, the length of the bag is stable, and the positioning is accurate;
2.automatic filter paper bag packing machine for tea using PID to adjust the temperature controller, the temperature control is more accurate;
3.automatic filter paper bag packing machine for tea using PLC to control the movements of the whole machine, man-machine interface display, easy to operate;
4.automatic filter paper bag packing machine for tea all the materials can be made of SUS304 stainless steel, to ensure the product's hygiene and reliability;
5.Part of the work of the cylinder with original imports, to ensure that the work is accurate and stable.
6.The automatic filter paper bag packing machine for tea can complete the additional device, the date printing, the date of printing, easy to tear and other functions.
technical parameter
automatic filter paper bag packing machine for tea technical parameter
|
Model |
YNJX-88 |
YNJX-88A |
|
Pack way |
Outer bag inner bag without string |
Outer bag inner bag with string |
|
Packing range |
3-15ml |
3-15ml |
|
Packing speed |
30-60 bag/min |
30-40 bag/min |
|
Inner bag size |
W: 50-80mm L: 50-70mm |
W: 50-80mm L: 50-70mm |
|
Outer bag size |
W: 70-90mm L: 80-120mm |
W: 70-90mm L: 80-120mm |
|
Tag size |
No |
W: 40-55mm L: 20-40mm |
|
String |
No |
155mm |
|
Volt |
220V/50HZ |
220V/50HZ |
|
Power |
3.5KW |
3.5KW |
|
Air consumption |
0.2-0.5Mpa |
0.2-0.5Mpa |
|
Air pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
Machine size |
1000*950*2000mm |
1000*950*2000mm |
|
Weight |
500KG |
500KG |
Products effect
This automatic filter paper bag packing machine for tea is suitable for packing tea, medical tea, healthy tea, and other small granule teas,
packed in inner bag and outer bag for one time
factory corner
certificate
packing and shipment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
