Automatic Ketchup Packing Machine
This automatic ketchup packing machine integrates mechanical and electrical functions, two CPU computer control system, large screen LCD, microcomputer control optical tracking correcting system, equipped with high-precision stepper motor, exactly the same position design of each bag, control system of complete synchronization, fixed length, position and speed, automatic fault diagnosis function.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description

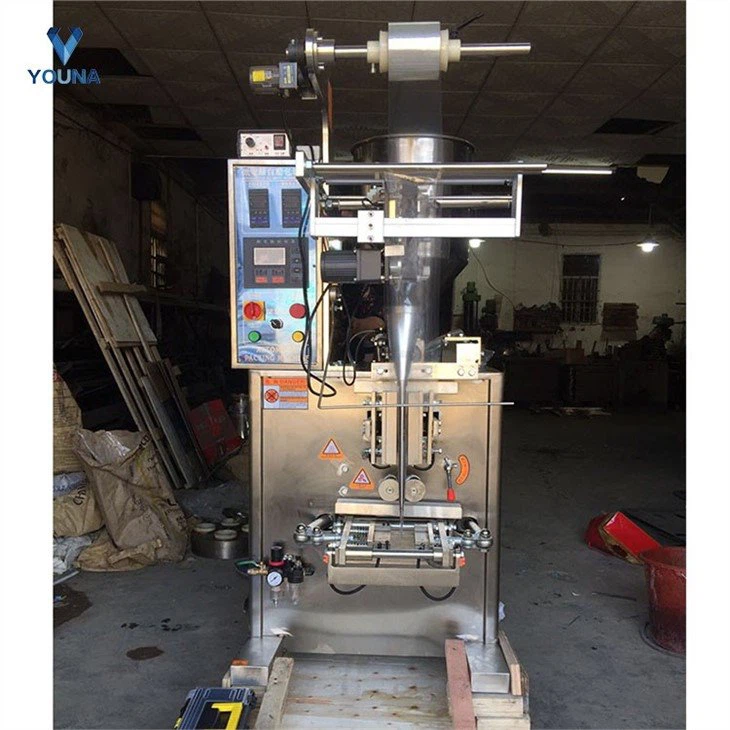

Automatic ketchup packing machine introduction
This automatic ketchup packing machine integrates mechanical and electrical functions, two CPU computer control system, large screen LCD, microcomputer control optical tracking correcting system, equipped with high-precision stepper motor, exactly the same position design of each bag, control system of complete synchronization, fixed length, position and speed, automatic fault diagnosis function.
1.Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
2.Computer PLC control and automatic alarming function.
3.English and Chinese human-machine operation interface, it is easy to operate, a high degree of automation.
4.High sensitivity photoelectric eye color tracing, more accuracy.
5.Automatic ketchup packing machine uses famous brand components, ensure the quality and durability of the machine.
technical parameter
Automatic ketchup packing machine Technical parameter
|
Model |
320 |
350 |
480 |
|
Volt |
220v 50-60HZ |
220v 50-60HZ |
220v 50-60HZ |
|
Power |
1.2kw |
1.2kw |
1.2kw |
|
Film width |
4-32cm |
4-32cm |
18-46cm |
|
Bag length |
3-18cm |
3-28cm |
5-32cm |
|
Packing weight |
Customized |
Customized |
Customized |
|
Speed |
20-40 bags/min |
20-40 bags/min |
20-40 bags/min |
|
Machine weight |
250kg |
280kg |
320kg |
Products structure
Products effect
The automatic ketchup packing machine is suit for automatic filling and packing liquid/paste/sauce/cream item, such as milk, juice honey, hair shampoo, tomato paste, salad dressing, jam ect. The machine adopt the pneumatic pump dosing unit which have the machine advantage of suit for viscous liquid item with high efficient and reliable performance. The most important is the machine equip with small horizontal ribbon blender mixing machine, this will make the machine much suit for seasoning paste/sauce, such as chilli paste, for the mixing machine will have the paste evenly packaged with less deposite.
This automatic ketchup packing machine is suitable for kinds of paste and liquid material such as honey, tomato paste, chilli sauce, peanut butter, seasame paste, jam, cosmetic paste, shampoo, etc.
factory corner
certificate
Packing and shipment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
