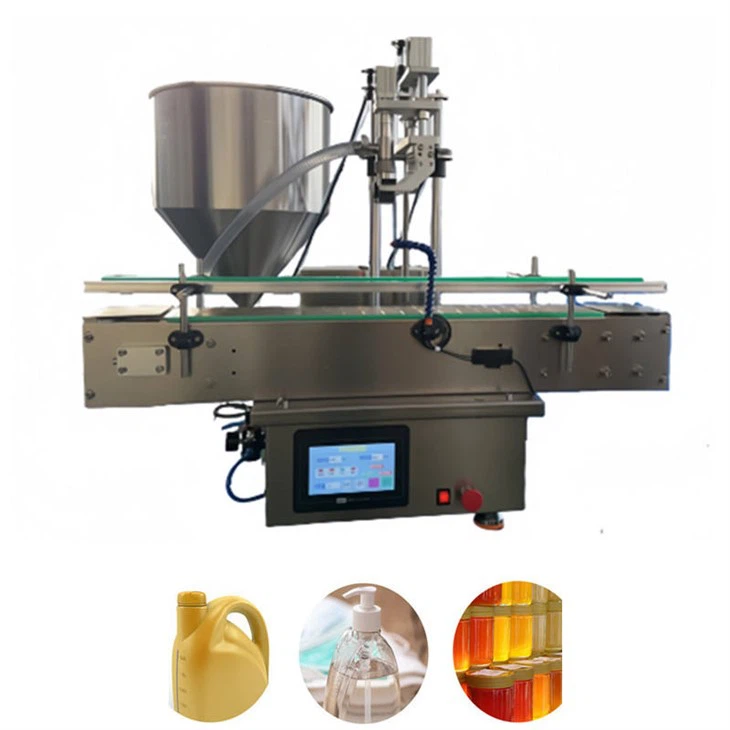

Paste Gear Filling Machine

Paste Gear Filling Machine adopts a new type of filling equipment which can measure the filling quantity by high precision and large flow pump rotation speed and pump working time. It is made of a new type of plastic material at the head and tail of the pump and is acid and alkali resistant. Corrosion-resistant, widely applicable, almost all can flow liquid can be filled, especially for oil,detergent, oil, beverages, acid and alkali, high corrosion of liquid filling. The filling device has the advantages of simple structure, convenient operation, lengthening the discharge nozzle, moving the leather pipe at will, filling capacity of 10ml-40000ml for 1 minute, and no limit on filling capacity by hand.







Paste Gear Filling Machine is widely used for filling kinds of liquid and oil, such as, juice, wine, water, liquid soap, liquid cosmetic, hand sanitizer, etc. This filling machine is widely used in the beverage industry, food,cosmetic, etc.









Power	750W
Filling speed	60L/min
Hopper capacity	40L
Operation mode	Automatic
Filling range	10-60000ml
Filling error	±0.5%
Driving mode	Servo motor
Machine Dimensions	110*58*95cm
Machine weight	90kg
Machine packaging size	115*65*115cm
Packing weight	100KG





Paste Gear Filling Machine

1. Automatic singlemouth filling.

2. Suitable for all kinds of products filling

3. can be used for cakes and mousse, jelly top decoration.

4. Used for filling various cakes and high viscosity pastes

5. Various discharge nozzles to meet different filling requirements



Product safety precautions:

To ensure production safety, pay attention to the following:
1.If overflow occurs at the injection nozzle, press the safety emergency stop switch to ensure the cleanliness of the workshop.
2. When disassembling and washing this machine, do not directly rinse the body with water.
3. The air circuit of this machine must not be plugged or unplugged arbitrarily.













All machines reach even remote destinations in good condition, having been professionally serviced. Our qualified technicians provide installation, commissioning and training, and also provide maintenance and advice.
