Small Box Carton Sealer

These carton box sealing machine is widely used in the fields of electrical domestic appliances, textiles, foodstuffs, general merchandise, medicine’s, chemical industry etc.

Send Inquiry

Fast Delievery
Quality Assurance
7*12 Customer Service

Product Introduction

Products Description

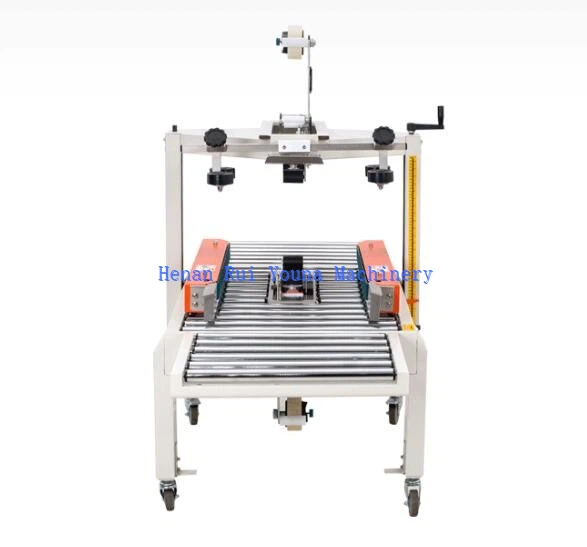

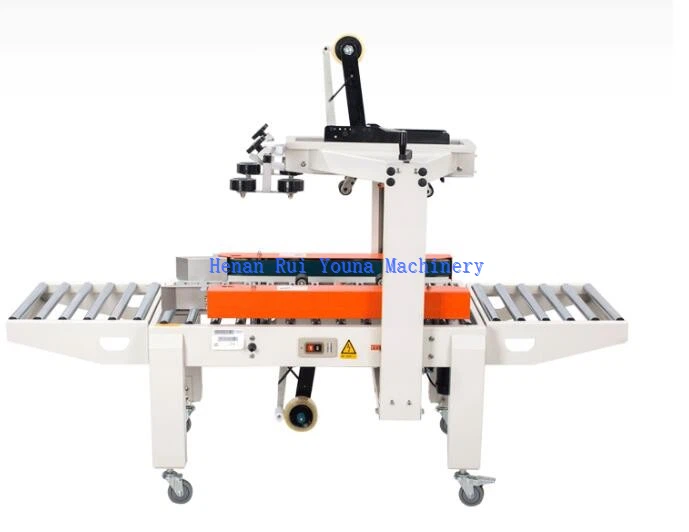

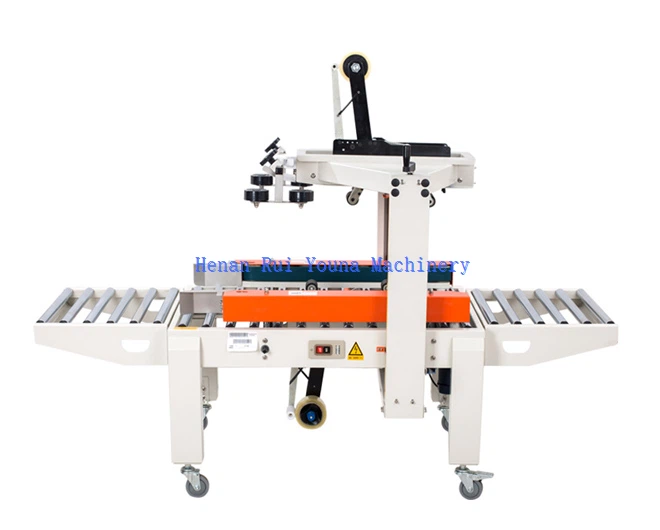

small box carton sealer

1. FXC5050X carton sealing machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line.

2. The machine is widely used in the fields of electrical, domestic, textiles, foodstuffs, general merchandise, medicine and chemical industries.

3. This type can be installed the printer.

4. Carton is transmitted by two side's conveyor belts.
5. Adjust sealing height and width by hand according to the size of carton, then put carton on worktable, and carton will be transmitted through and sealed with tape automatically at the same time.
6. This machine is designed for small cartons specially.

technical parameter

Model	FXC5050 small box carton sealer	FXC5050C small box carton sealer
Volt	220V 50HZ
Suitable tape	BOPP,PVC
Speed	About 1000/hour
Tape width	36, 48, 60
Power	250w
Max sealing weight	20kg
Max sealing size	500x500mm
Min sealing size	130x110mm	80X90mm
Convey way	Right&left	Right&left

Products features

1.Stable performance
Reliable quality, high sealing efficiency, strong applicability and long service life.

2.Flexible and lightweight
It is lightweight in size, with pulleys complementing each other, and the displacement is very flexible, making installation and debugging more convenient.

3.Box sealing movement
The adhesive tape adheres firmly to the surface of the carton for sealing, presenting a smooth and aesthetically pleasing effect
