if you want to set up a complete carton packing line.then kind let us know that.we will design and provide a best solution according to your all requirements.
Automatic Carton Opening And bottom sealing Machine
Suitable for carton sealing of the same specification at the same time; simple operation, convenient use, easy adjustment, fast unpacking speed, high efficiency, ruggedness, can be used stand-alone, and can also be used in conjunction with the packaging line after automation.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Automatic carton opening and bottom sealing machine introduction
1. Suitable for carton sealing of the same specification at the same time; simple operation, convenient use, easy adjustment, fast unpacking speed, high efficiency, ruggedness, can be used stand-alone, and can also be used in conjunction with the packaging line after automation.
2. the automatic carton opening and bottom sealing machine is applicable to various industries such as household appliances, textiles, food, daily necessities, pharmaceuticals, light industry, chemical industry, etc., and carton sealing;

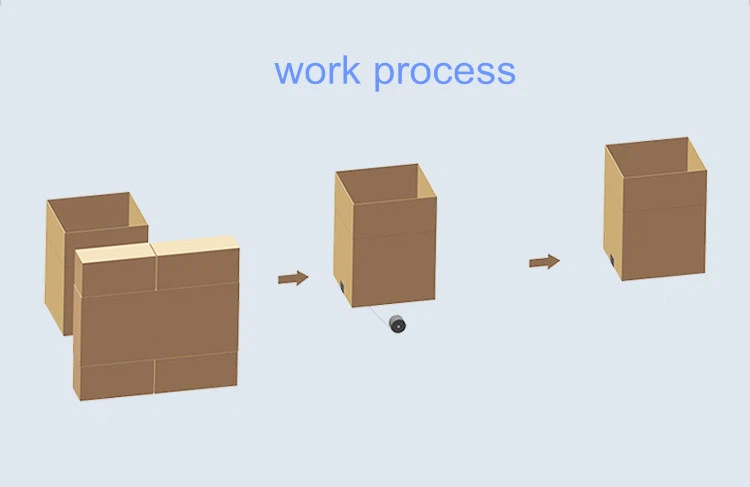

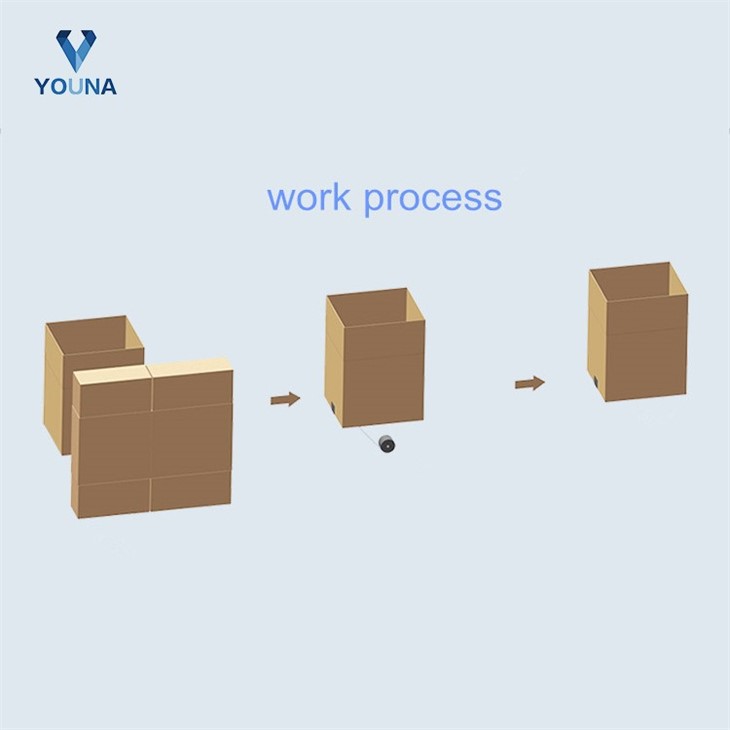

3. Automatically open the box, automatically fold the lower lid, and automatically seal the bottom of the carton. The machine adopts PLC + human-machine interface control. The bottom is not stopped. The bottom and the bottom are completed during transportation; at the same time, the whole process of suction box, molding, bottom and bottom sealing ;
4. the automatic carton opening and bottom sealing machine onvenient operation, simple maintenance, stable performance, is an indispensable assembly line equipment for automated scale production.
Model | DKX4540 automatic carton opening and bottom sealing machine |
Power supply | 220V 50/60HZ |
Power | 240w |
Table height | Min.H600 -650mm |
Air source | >500L/min、0.4~0.8Mpa |
Tape | W48, 60, 75mm |
Carton Size | L250~450mm/W150~400mm/H100~400mm |
Speed | 8-12 box/min |

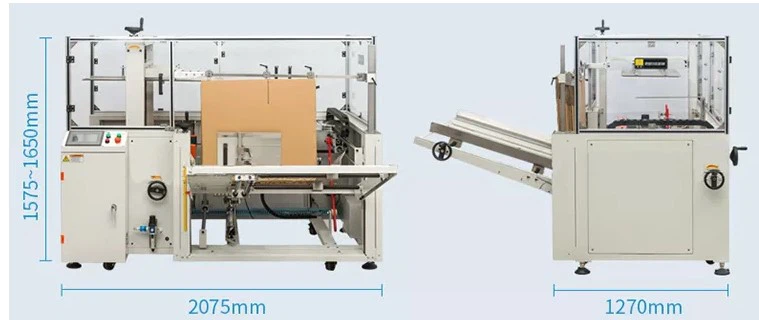

Dimension | L2000*W1900*H1450mm |
Machine weight | NW-400kg GW-550kg |
Case erector also known as ‘box makers’, are the ideal automation solution for companies looking to improve their operation efficiency, and guarantee consistency of box erection,
carton erector use suction pads to ‘grip’ the box, erect it, and then seal the bottom.
The automatic carton opening machine is mainly used when sealing and packaging carton either individually or as part of a production line depending on the unit required.
Could you print our company LOGO on the nameplate and package?
A:Yes, we can do that .
If l don't know what kind of the product I need, what should I do?
A:Just tell us your specific requirements and we will recommend the right machine for you.
Can you give me a discount?
A:There can be a discount,but it still depends on the number of machines you buy,and the discount is relatively large for the larger quantity.
