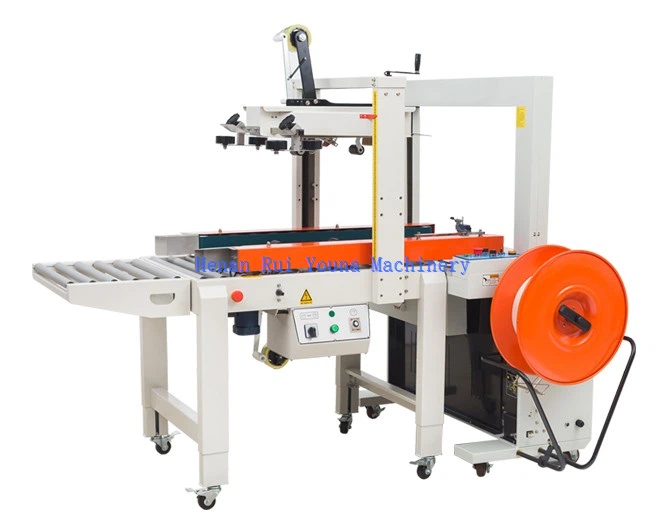

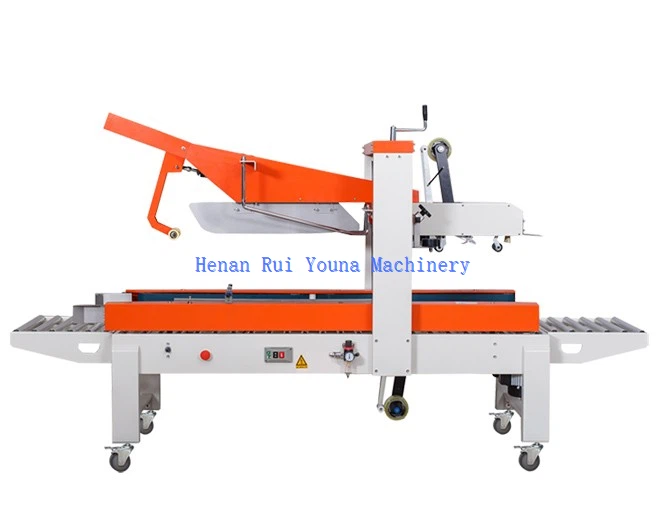

Automatic Carton Folding Sealing Strapping Machine
The machine is mainly used for the sealing and packing of cartons, which can be single-unit operation or also equipped into production line.
It is widely used in the fields of electrical domestic appliance, foodstuffs, general merchandise, medicine and chemical industry.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
automatic carton folding sealing strapping machine introduction
1.automatic carton folding sealing strapping machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line.
2.Conveyor belt is mounted in left & right side.
3.Carton is transmitted by two side's conveyor belts.
4.Adjust sealing height and width by hand according to the size of carton, then put carton on worktable, and carton will be transmitted through and sealed with tape automatically at the same time.
5.The Carton can be pscked by strapping tape, let the carton be stronger.

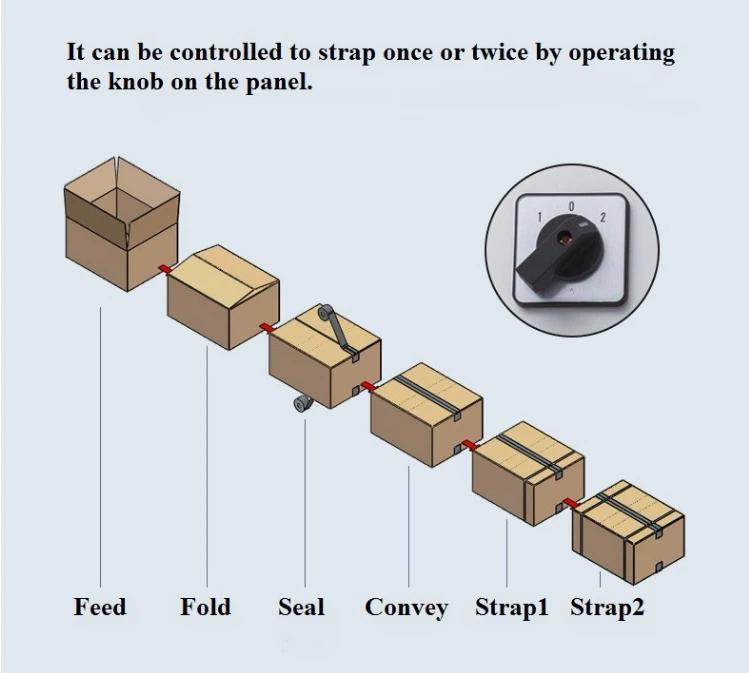

6.And the strapping machine can be controlled to strap once or twice by operating the knob on the panel.
Products parameter
|
Model |
FXJ5050Z automatic carton folding sealing strapping machine |
|
Volt |
AC200/50HZ |
|
Power |
260W |
|
Max packing size |
600x500x500mm |
|
Min packing size |
180x130x130mm |
|
Sealing speed |
18m/min |
|
Tape width |
48mm, 60mm, 76mm |
|
Machine size |

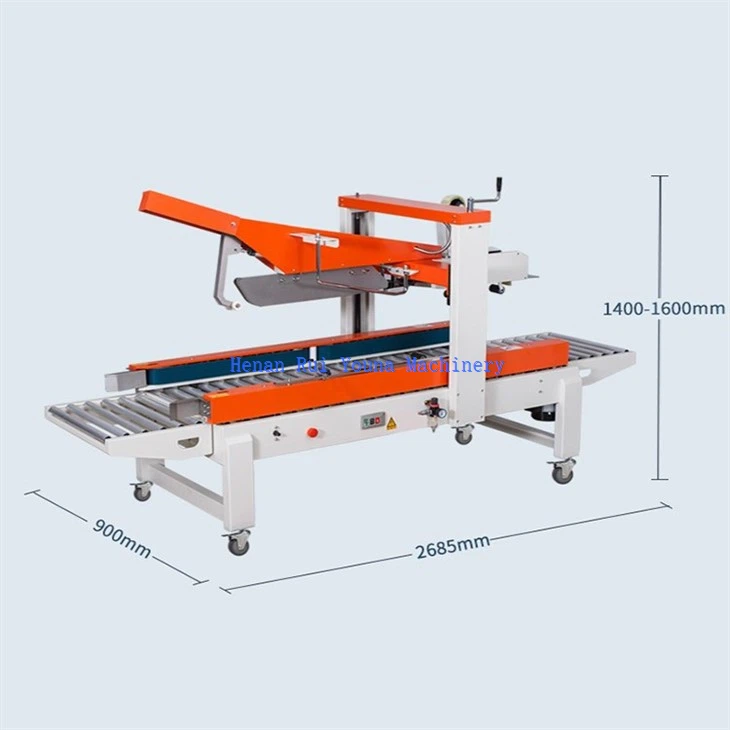

2685x900x(1400-1600)mm |
|
Weight |
180kg |

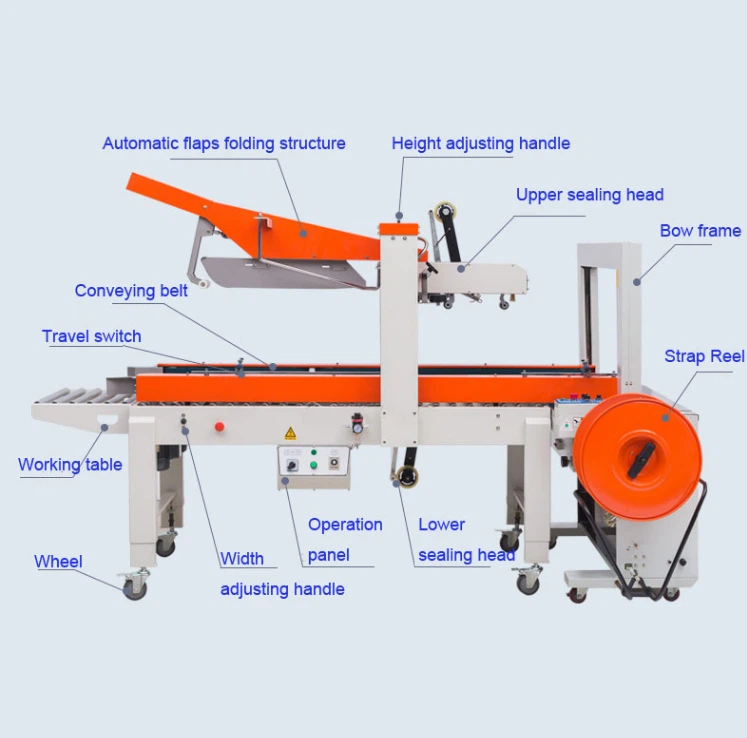

Products structure
Products features
The box sealing efficiency is high
The box sealing effect is good
Long service life
The material of the body has been thickened
The lid is folded and the box is sealed in one go
Factory direct sales with after-sales guarantee
Products effect
The automatic carton folding sealing strapping machine is mainly used when sealing and packaging carton either individually or as part of a production line depending on the unit required.

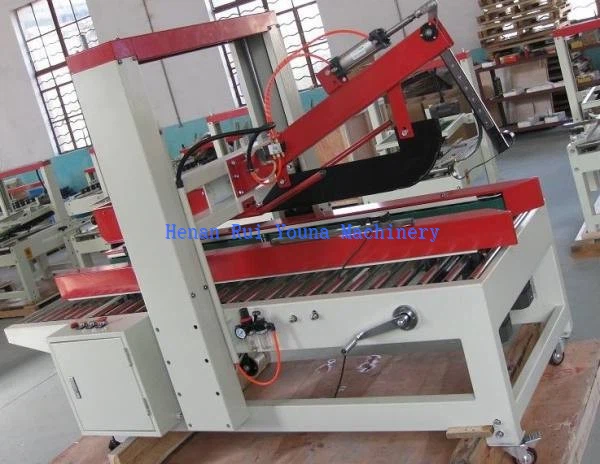

factory corner
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Packing Machinery,Wrapping Machine,Packing Line,Stacking Machine,Tipper
3. why should you buy from us not from other suppliers?
1-Professional Auto Packing Machinery Manufacturer since 2001
2-Many successful case with world famous enterprise
3-strong R&D ability and stable production capaicty
4-Overseas technical service available
