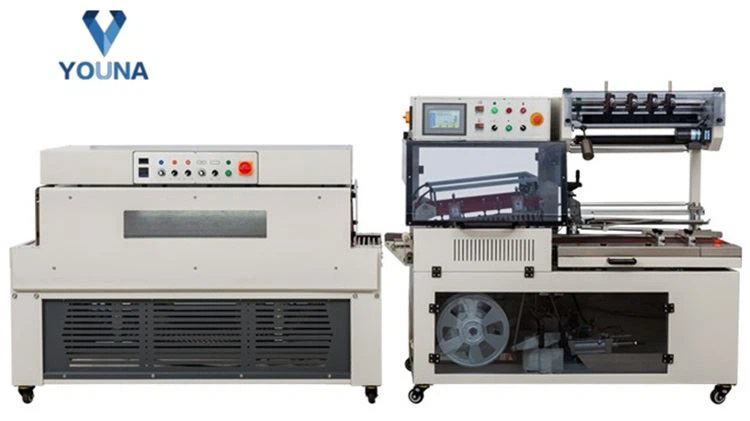

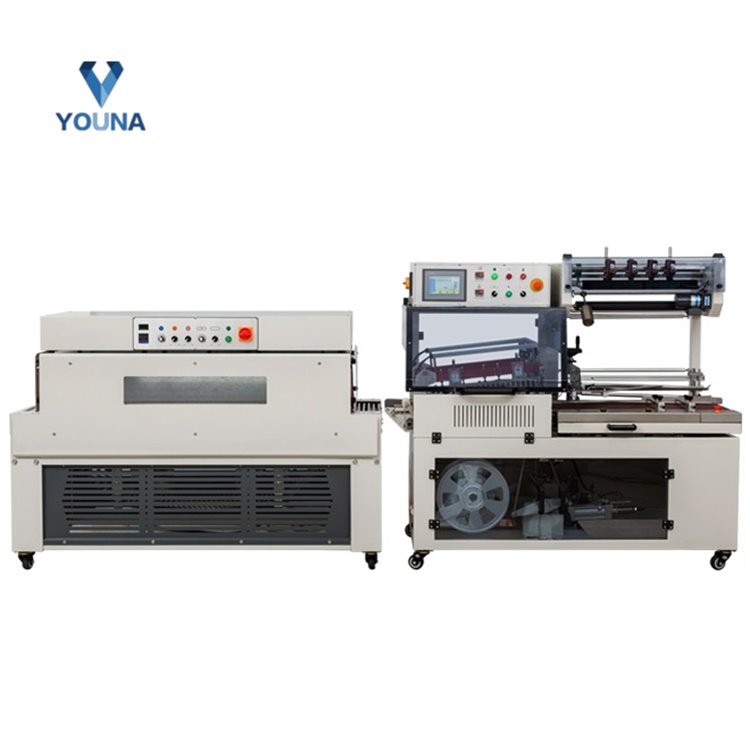

High Speed Automatic Box Shrink Wrap Machine
The high speed automatic box shrink wrap machine is controlled by OMron PLC, which is more convenient to operate. Man-machine interface, only need to input item length, height, the system automatically calculate the packing length, can store a variety of solutions, intelligent design, quick and easy to change the packing size.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
1. This machine is the upgrade from QL5545 l sealer with BS-D4520 shrink tunnel.
2. It is higher speed, can meet 35times/min.
3. The high speed automatic box shrink wrap machine is controlled by OMron PLC, which is more convenient to operate. Man-machine interface, only need to input item length, height, the system automatically calculate the packing length, can store a variety of solutions, intelligent design, quick and easy to change the packing size.
4. Code wheel detection belt running distance, before and after allowance more accurate, horizontal vertical photoelectric position without debugging, operating more simple.
Model | DQL5545G | DSC4525L |
Max. packing size(mm) | L+2H≤550,W+2H≤450,H≤130 | W450*H200mm |
Max. sealing size(L*W) | L550*W450 mm | / |
Power | 1.40KW | 11.70KW |
Capacity | 0-35 pcs/min | |
Power source | 220V 50/60HZ | 380V 50/60HZ |
Sealing Temperature | 160-240 degree centigrade depends on thickness of film and environment temperature | |
Film thickness | 0.015-0.10mm | |
Working Air-pressure | 5KG/cm2 | |
Film Material | POF PVC | |
Weight | 340 KG | 260 KG |
Machine size(L*W*H) | L1760*W940*H1580 mm | L1800*W703*H1260 mm |
Q: Which field are your products applied to?
A: Our products are mainly used in food,medicine,cosmetic, cleaning,chemical and other processing and packaging industries.
Q: Can you customize for clients?
A: Yes, we can customize it according to your requirement.
Q: Can you give me a discount?
A: There can be a discount,but it still depends on the number of machines you buy,and the discount is relatively large for the larger quantity.
Q: What’s your term of the delivery?
A: We accept EXW, FCA, CFR, CIF, CIF, DAP DDP.
Q: What is your term of payment?
A: we accept TT Western Union, L/C.
Shipping
Shipping: By air, sea, or express
Production time: 1-30 days according to different machines and quantity.
Delivery time: By air, by express, often 4-7 days, if sent by sea, need 15-50 days according to different countries and ports.
Our Services
1. Good knowledge on different market can meet special requirements.

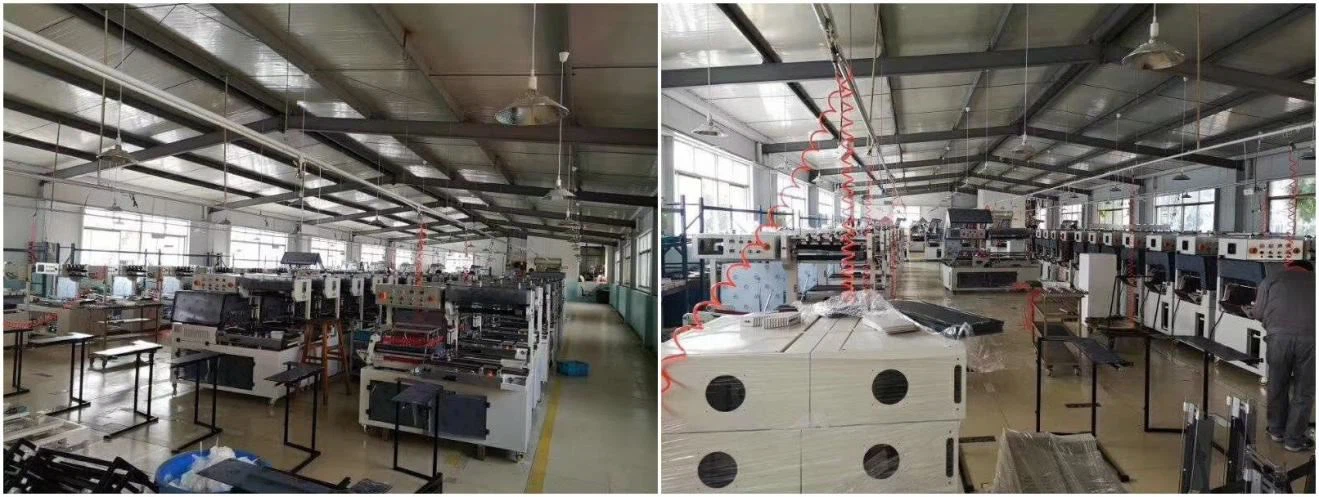

2. Real manufacturer with our own factory located in zhengzhou and wenzhou.
3. Strong professional technical team ensure to produce the top quality products.
4. Rich experience on packing machinery.
5. 6*12 hour service time per week.
6. Do OEM and customization according different packing demand.
7. All machine is 12 months warranty time.
