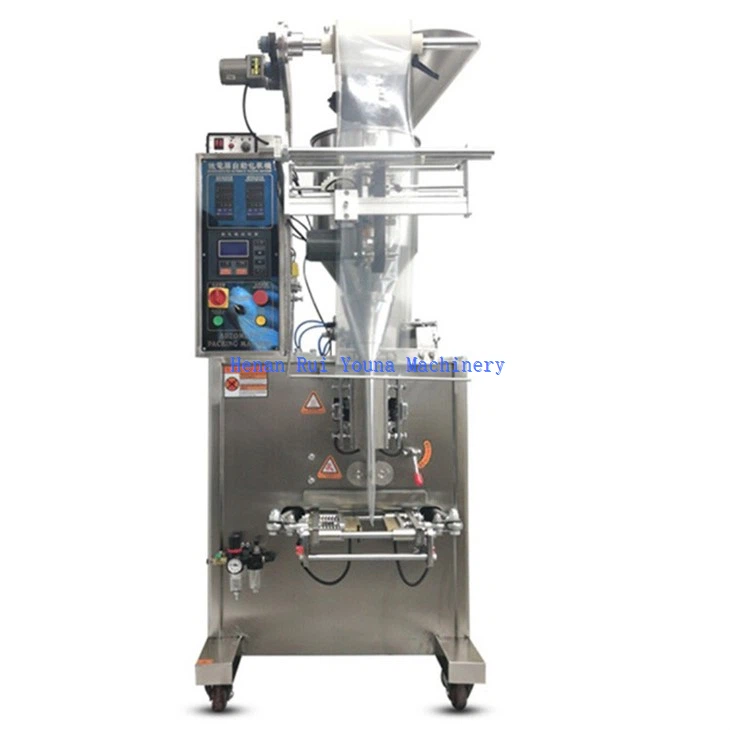

Tomato Sauce Pouch Filling Machine
tomato sauce pouch filling machine system takes colorful touch screen to show mechanical operation information and parameters, e.g. bag length, packaging speed and packaging quantity, etc. All visible information can be operated by touching.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
tomato sauce pouch filling machine
1.Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
2.Computer PLC control and automatic alarming function.
3. English and Chinese human-machine operation interface, it is easy to operate, a high degree of automation.
4.High sensitivity photoelectric eye color tracing, more accuracy.
5. Famous brand components, ensure the quality and durability of the machine.
Technical parameter
Technical parameter
|
Item |
tomato sauce pouch filling machine |
|
Voltage |
220V |
|
Bag style |
Back seal |
|
Packing speed |
30-75 bag/min |
|
Bag length |
30-150mm |
|
Bag width |
25-135mm (need to replace the Former) |
|
Filling range |
10-50ml, 50-150ml 100-300ml(customized) |
|
Power |
1.6kw |
|
Weight |
350kg |
|
Dimensions |
1120X780X1720mm |
Products structure
Products effect
tomato sauce pouch filling machine is suitable for filling condiment oil, bechamel ,jam,shampoo etc, with very easy and convenient
operation. It integrates the functions such as filling, sealing,printing date and cutting the redundant tail etc.
know about us
certificate
packing and shipment
Packing: Customer required packing is available
Shipping: by air, sea, or express
