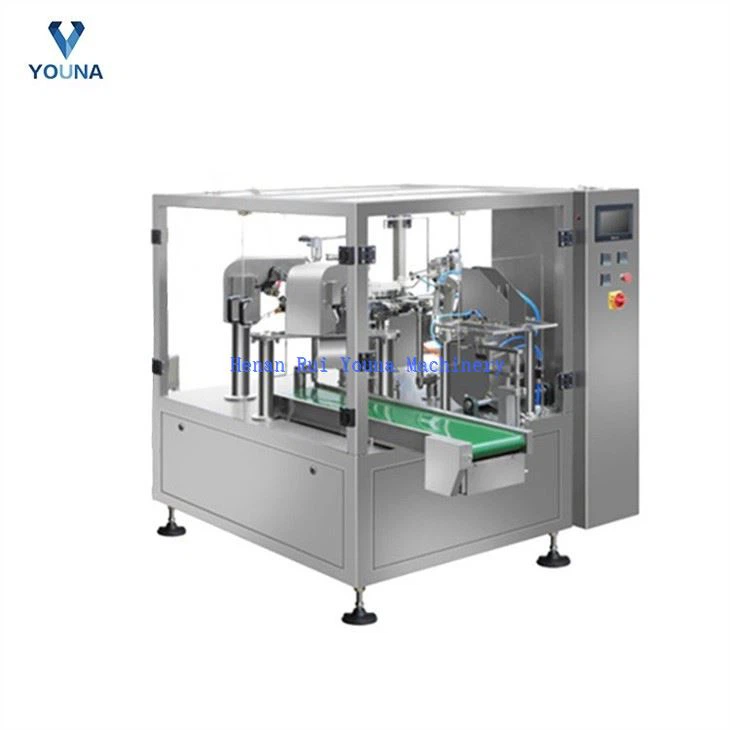

Automatic Liquid Milk Bag Packing Machine
The automatic liquid milk bag packing machine is suitable for filling soy sauce, vinegar, juice, milk and other liquids, using 0.08 mm polyethylene film, automatic to compete the molding bag, quantitative filling, ink printing, sealing and cutting off process, and film using UV disinfection before packaged, in line with the requirements of food hygiene.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
How about the Machine Structure ?
I. Main Rotary Unit (8-Station Turntable)
The turntable serves as the machine's core, featuring multiple mechanical grippers that rotate cyclically, with each station performing a specific process step. The eight stations handle the following: bag pickup → coding → bag opening → inspection → filling → air evacuation → pre-sealing → final sealing and discharge. It utilizes a cam-driven mechanical transmission system, ensuring stable operation and a low failure rate.

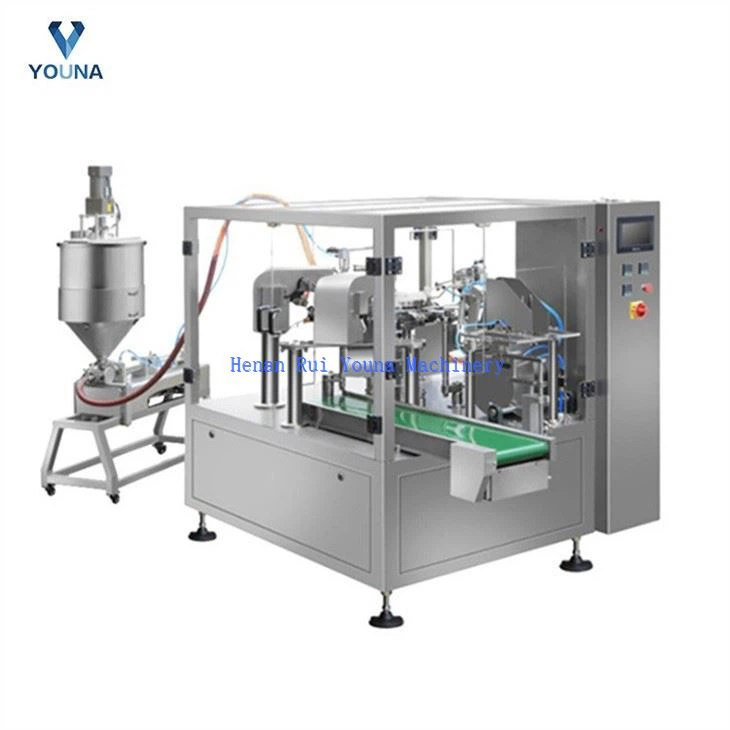

II. External Paste/Liquid Transfer System (Left-side Hopper + Pump Unit)
Consists of a stainless steel mixing hopper and a rotor pump, connected to the main unit's filling inlet via a flexible hose. The mixer prevents sauce sedimentation, while the rotor pump regulates output for precise, quantitative filling. It supports high-viscosity materials such as hot pot base, broad bean paste, laundry detergent, and honey. The system allows for quick disassembly and cleaning, complying with food hygiene standards.
III. Electrical and Touch Control System (Right-side Control Cabinet)
IV. Features PLC control with a color touchscreen; all parameters-including bag length, station dwell time, filling volume, and sealing temperature-are adjustable on-screen. It stores dozens of product recipes for instant recall during product changes and provides automatic fault alarms.
V. Sealing and Discharge Mechanism
Equipped with multiple heat-sealing stations to ensure airtight seals for zipper bags and stand-up pouches; finished products are discharged via an eco-friendly conveyor belt. All product-contact parts are made of 304 stainless steel, meeting food-grade production requirements.
where is the machine used for?
✅ Food Industry: Sauces, hot pot soup bases, nuts, cereal snacks (samples include pecans, cereal, and crispy rice snacks)
✅ Household & Personal Care Industry: Stand-up pouches for laundry detergent, detergents (sample: laundry detergent pouch)
✅ Agricultural Produce & Seasoning Processing Plants
