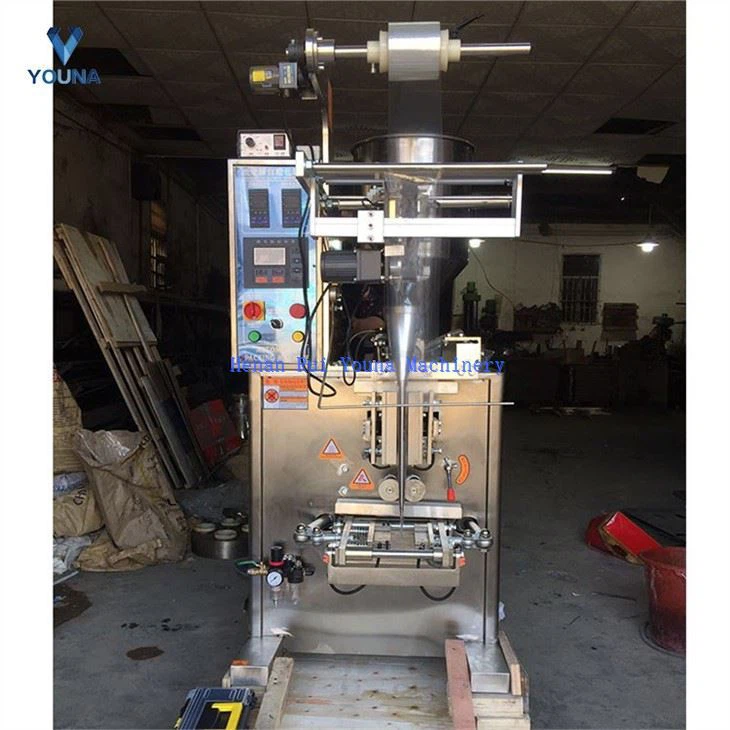

Automatic Pepper Sauce Packing Machinery
Function: This automatic pepper sauce packing machinery can do bag making, filling, counting, sealing, cutting a series of actions automatically. Stepless speed regulation, speed regulation process without stopping. Adjust weight without stop.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
automatic pepper sauce packing machinery Introduction
1.This automatic pepper sauce packing machinery can finish these work automatically: piston pump measuring--making bag--coding (option)--filling--gas injection(option)--sealing--counting.
2.PLC control system, photoelectric tracking, which improve the control precision, reliability and intelligence at the maximum limit.
3.This automatic pepper sauce packing machinery has fault display system, easy to operate and maintain.
4.Make punching blade after customer's special request.
5.Optional:mixing tank, pump for lifting liquid into top hopper, air compressor, exit conveyor, etc
technical parameter
This automatic pepper sauce packing machinery Technical parameter
|
Model |
YN320 |
TH420 |
|
Voltage |
220V |
220V |
|
Bag style |
Back seal |
Back seal |
|
Packing speed |
30-75 bag/min |
20-60bag/min |
|
Bag length |
30-150mm |
50-280mm |
|
Bag width |
25-135mm (need to replace the Former) |
80-190mm (Need to replace the Former) |
|
Filling range |
8-100ml, 80-300ml (customized) |
80-300ml, 100-500ml (customized) |
|
Power |
1.6kw |
2.2kw |
|
Weight |
350kg |
400kg |
|
Dimensions |
1120X780X1720mm |
1120X780X1720mm |

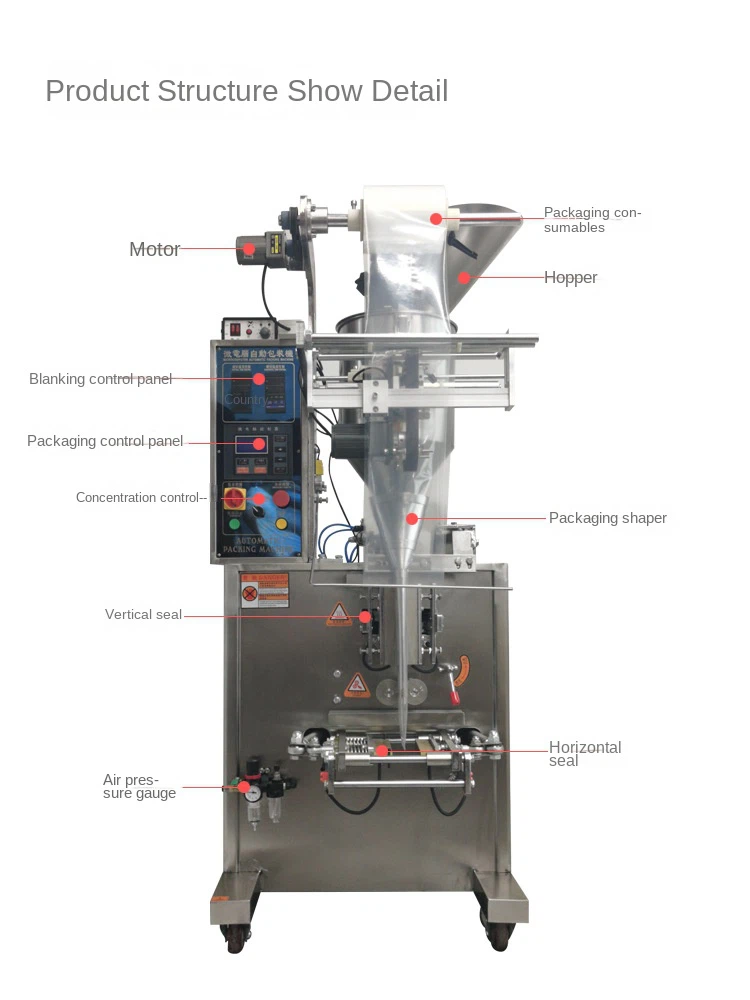

Products structure
Products effect
Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.
factory corner
certificate
FAQ
Q: Are you a factory or trading company?
A: We are a factory specialized in daily cosmetic, foods, beverage, Pharmastic Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q: How does your factory do regarding quality control?
A: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
Q: What's the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn't caused by improperly operation then we would offer the new parts for free.
Q: Would you have a discount if l have a large order?
A: Yes,we will offer a discount of varying degrees according to the quantity of the order.
