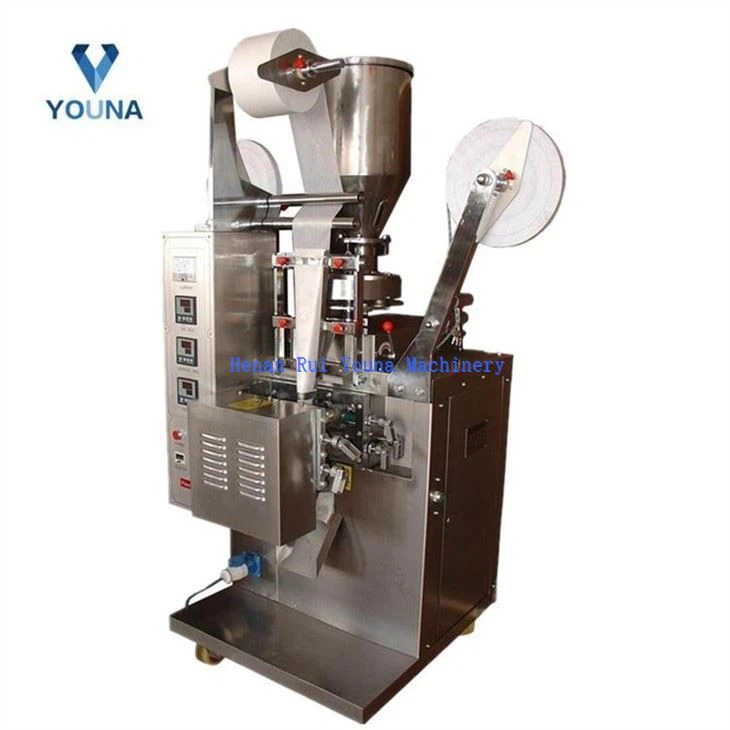

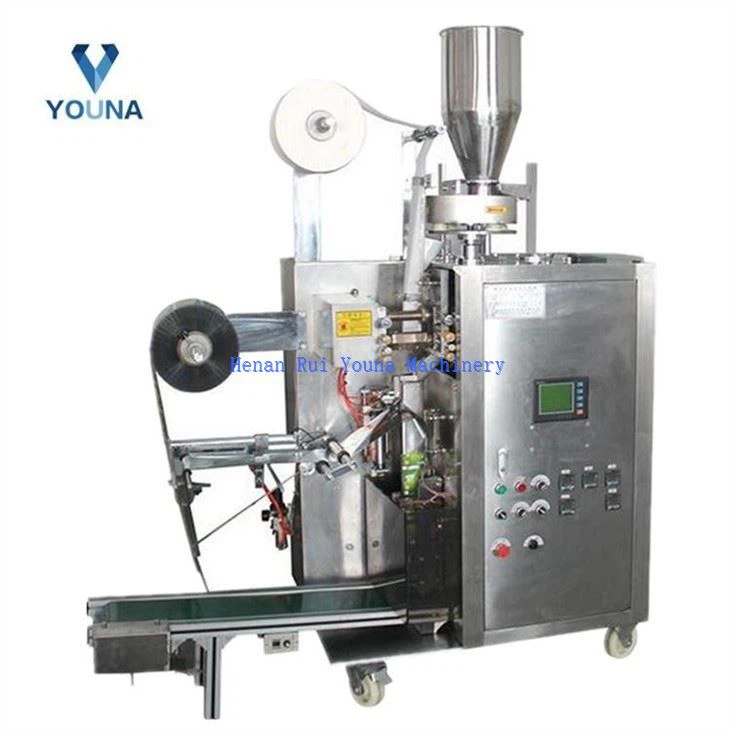

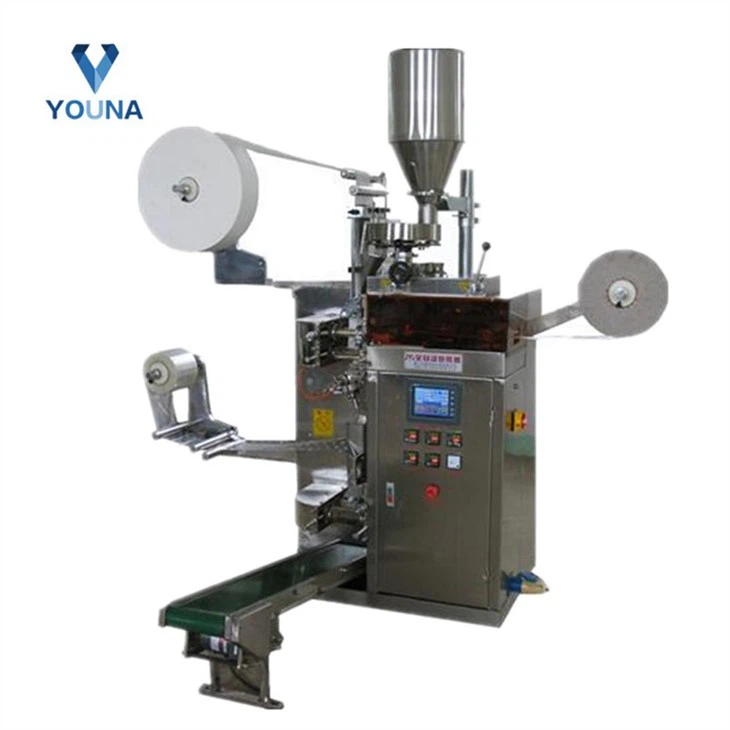

Automatc Diet Tea Sachet Packing Machine

automatc diet tea sachet packing machine:

* Envelope is controlled by stepping motor, accurate bags size and positioning accurately.
* PID adjust temperature controller,
* The whole machine is controlled by PLC, touch screen, very easy to operate.
* All parts contact with materials adopt SS304, up to GMP standard.
* Some of cylinders adopt imported brand, which can ensure working accurate and stable.
* Can equip with printers, flat cutter or easy-opening etc.
* Bag size can be changed by different formers.

automatc diet tea sachet packing machine technical parameter

Model	YNJX-88	YNJX-88A
Pack way	Outer bag inner bag without string	Outer bag inner bag with string
Packing range	3-15ml	3-15ml
Packing speed	30-60 bag/min	30-40 bag/min
Inner bag size	W: 50-80mm L: 50-70mm	W: 50-80mm L: 50-70mm
Outer bag size	W: 70-90mm L: 80-120mm	W: 70-90mm L: 80-120mm
Tag size	No	W: 40-55mm L: 20-40mm
String	No	155mm
Volt	220V/50HZ	220V/50HZ
Power	3.5KW	3.5KW
Air consumption	0.2-0.5Mpa	0.2-0.5Mpa
Air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Machine size	1000*950*2000mm	1000*950*2000mm
Weight	500KG	500KG
