Honey Filling Packing Machine

1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

Send Inquiry

Fast Delievery
Quality Assurance
7*12 Customer Service

Product Introduction

Products Description

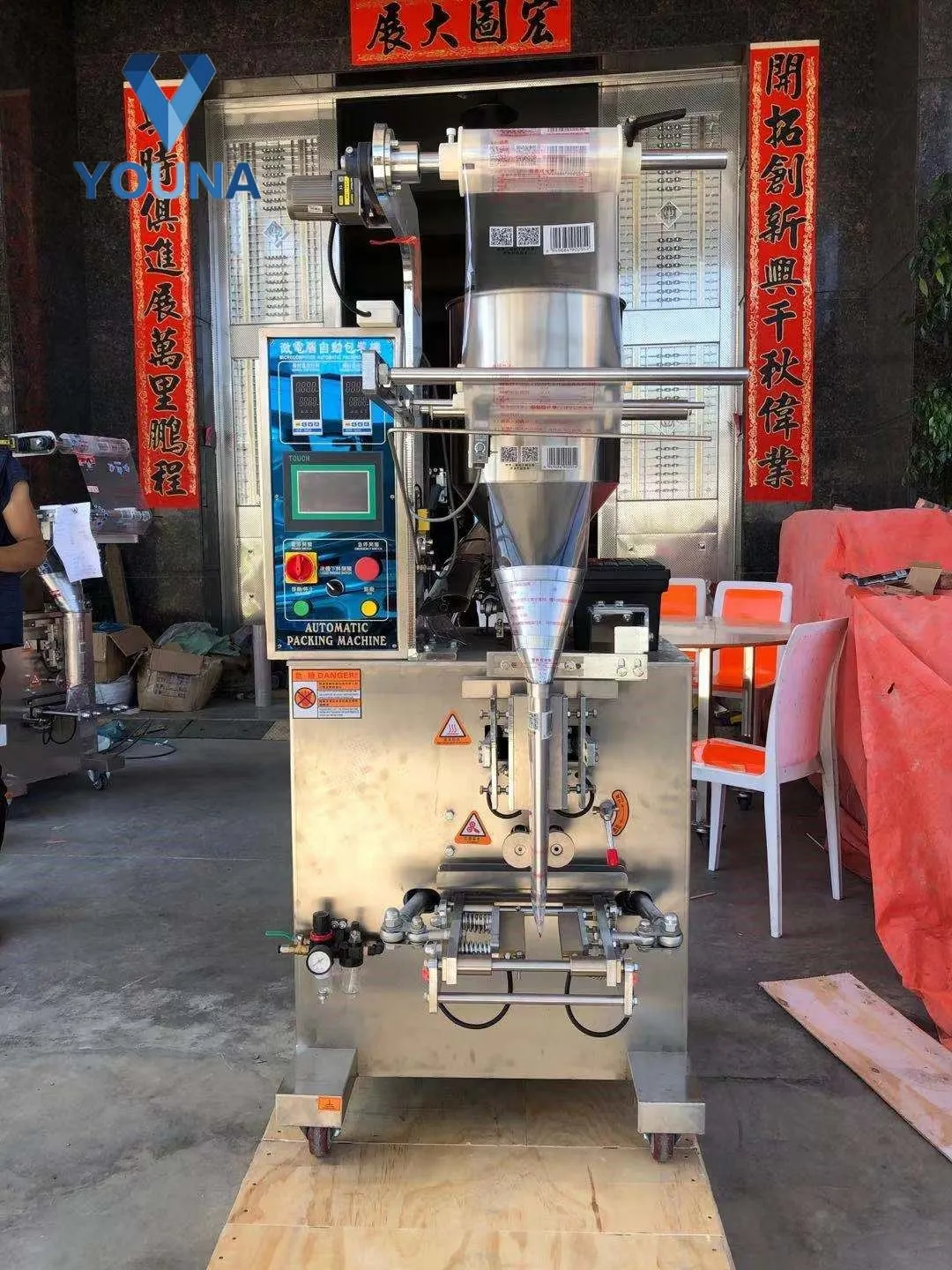

image003(1)

honey filling packing machine Introduction

this honey filling packing machine is customized for differernt kinds of liquid products like sauce,oil, honey, jam, water, juice, ketchup, mayonnaise, salad dressing, chemical liquid, medical liquid, ect. auto metering,
filling, sealing andpacking into roll film bags

technical parameter

Technical parameter

Model	TH320	TH420
Voltage	220V	220V
Bag style	3 side seal	Back seal
Packing speed	20-60 bag/min	20-60bag/min
Bag length	30-150mm	50-280mm
Bag width	25-145mm(Need to replace the Former)	80-190mm(Need to replace the Former)
Filling range	0.5-3ml,3-10ml,10-60ml (customized)	80-300ml, 100-500ml (customized)
Power	1.6kw	2.2kw
Weight	350kg	400kg
Dimensions	1120X780X1720mm	1120X780X1720mm

Products effect

honey filling packing machine

1.Compact size and movable for limited space.

2.With HMI and customized PLC system for easy parameter setting.
3.Simple basic structure,easy for daily maintenance.
4.Fully automatic process of filling,metering,bag making and sealing.
5.With machanical metering pump for viscous liquid filling.
6.Machine can start work without installation.
