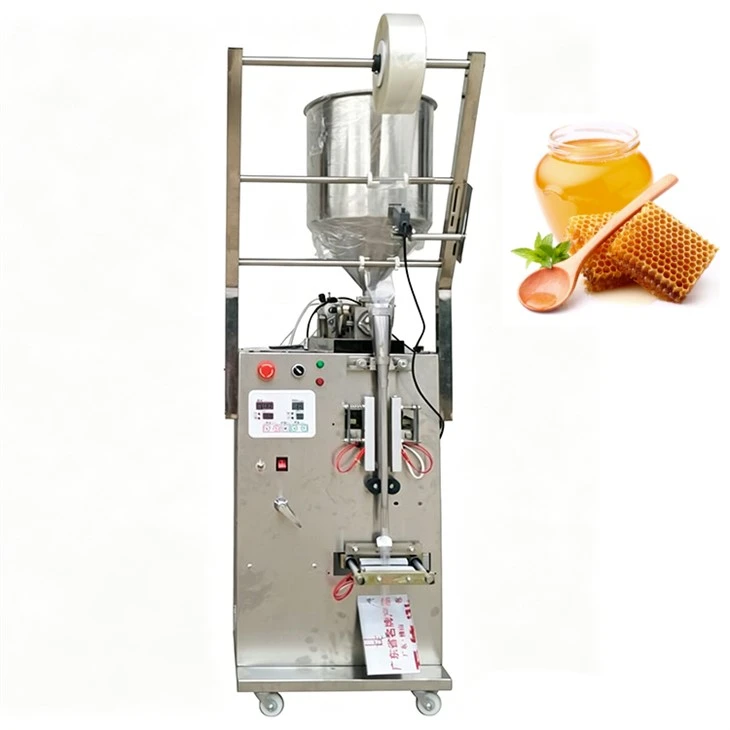

Automatic Honey Filling Sealing Machine
1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
automatic honey filling sealing machine Introduction
1. This machine can finish : forming bag--measuring--material filling-sealing-counting-date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.
This automatic honey filling sealing machine is suitable for filling condiment oil, bechamel , jam, shampoo etc, with very easy and convenient operation. It integrates the functions such as filling, sealing, printing date and cutting the redundant tail etc.
technical parameter
Technical parameter
|
Model |
TH320 |
TH420 |
|
Voltage |
220V |
220V |
|
Bag style |
3 side seal |
Back seal |
|
Packing speed |
20-60 bag/min |
20-60bag/min |
|
Bag length |
30-150mm |
50-280mm |
|
Bag width |
25-145mm(Need to replace the Former) |
80-190mm(Need to replace the Former) |
|
Filling range |
0.5-3ml,3-10ml,10-60ml (customized) |
80-300ml, 100-500ml (customized) |
|
Power |
1.6kw |
2.2kw |
|
Weight |
350kg |
400kg |
|
Dimensions |
1120X780X1720mm |
1120X780X1720mm |
Products effect
This automatic honey filling sealing machine is suitable for automatic packaging of liquid of foods,medicine and chemicals,such as pesticide,shampoo,body foam bath lotion,facial cream,ingredient oil,fruit sauce,tomato ketchup and honey etc.
factory corner
certificate
packing and shipment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
Q: How long is your delivery time?
A: small quantity with in 1-7 days, big quantity within 10-30 days.
Q: What is your term of payment?
A: we accept TT Western Union, L/C.
Q: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Q: How to solve the equipment trouble during using ?
A: If you have any problems,please let us know and we will help you find a way to solve the problem as soon as possible.
Q: Can you provide drawings and technical data?
A: Yes, can provide drawings and technical data.
Q: Do you offer OEM service and can you produce as our drawings?
A: Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing.
