Automatic Seed Filling Machine

Send Inquiry

Fast Delievery
Quality Assurance
7*12 Customer Service

Product Introduction

WPS(1)

Products Description

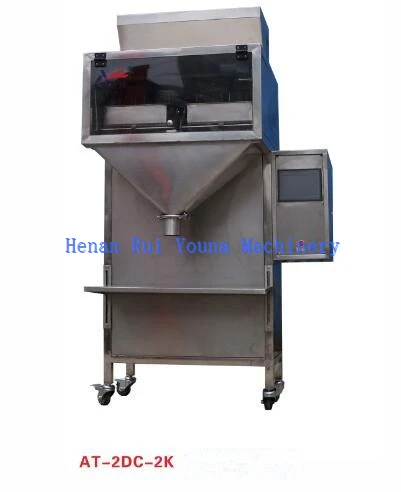

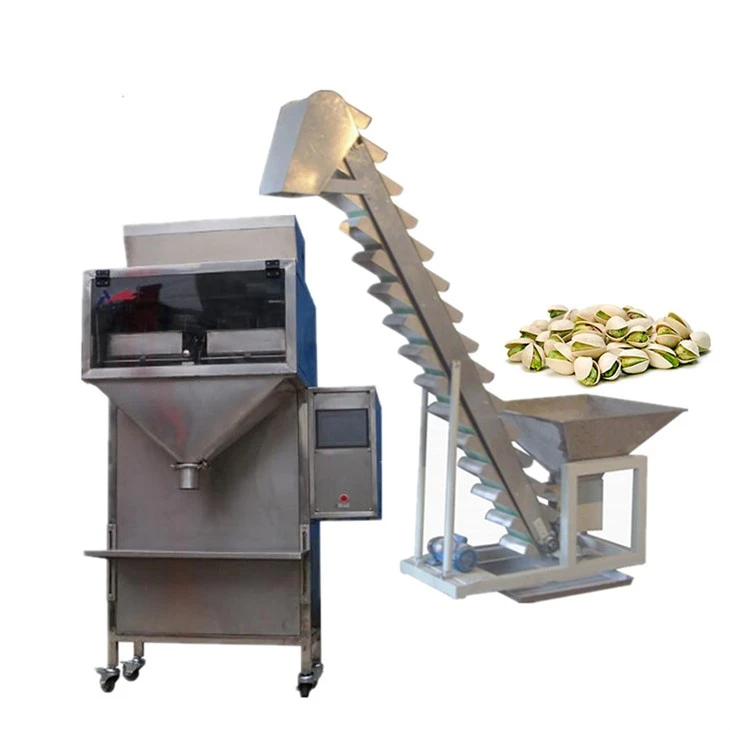

Automatic Seed Filling Machine

1. PLC control, easy to operate

2. High-precision electronic scale weighing, high precision

3. All stainless steel structure, easy to clean and corrosion resistant

4. Electronic screen or Chinese LCD touch screen for users to choose

5. Each scale is a two-stage feeding method, with high speed and high precision

technical parameter

Automatic Seed Filling Machine

Model	YN-2DC-2K	YN-2DC-6K	YN-4DC-2K	YN-4DC-6K
Packing range	30-2000g	500-6000g	30-2000g	500-6000g
Packing error	±0.2-0.5%
Packing speed	0-30bag/min	0-30bag/min	0-50bag/min	0-60bag/min
Volt/power	AC220V/500W	AC220V/500W	AC220V/1000W	AC220V/1500W
Machine size	100x65x190cm	150x80x230cm	150x80x230cm	200x80x250cm

application

Automatic Seed Filling Machine is mainly suitable for quantitative packaging of pellts, granular powder mixed, strip, block, and other materials. Such as: quantitative filling and packaging of granular materials such as pet feed, fertilizer,wood pellets, pellet sawdust, premix, washing powder, snack food, seeds, grain, hardware and so on.

features

Automatic Seed Filling Machine

1: The multi-stage feeding and feeding mechanism is adopted, and the weighing range is wide, which can ensure the speed and accuracy of the maximum and minimum weighing;

2: The weighing control system is designed according to the requirements of IP54 (dustproof and waterproof);

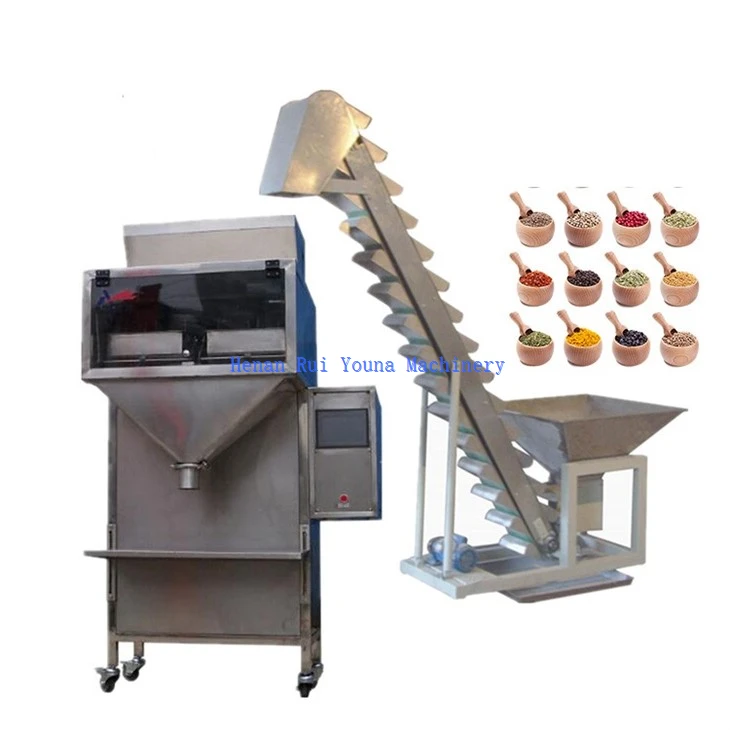

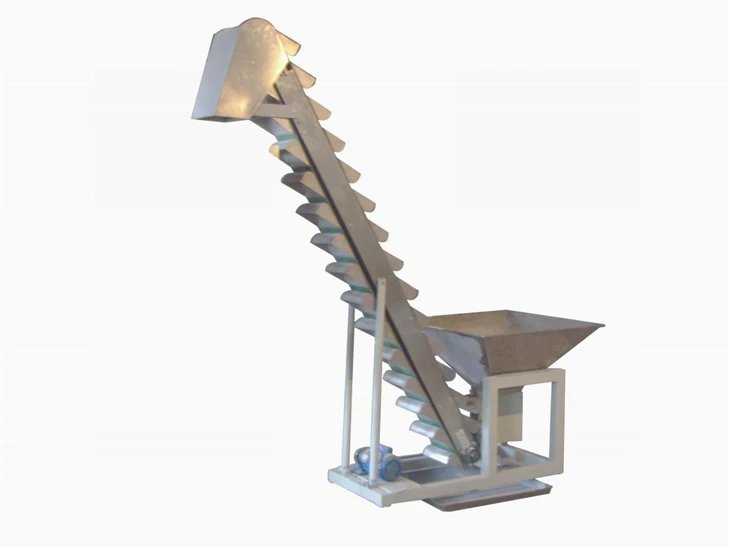

3: The machine can be combined with automatic feeding machine, conveyor, sewing machine and automatic control box to form a packaging unit;

4: Double buckets are used for weighing and measuring in turn, which is fast.
