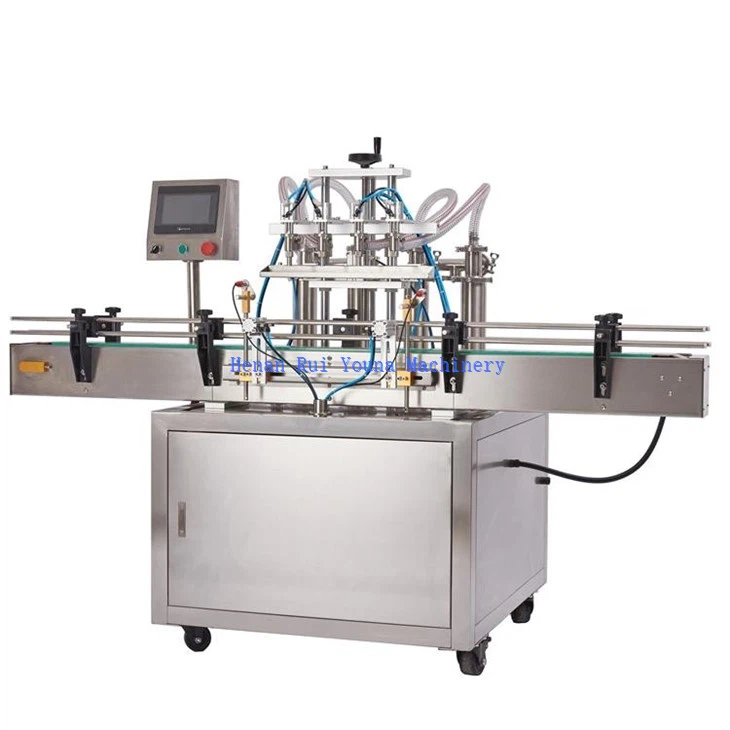

Automatic Bottle Filler
It adpots SMC pneumatic components from Japan or AIRTAC pneumatic components from Taiwan, delta programmable PLC controller from Taiwan, weinview touch screen from Taiwan, sick photoelectronic switch from Germany, Panasonic photoelectric switch from Japan. The excellent quality components ensure their excellent quality and long-term and stable performance
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
This automatic bottle filler is with larger air cylinder which can help to fill liquid faster.This machine is easy to operate and each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.

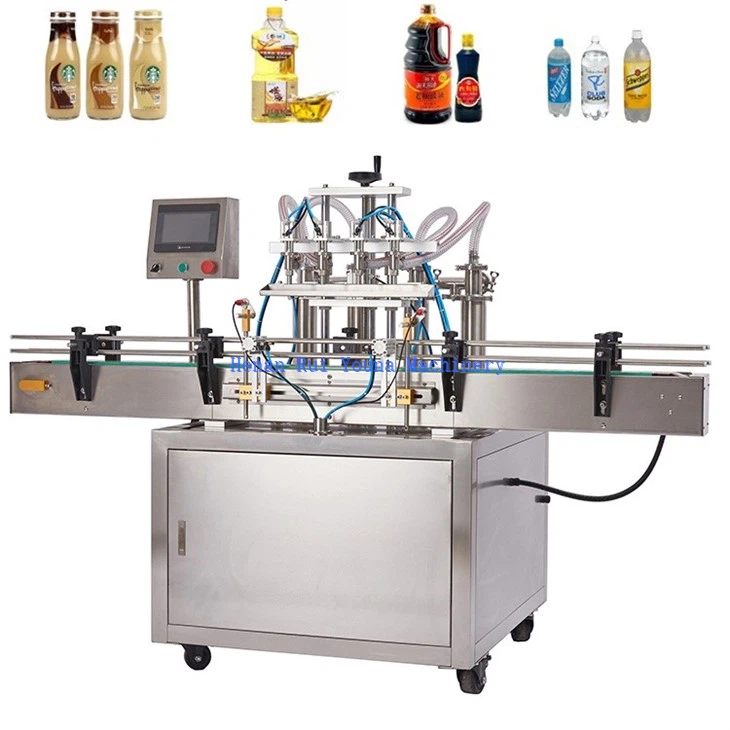

This automatic bottle filler suitable for beverage, juice, oil, liquid condiment, cosmetic hair care products, detergent,
lubricating oil, pesticide and other fluid material quantitative filling, not restricted by the bottle type.
|
Machine Model
|
YNYT-4 automatic bottle filler |
|||
|
Voltage
|
220V/110V 50-60Hz
|
|||
|
Power
|
About 200W
|
|||
|
Filling Range
|
100-1000ml(Can be customized)
|
|||
|
Filling Speed
|
About 30-70 bottles/min
(depending on bottle size and filling material)
|
|||
|
Filling Error
|
About±0.5%
|
|||
|
Air Pressure
|
0.5-0.8Mpa
|
|||
|
Conveyor Belt Size
|
About 114*2000mm(W*L)
|
|||
|
Machine Weight
|
About 200kg
|
|||
|
Package Size
|
About 2070*800*1670mm
|
|||
|
Package Weight
|
250KG
|
|||
1.Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations; The diameter of the filling nozzle optional within 3mm-12mm;

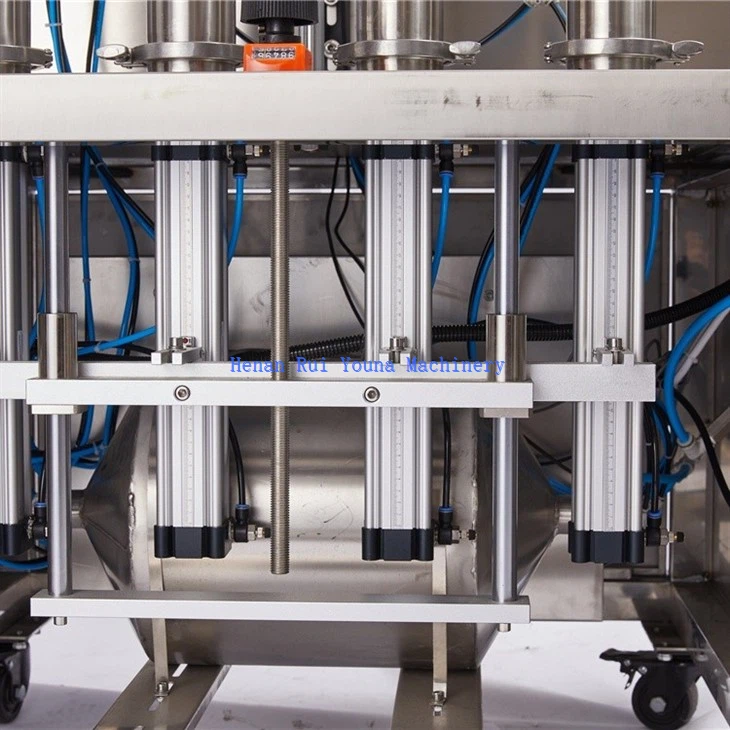

2.Piston type filling, can be operated by foot pedal or by automatic timer, could transfer between semi-automatic and automatic;
3.Use silica gel O-ring(cam bear 200 Celsius degree), comply with the food safety; Can optional silica gel ring or rubber sealing ring, rubber sealing ring used for anti-corrosion produce;
4.One head with one cylinders, filling head can optional single head, two head;
5.Automatic bottle filler can optional the machine model: 10-100ml 30-300ml 50-500ml 100-1000ml 250-2500ml 500-5000ml;
We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material and part checked once it arrive our factory.
2.All pieces and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
5. also accept your Inspection company do inspection before shipping
Henan Rui Youna Machinery Co., Ltd. is an efficiency and technology enterprise located in Henan, China. We are specializes in producing of packaging machinery and food machinery: The main products are: automatic packing machine, semi automatic packing machine, Automatic Liquid Filling Machine, capping machine, labeling machine, sealing machine, shrink wrapping machine, vacuum machine, carton sealing machine and automatic production line.
The product serves many industries including beverage, cosmetics, pharmaceutical, food. daily necessities, chemical. Owing to the high quality, beautiful appearance, good service and reasonable price, our machine are very popular in domestic and abroad. The export business is related to North America, Europe, Africa, South America, Southeast Asia and Middle East over 100 countries.
We continually concentrate our efforts on providing excellent quality product and the first-class service. We sincerely welcome customers from both at home and abroad to cooperate with us to develop rewarding business partnerships.
