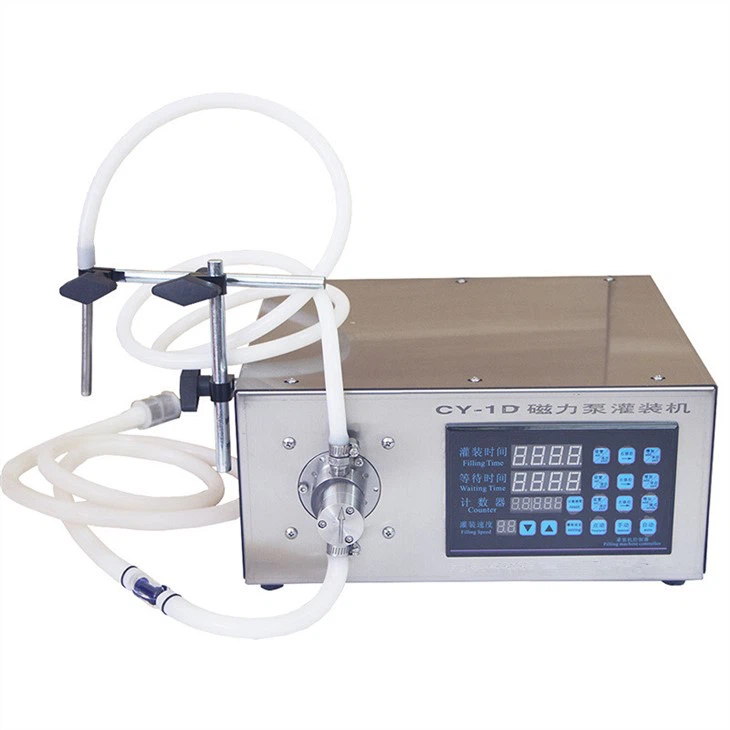

Magnetic Pump Small Bottle Filling Machine
This machine adopts high precision miniature magnetic pump, motor speed and pump working time to determine the filling volume of the new type of filling equipment, pump head for 316L manufacturing, acid and alkali resistance, corrosion resistance
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
1. Magnetic Pump Small Bottle Filling Machine adopts the world brand frequency conversion speed regulator, equipped with imported high-precision multi-turn potentiometer and lockable dial, so that the flow adjustment is stable and accurate, and the negative deviation of the error is less than 0.5%, and the positive deviation is less than 1.5%.
2. The magnetic gear stainless steel pump imported from Japan has reliable quality and long service life;
3. Stainless steel chassis, durable;
4. Small size and easy operation;
5. Easy to clean and detoxify;
6. Full-featured, both automatic and manual. It can be equipped to work on the assembly line;
7. Magnetic Pump Small Bottle Filling Machine can be equipped with multiple filling heads. The commonly used models are: single pump machine, double pump machine and four pump machine;
voltage： | 220V 50HZ/60HZ （110V Customizable） | |
power： | Single（90w） | Double（180w） |
Filling range： | 5ml — 4500ml | 5ml — 4500ml |
Filling accuracy： | ±1% | ±1% |
Maximum flow： | 4.5L/min | 4.5L/min |
control mode： | Inching, manual, automatic | Manual, automatic |
Cooling way： | Air cooling | Air cooling |
Size： | 410*300*210mm（Single） | 500*300*210mm（Double） |
weight： | 10KG（Single） | 15kg（Double） |
the Magnetic Pump Small Bottle Filling Machine is widely used, almost all liquid can flow can be filled, especially suitable for oil, washing liquid, acid alkali liquid, high corrosion liquid filling.It has simple structure and convenient operation.
Products Display
