Applications of vertical packaging machines in daily life
Jan 29, 2026
Applications of vertical packaging machines in daily life

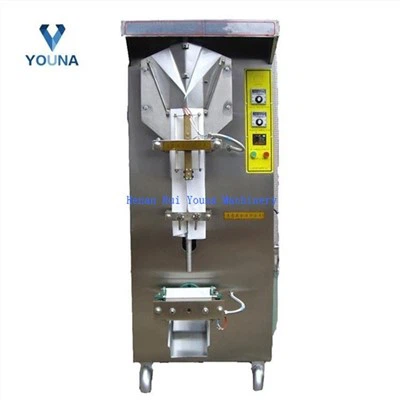

The vertical packaging machine is made entirely of stainless steel, boasting a stylish appearance, a rational structure, and advanced technology. During the packaging process, the material is fed through a stretching and feeding device. The plastic film is formed into a cylindrical shape by passing through a film cylinder, and then the sides are sealed by a heat-sealing device. Simultaneously, the packaged goods are injected into the bag. The horizontal sealing mechanism cuts the packaging length and position according to the color mark photoelectric detection device. The working principle of the vertical packaging machine is as follows: The rolled film placed on the support device is wound around the guide roller group tensioning device. After the photoelectric detection control device detects the position of the trademark pattern on the packaging material, it is rolled into a film cylinder by the forming device and wrapped around the surface of the filling tube. First, the longitudinal heat sealer performs longitudinal heat sealing on the joint of the rolled cylinder, obtaining a sealed tube. Then, the cylindrical film moves to the transverse heat sealer for transverse sealing, forming a packaging bag tube. The metering device fills the packaged bag with the metered goods through the upper filling tube, and then the transverse heat sealer heats and cuts it in the center, forming a packaging bag unit, while simultaneously forming the bottom seal of the next tube bag.
Vertical Packaging Machine Features:
* Imported PLC fully computerized control system with a full Chinese/English touchscreen operating system, clearly displaying all working statuses and operation instructions.
* The vertical packaging machine adopts a high-precision servo film feeding system, ensuring smooth film feeding, and is equipped with a photoelectric automatic positioning and tracking system for high positioning accuracy.
* Intelligent digital temperature control system provides stable temperature difference control, and is equipped with a toothed sealer to ensure a firm seal.
* Includes automatic fault alarm display function, automatically alarming or stopping the machine when the glass protective door is opened, such as low temperature, no packaging film, no ribbon, no material, servo fault, or no color mark signal.
* When paired with a metering device, this machine can automatically complete the entire packaging process, including metering, feeding, filling, bag making, date printing, and finished product output.
The vertical packaging machine is a new type of fully automatic zipper stand-up pouch packaging machine developed based on the horizontal fully automatic packaging machine. It features advanced packaging concepts and mature technology. Depending on the configuration of the feeding machine, it can achieve fully automatic stand-up packaging of products such as liquids (beverages, jams, detergents, soy sauce, etc.), powders (flour, seasonings, milk powder, pesticides, etc.), granules (seeds, sugar, grains, agricultural products, etc.), and lumps (peanuts, chewing gum, potato chips, pet food, etc.). It is widely applicable to industries such as food, hardware, electronics, pharmaceuticals, cosmetics, fertilizers, and agricultural products.
Vertical packaging machines are widely used in daily life and are suitable for packaging various powders, granules, tablets, and other items. The biggest difference between vertical packaging machines and other packaging machines is that the material feeding cylinder is located inside the bag maker, and bag making and filling proceed vertically from top to bottom.
