Dry Solid Material Blending Machine
Products Description Dry Powder Blending Machine This machine has a wide application range, such as: metal powder or granule, Chemical powder or granule, food powder or granule,herbs powder or granule or medicine powder granule, Feed powder or granule, Fibrous powder or granule and so on...
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description

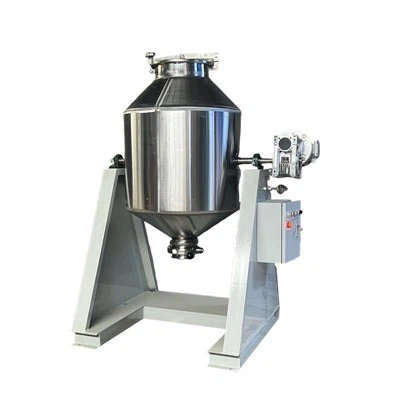

Dry Solid Material Blending Machine
1.This machine is standard timing shutdown, speed adjustable 0-33R/M sorting purchase timed reverse mixing, can realize positive rotation after a few laps in a few laps so agreed to reverse the mixing time of shutdown, this function than the single direction of high mixing efficiency several times, the co pilot Laboratory of precision or mixed materials need efficient mixing.
2.The machine is suitable for mixing dry, flour, granular materials and irregular materials in and food products.
3.The mixer inner walls are smooth without any dead corner. The tank is provided with unique four-direction mixing movement track. With mixing evenness of 99%, high mixing precision and high speed, ideal mixing effect is achieved.
Products specification
Dry Solid Material Blending Machine
Product Specification
|
Drum mixer |
30type |
50type |
100type |
|
Rated voltage |
220v/380v |
220v/380v |
220v/380v |
|
Rated power |
3kw |
3kw |
3kw |
|
External dimensions (butterfly valve) |
1020*700*1330 |
1070*750*1500 |
1250*900*1620 |
|
External dimensions (flat mouth) |
1020*700*1200 |
1070*750*1240 |
1250*900*1370 |
|
Frame size |
700*950*720 |
750*1020*750 |
890*1180*900 |
|
Bucket body diameter |
400mm |
460mm |
590mm |
|
Barrel body length |
830mm |
780mm |
980mm |
|
Feeding port size |
200mm |
200mm |
235mm |
|
Discharge port size (flat port) |
200mm |
200mm |
235mm |
|
Discharge port size (butterfly valve) |
100mm |
100mm |
130mm |
|
Total volume |
60L |
90L |
180L |
|
Spindle speed |
82-84r/min |
82-84r/min |
40-41r/min |
|
Barrel body rotational speed |
12-13r/min |
12-13r/min |
9-11r/min |
|
Overall weight of the machine |
130kg |
130kg |
150kg |
|
Overall machine volume |
0.98m³ |
0.98m³ |
1.5m³ |
|
Barrel body thickness |
2.5mm |
2.5mm |
2.5mm |
|
Single stirring time |
3-5min |
4-6min |
6-10min |
Products Details
Dry Solid Material Blending Machine
Products effect
Dry Solid Material Blending Machine
Large capacityeandmultifunstiopal mixing, everything you want can be achieved for you.
certificate
packing and shipment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
