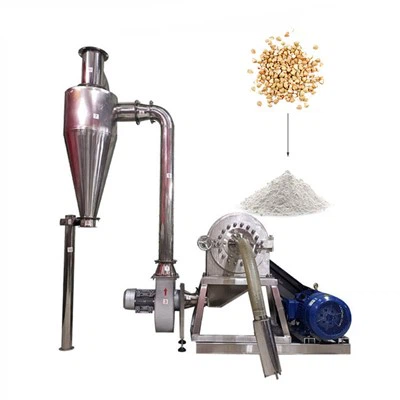

Spice Powder Grinding Pulverizer Machine





Spice Powder Grinding Pulverizer Machine



Stainless steel claw crusher is widely used in food, chemical, non-metallic mining and other industries, suitable for crushing dry brittle materials. The machine has simple structure, strong, stable operation, fast and uniform crushing material, and good effect. The machine is made of stainless steel material, and the interior of the shell is precision machine to achieve the effect of smooth surface and easy to clean, which changes the phenomenon of rough inner wall of the ordinary crusher, easy to accumulate powder and difficult to clean, so that the production of food, medicine, chemical industry and so on can more meet the national standards. The machine has the advantages of simple structure, convenient disassembly and assembly of crushing chamber, easy cleaning, and replacement of claw after wear. Smooth operation, low noise, low vibration. Simple operation, replacing the screen can control the size of the crushing particle size.



Spice Powder Grinding Pulverizer Machine

Product Specification

Model	200type	300type	400type	500type	600type	800type	1000type
Bottom box type: length * width *height (mm)	520*420*970	920*530*1235	1250*850*1350	1300*920*1390	1450*930*1480	1750*1150*1760	2000*1260*1950
Simple bracket type length * width*height (mm)	450*420*970	870*530*1235	1200*850*1260	1400*920*1290	1350*930*1380	1550*1150*1650	1900*1260*1850
Spindle speed (revolutions per minute)	7000	5700	4500	3900	3200	2800	1800
Rotor working diameter (mm)	160	230	320	370	450	600	800
Matching power (KW)	1.5-2.2	3-4	5.5-7.5	7.5-11	11-15	18.5-22	22-30
Weight of the bottom box type (Kg)	85	120	196	270	315	550	750
Weight (Kg) of simple bracket type	70	110	180	250	320	522	700
Production capacity (Kg/h)	10-120	30-200	50-300	70-400	100-500	500-1500	800-2000
Feed particle size (mm)	≦12	≦12	≦12	≦12	≦12	≦12	≦12
Grinding particle size (mesh)	10-120	10-120	10-120	10-120	10-120	10-120	10-120
Select bearings	6205	6207	6207	6309	6309	6312	6312











Spice Powder Grinding Pulverizer Machine





1) NO need screen or sieve in mill chamber, change powder particle size by changing speed;
2) Because it has no screen in mill chamber,when milling, there is no heat rising in mill chamber;
No need to worry power get stuck in the screens or product quality get affected by the heat from the mill. That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.
3) The mill part combines coarse crusher, middle fine milling area and fine milling area( it combines 3-stage grinding at one time) together, which means it can makes fine powder directly from big raw material, very effective.
4) It can save more power, its capacity is much bigger than other same motor traditional mill.

5) You can feed big raw material. (like complete ginger, complete turmeric,complete chilli directly into the mill chamber, it can grind them into fine powder directly.)
