Minral Water Filling Machine
Pump head is made of 316L
Acid and alkali resistance
corrosion resistance
It is suitable for a wide range of applications
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
1. Principle and performance of the Minral Water Filling Machine
1. Working principle: This series of Minral Water Filling Machine is a semi-automatic piston filling machine. The cylinder drives a piston to suck and eject the material, the flow direction of the material is controlled by the check valve, and the stroke of the cylinder is controlled by the magnetic switch to adjust the filling volume.
2. Performance: On the basis of domestic filling machines, the Minral Water Filling Machine produced by our company has introduced foreign advanced technology and carried out a series of transformations and innovations. Its structure is simpler and more reasonable, and its filling accuracy is high. , It is easier to disassemble, wash and operate. The parts in contact with the material are made of 304/316L stainless steel, which meets the requirements of GMP. The pneumatic components are imported from Taiwan Airtac, SHAKO and other pneumatic components. With the advantages of corrosion resistance, aging resistance, high temperature resistance and good sealing, it is an ideal choice for filling equipment in food, pharmaceutical, chemical, daily chemical, oil, pesticide and other industries.
technical parameter
|
Voltage power |
220V±5V 110V±5V 10W |
|
Current |
10A |
|
Rated air pressure |
0.4-0.6MPa |
|
Filling speed |
single head 10-30 bottles/min, double head 20-60 bottles/min 4 head 40-80/min |
|
Filling accuracy |
±0.5 - ±1% |
|
Filling range |
10-100ml, 20-200ml, 50-500ml, 100-1000ml, 3000-2600ml, 1000-5000ml |
|
Equipped with air volume |
≥0.1 m3/min |
equipment structure

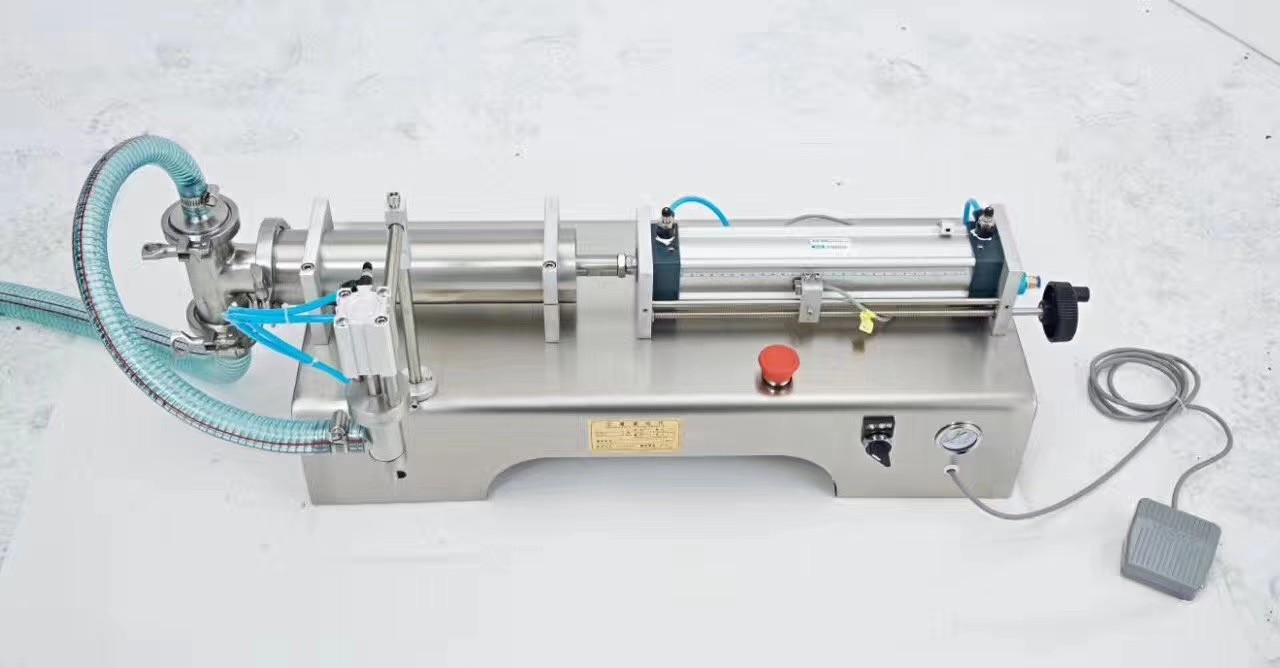

1 filling head Minral Water Filling Machine
2 filling head Minral Water Filling Machine

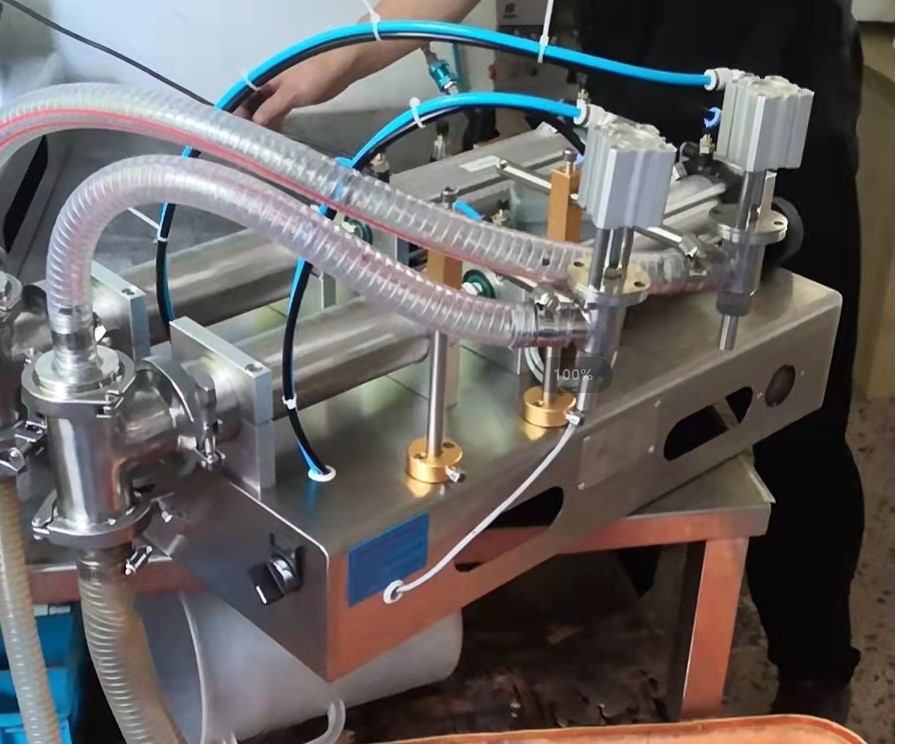

4 filling head Minral Water Filling Machine
Products Application
Minral Water Filling Machine
certificate
FAQ
FAQ
Q: Are you a factory or trading company?
A: We are a factory specialized in daily cosmetic, foods, beverage, Pharmastic Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.
Q: How does your factory do regarding quality control?
A: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication
Q: What's the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn't caused by improperly operation then we would offer the new parts for free.
