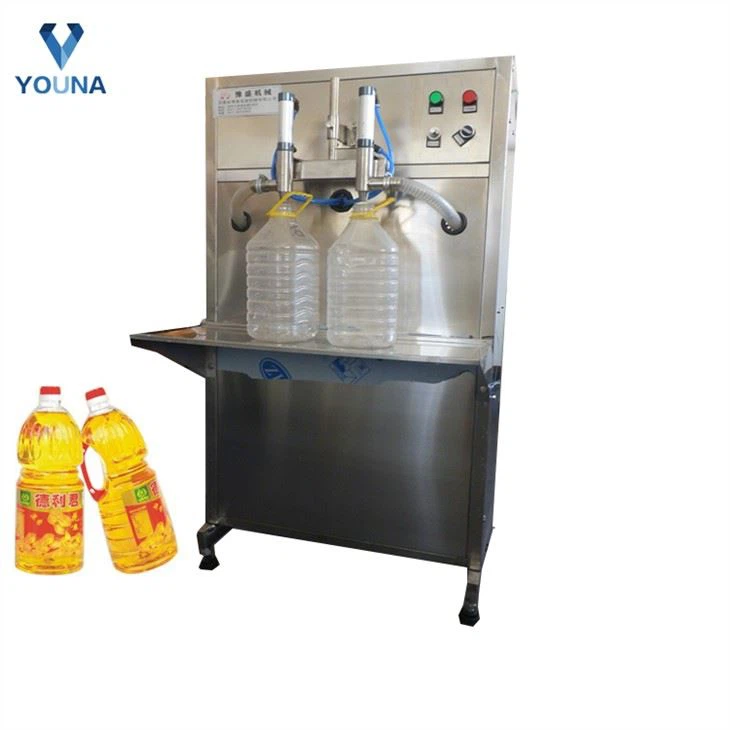

1 Gallon Bottle Filling Machine

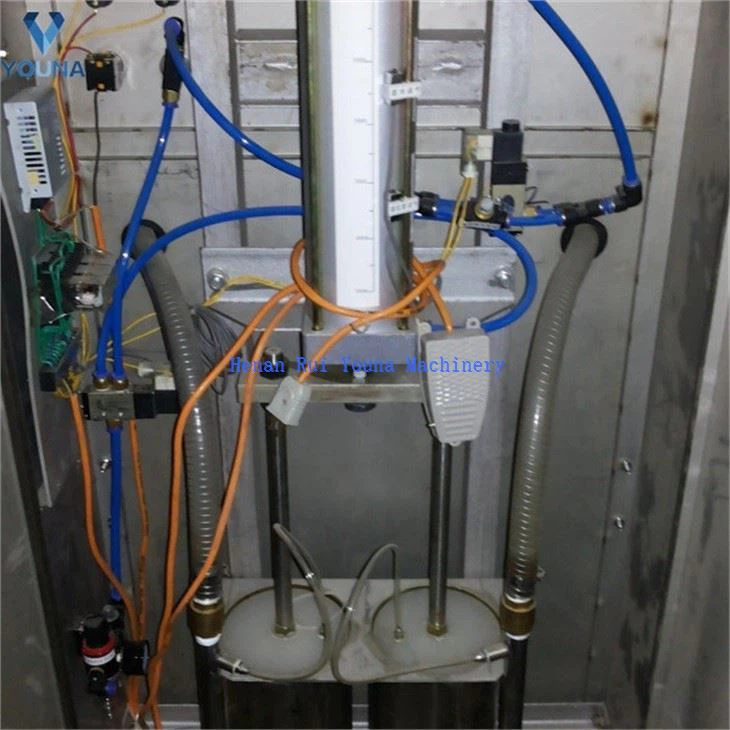

The 1 gallon bottle filling machine quantitative cup structure, driven by the oil-cylinder piston’s repeated movement which driven by air-cylinder, quantitative filling the oil into bottles, high accuracy, speed filling, double speed filling, slow down after fast, more accurately .
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service

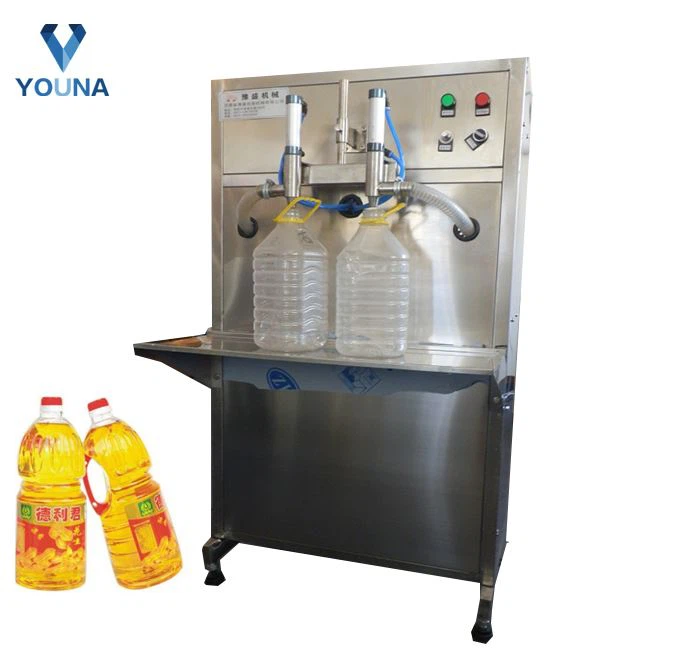

Product Introduction

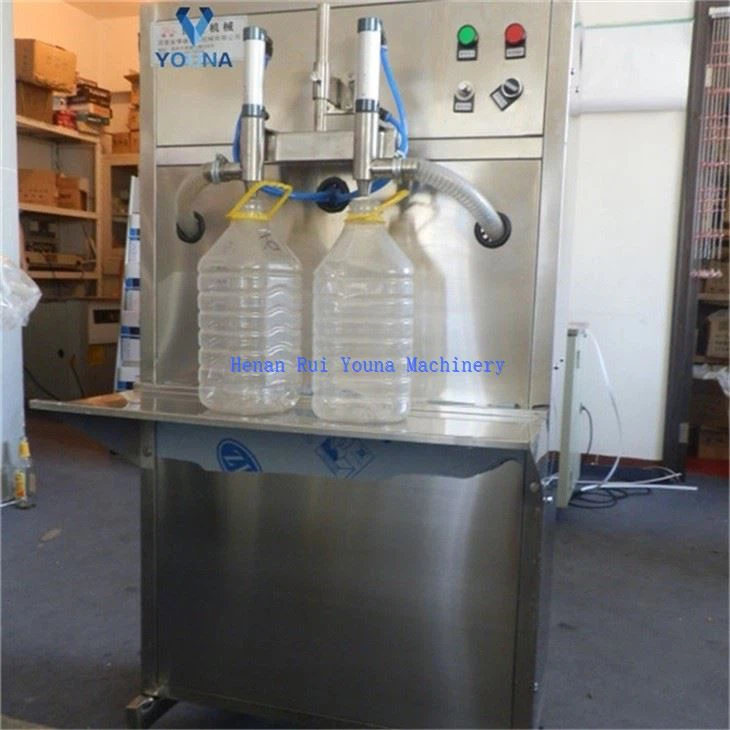

The 1 gallon bottle filling machine quantitative cup structure, driven by the oil-cylinder piston’s repeated movement which driven by air-cylinder, quantitative filling the oil into bottles, high accuracy, speed filling, double speed filling, slow down after fast, more accurately .

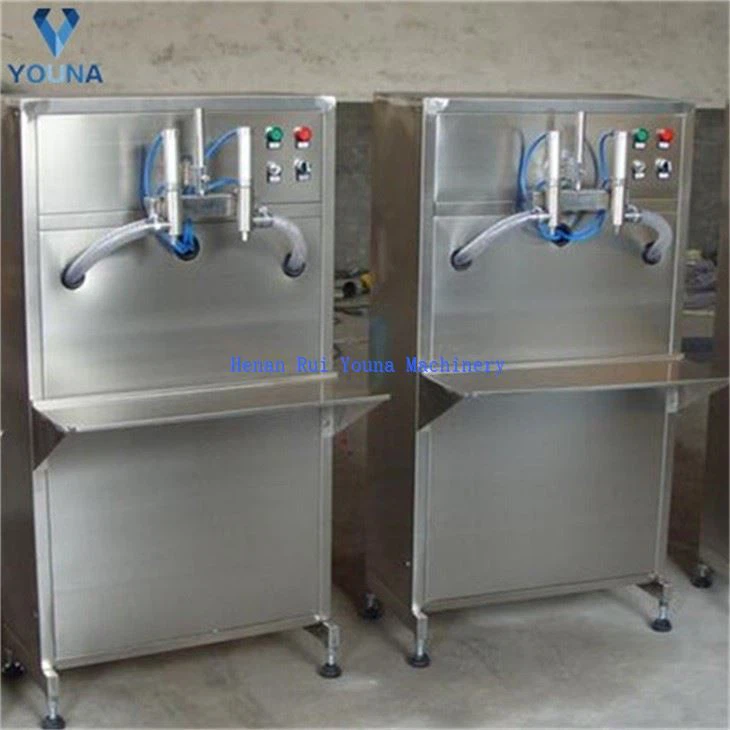

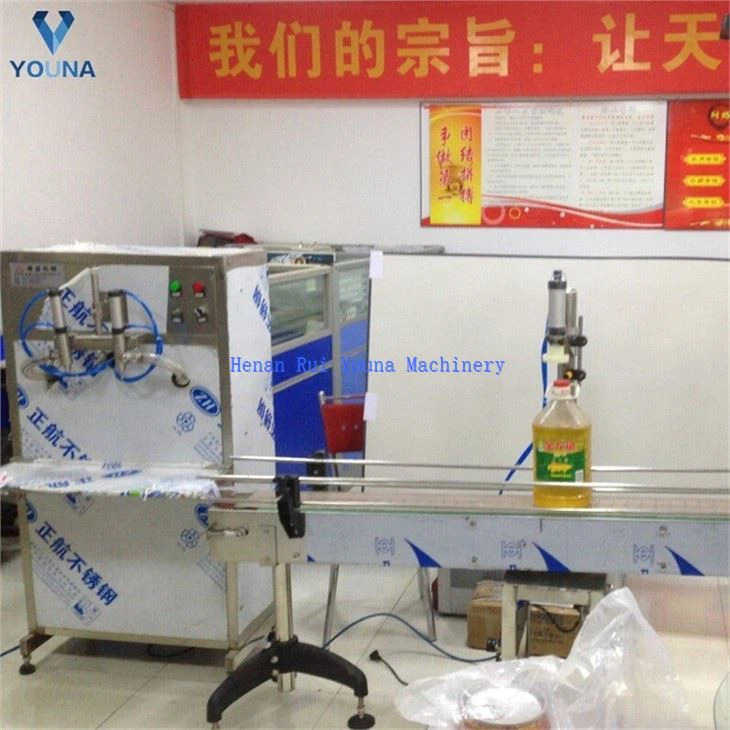

The 1 gallon bottle filling machine is made of 304 stainless steel,controlled by digital timer,driven by pneumatic and can be used with conveyor.
Suitable for low viscosity liquids(such as Coolant,Water,Juice,Soy sauce etc)
Model | YNDY-F |
Filling capacity | 1-5L |
Filling speed | 100-300 times/h |
volt | 220/380V |
Filling accuracy | <±1% |
Air pressure | 0.5-0.7Mpa |
Size | 600×598×1300mm |
N.T. | 70 KG |
Products Attention
Replace the cylinder seal for the 1 gallon bottle filling machine
(1) Loosen the middle shaft connecting nut between the cylinder and the cylinder to disengage the connecting rod. Loosen the cylinder fixing bolts to remove the cylinder.
(2) Remove the piston from the cylinder and remove the seal with a flat-blade screwdriver.
(3) Heat the new seal ring with warm water and insert it into the piston installation groove according to the original direction. Do not install the seal and the piston and the piston.
(4) Put the piston of the well-seal ring into the cylinder.
(5) Install the cylinder according to the original disassembly sequence, and tighten the screws.
Precautions
1 chassis grounding needs to be good
2 the 1 gallon bottle filling machine working environment temperature≥5°C
3 At the air pressure control valve, the new oil should be periodically replaced in the inlet oil cup to prevent the air from the compressor from entering the equipment cylinder.
Note: The ordinary air compressor can realize the filling machine work (it is recommended that the user brings one air compressor of 0.36m3∕min)
