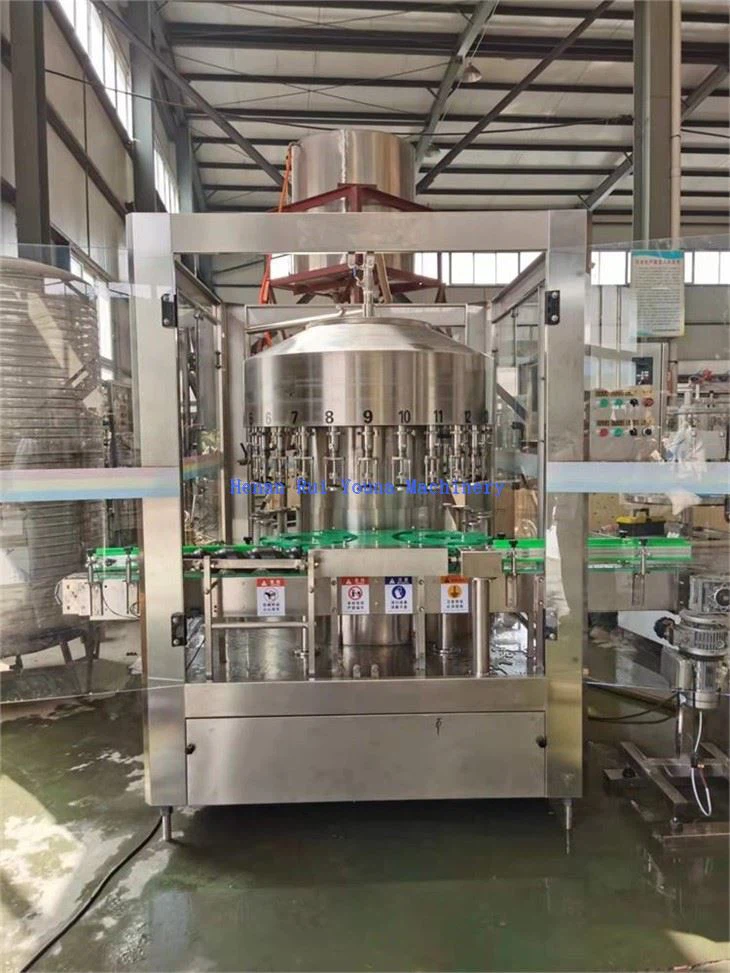

24 Heads Automatic Coconut Juice Filling Capping Machine
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, To enable bottle-Size change become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only...
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, To enable bottle-Size change become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. Juice hot filling valve filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
model | GDP-12 | noted |
capacity(b/h) | 2000-5500 | 500ml bottle |
filling heads | 12 18 24 | |
suitable bottle height (mm) | 160-360 | |
suitable diameter（mm） | Φ50-Φ100 | |
filling volume（500ml） | filling error ±3mm | botthe height error at 2-5mm |
motor power（kW） | 0.75 | NRV063/60 |
Vortex pump（kW） | 0.75 | 380V |
machine weight(kg) | 1000 | |
machine size (mm) | 1200*1400*2000mm |
Products Display
