Automatic Carton Opening Machine With Taping Bottom
High-speed servo vertical carton erector is designed for high requirements of box , machine adopts electric eye automatic induction, servo control and drive design to ensure four sides of the box can be accurately grabbed and formed by the suction cup ,to make 90 degree in four corner of box,...
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description

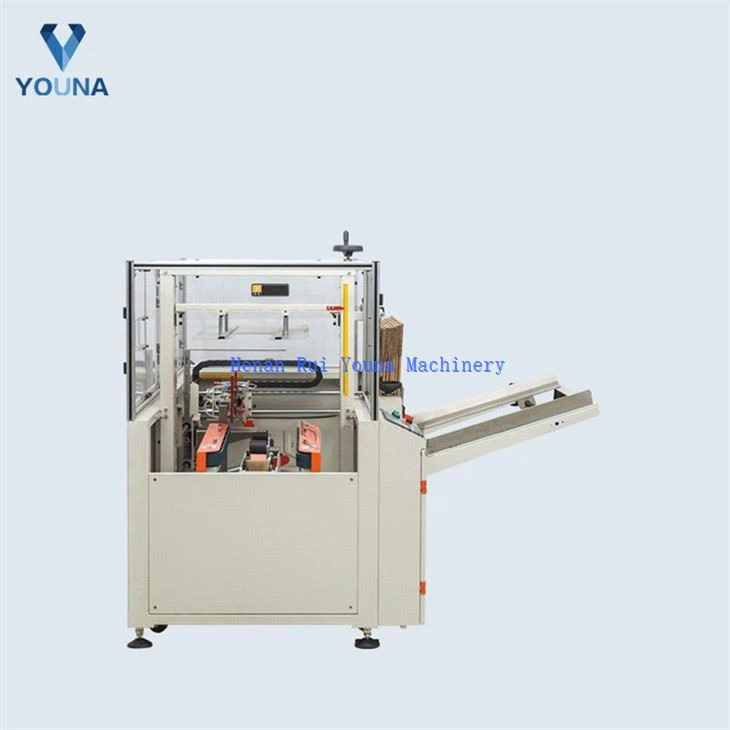

Automatic Carton Opening Machine With Taping Bottom
1. High-speed servo vertical Automatic Carton Opening Machine With Taping Bottom is designed for high requirements of box , machine adopts electric eye automatic induction, servo control and drive design to ensure four sides of the box can be accurately grabbed and formed by the suction cup ,to make 90 degree in four corner of box, Servo control of the whole storage ,
2. Simulation of automatic induction door opening system , Movable gate design to break tradition carton erector defect of scratch the surface of the box when it take box by suction cups , Protect all side of box , suction cup can automatically open the feeding when it grabs the carton , when suction done will closed, no box drop , high efficiency of box forming . horizontal form mechanism to flaps bottom ,fast peed, Better protect of box , even if the box is wrinkled, soft, broken cardboard can be easily formed ,
3. speed is 20 boxes per minute, widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries .
technical parameter
Automatic Carton Opening Machine With Taping Bottom
|
Model |
DKX4540 |
|
Power supply |
220V 50/60HZ |
|
Power |
240w |
|
Table height |
Min.H600 -650mm |
|
Air source |
>500L/min,0.4~0.8Mpa |
|
Tape |
W48, 60, 75mm |
|
Carton Size |
L250~450mm/W150~400mm/H100~400mm |
|
Speed |
8-12 box/min |
|
Dimension |
L2000*W1900*H1450mm |
|
Machine weight |
NW-400kg GW-550kg |
Products details
Automatic Carton Opening Machine With Taping Bottom
 |
The smart touch screen is simple and beautiful, human-machine interface, smart touch screen, simple and beautiful appearance, complete internal functions, simple and clear operation, with emergency stop switch, safer to use. |
|
Reasonable circuit design PLC control, wiring and layout not only meet the design requirements, but also the process is simple and beautiful. |
 |
 |
The tape is not easy to fall off, the sealing effect is good, the tape is not easy to fall off, the sealing process is smoother, the advanced sealing liner seals smoothly, the work efficiency is high, manpower is saved, and the sealing effect is good. |
more Products
Automatic Carton Opening Machine With Taping Bottom
the automatic carton opening machine also can work with the carton sealing machine
factory corner
certificate
packing and shipment
