Automatic Loose Leaf Tea Packing Machine
automatic loose leaf tea packing machine is a kind of machine used for packing tea seeds, medical, health-care and tea industries granular shaped ingredients. All of these items could be packed with envelops, and with thread and tag at the same time. The processes of...
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description

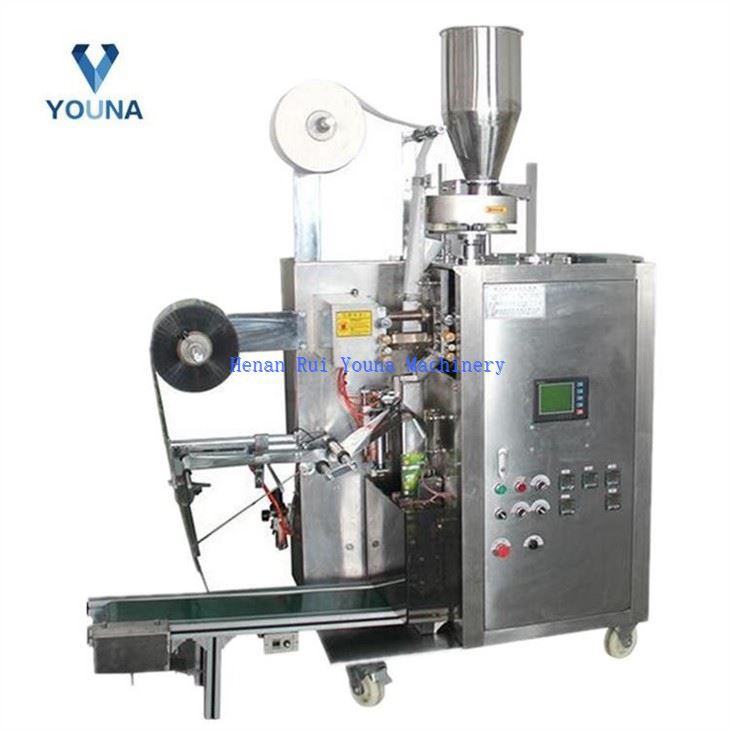

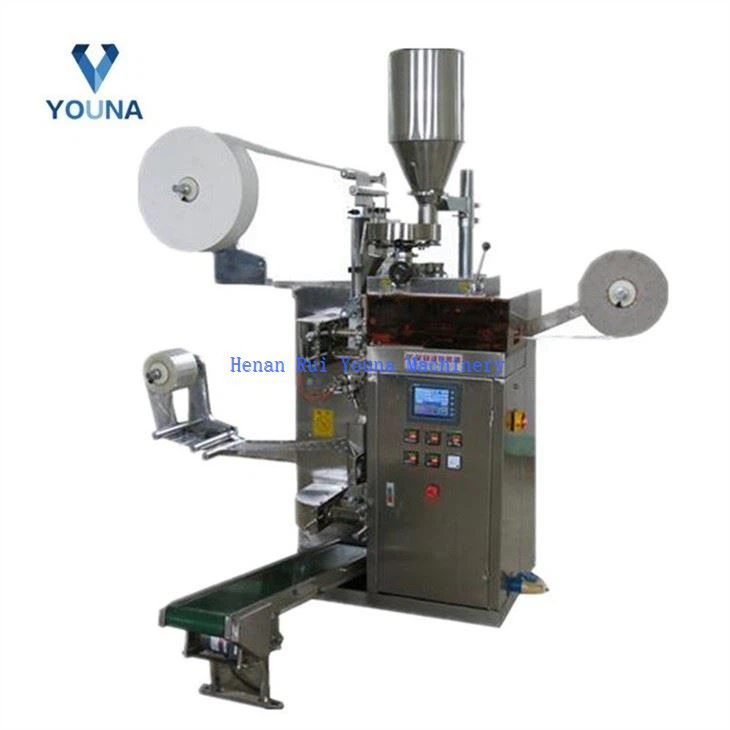

automatic loose leaf tea packing machine
1. The structure of the automatic loose leaf tea packing machine is tight, firm, with reasonable design and simple appearance.
2. Stepping motor film, can adjust the parameters on the screen, easy to operate.
3. Frequency conversion speed regulation, more stable operation, lower noise, lower failure probability
4. automatic loose leaf tea packing machine can be even packaged or individually packaged, and can be connected to the inflatable device to meet the needs of different products.
5. Automatic bag-making from metering, filling, metering, sealing, printing date, product output one-time completion.
6. eye mark sensor control system is adopted for accurate packing of products
7.Borrow the principle of spring pressure knife, pneumatic cutting.
technical parameter
automatic loose leaf tea packing machine technical parameter
|
Model |
YNJX-88 |
YNJX-88A |
|
Pack way |
Outer bag inner bag without string |
Outer bag inner bag with string |
|
Packing range |
3-15ml |
3-15ml |
|
Packing speed |
30-60 bag/min |
30-40 bag/min |
|
Inner bag size |
W: 50-80mm L: 50-70mm |
W: 50-80mm L: 50-70mm |
|
Outer bag size |
W: 70-90mm L: 80-120mm |
W: 70-90mm L: 80-120mm |
|
Tag size |
No |
W: 40-55mm L: 20-40mm |
|
String |
No |
155mm |
|
Volt |
220V/50HZ |
220V/50HZ |
|
Power |
3.5KW |
3.5KW |
|
Air consumption |
0.2-0.5Mpa |
0.2-0.5Mpa |
|
Air pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
Machine size |
1000*950*2000mm |
1000*950*2000mm |
|
Weight |
500KG |
500KG |
Products effect
automatic loose leaf tea packing machine is suitable for packaging small and light particulate such as tea, medicinal tea, healthy tea, scented tea and tea powder etc. It can be packaged in ordinary bag, labeled and hanging thread bag, nylon bags, nylon inner and outer bags and triangular nylon bags etc.
factory corner
certificate
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
