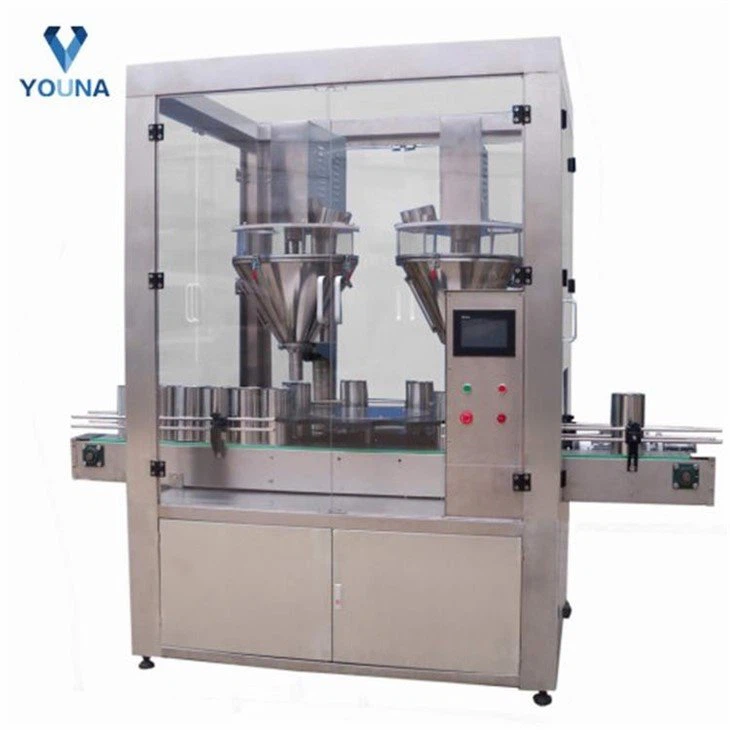

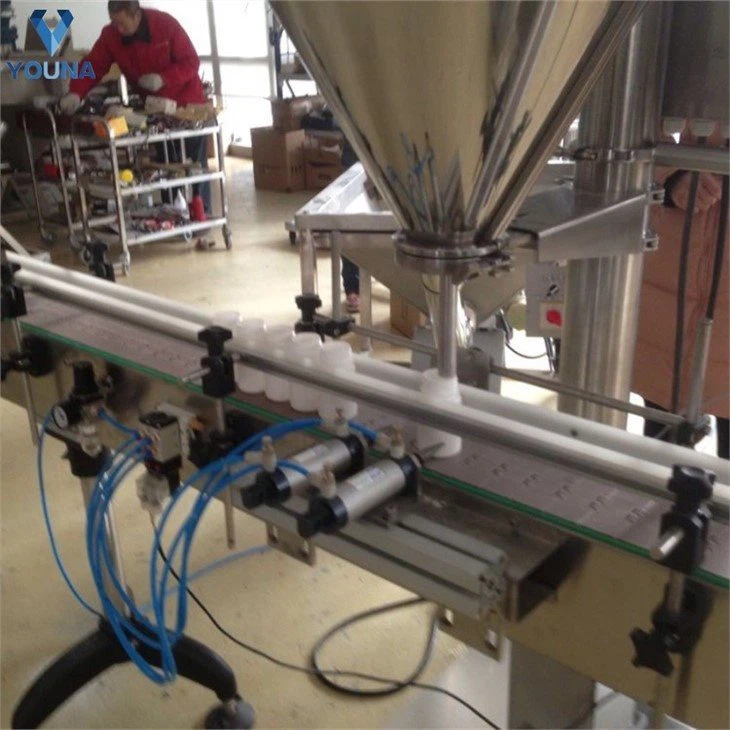

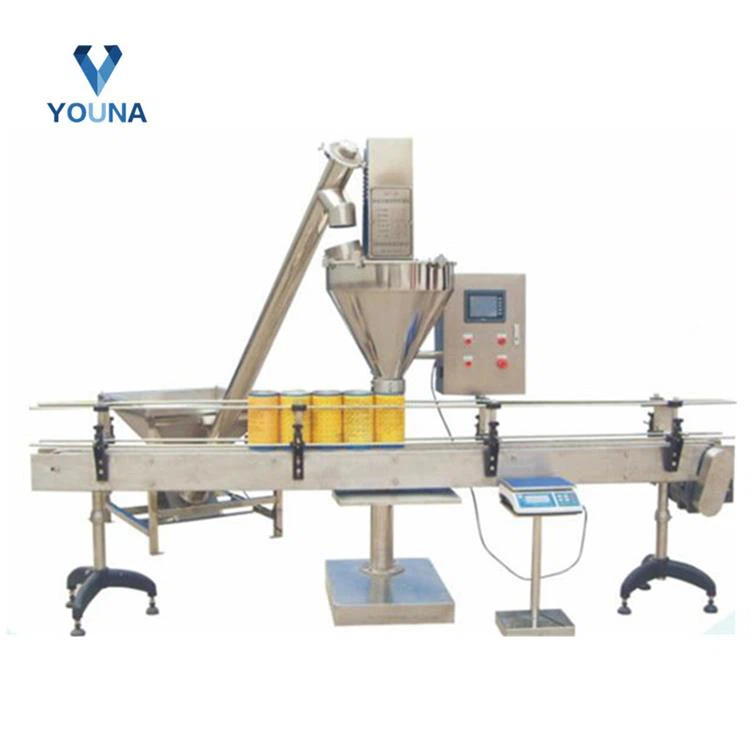

Automatic Milk Powder Filling Machine
This automatic milk powder filling machine is an economic applicable equipment. It can complete locate the bottle, filling and metering automatically, This automatic consists of a filling head, a chain plate conveyor belt and a positioning device, adopt the servo (or step) motors, PLC and touch screen control, simple operation, high stability.
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
This automatic milk powder filling machine is an economic applicable equipment. It can complete locate the bottle, filling and metering automatically, This automatic consists of a filling head, a chain plate conveyor belt and a positioning device, adopt the servo (or step) motors, PLC and touch screen control, simple operation, high stability. To unscramble bottle machine, screw cap machine, labeling machine, etc of a complete set of filling machine. The milk powder can filling machine is suitable for packing powder and small granular materials, such as powder, small granules drugs, veterinary medicine, glucose, seasoning, solid beverage, carbon powder, talcum powder, pesticide, etc.
Counting way | Auger |
Precision | Error≤±1% |
Packing speed | 20-40bottles/min |
Power supply | 3 phase 380V 50-60Hz |
Power | 1.2Kw |
Air pressure | 5-8kg/cm3 |
Conveyor width | 150mm |
Conveyor length | 220cm |
Conveyor stainless steel thickness | 1.5mm |
Weight | 220Kg |
Size | 2000×850×1850mm |
1.All the main parts of the automatic milk powder filling machine are made of stainless steel,composite transparent hopper,easy to clear.
2. automatic milk powder filling machine adopts servo (or step) motor driven,difficult to wear out, accurate positioning,manual control and stable working performance.
3.Adopt PLC control, stable work performance, high precision
4.English and Chinese Touch screen,shows the working state, operating instructions , fault status and production statistics clearly, very easy to operate.
5.This milk powder can filling machine has the record function for the powder ingredients, could be storaged for later use. At most could record 10 ingredients.
6.By replacing the screw,the automatic is also workable for either powder or some small granular material
7.Installation of centrifugal device to make sure higher packing precision of some good fluidity material
8.As to powder material,milk powder can filling machine can also equipped with the dust collection device to make sure good working environment.
1. More Professional service in packaging exporting field
2 Good manufacture ability
3.High quality/Safe material/Competitive price
4. .Small order available
5.Quickly response
6.More safe and fast transport
7.OEM design for all customers
