Filling Liquid Machine
Pump head is made of 316L
Acid and alkali resistance
corrosion resistance
It is suitable for a wide range of applications
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Production Introduction
the small Filling Liquid Machine suitable for low viscous liquid like water, wine, solutions etc.
Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.
The tubes of the Filling Liquid Machine are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility.
Technical parameter
Model | RDB-1 Filling Liquid Machine |
power | 0.05(kw) |
Filling Speed | 100ml/min |
Filling accuracy | 0.5(%) |
Voltage | AC220V/50 Hz |
Time set | 0.01s~999.9s |
Counter | 1~59999 |
Filling nozzles | 2mm (accept customized) |
Machine size | 160*250*330mm |
Weight | 6kg |
Working pattern | set the filling speed and filling time to control the filling volume |
Equipment structure

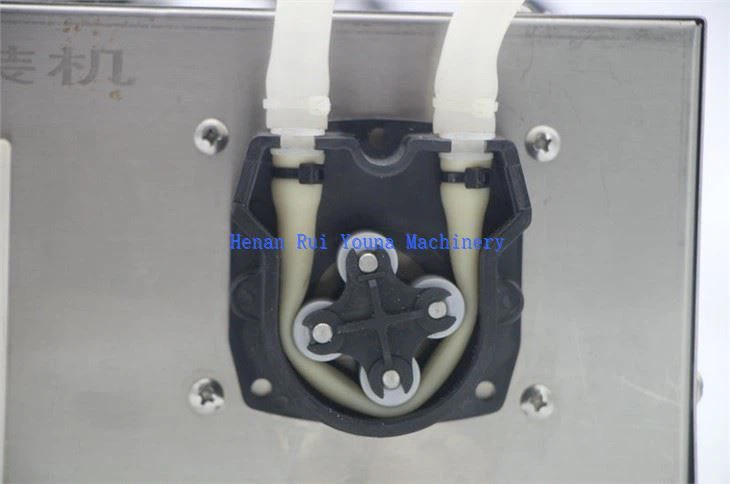

1. control panel 2. power switch 3. Foot switch socket 4. Discharging mouth 5. Magnetic pump head 6. Fixed bracket 7. Check valve 8. Filter
