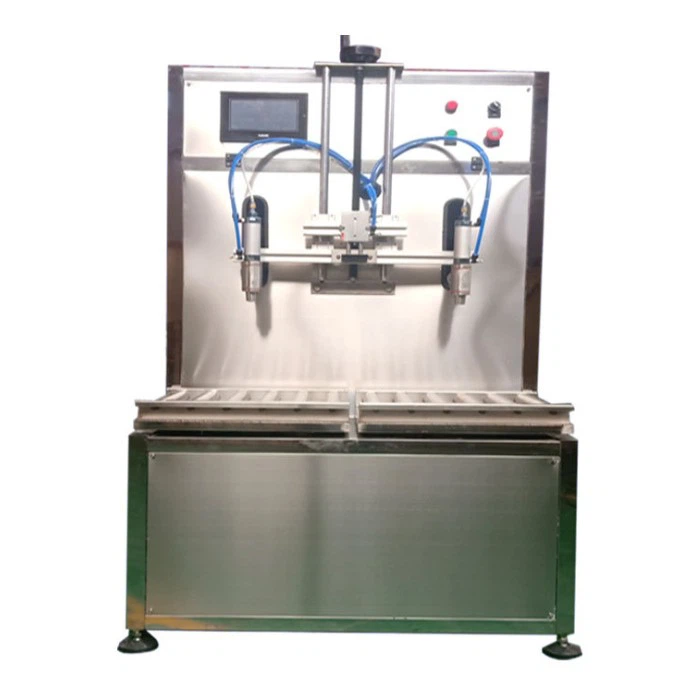

5L 10L Big Bottle Water Oil Filling Machine
The 5L 10L big bottle water oil filling machine quantitative cup structure, driven by the oil-cylinder piston’s repeated movement which driven by air-cylinder, quantitative filling the oil into bottles, high accuracy, speed filling, double speed filling, slow down after fast, more accurately .
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction
Products Description
5L 10L Big Bottle Water Oil Filling Machine
1. the 5L 10L Big Bottle Water Oil Filling Machine using the combination of electronic sensing technology and frequency conversion technology, the filling accuracy is high, different from the flow meter filling, the pipeline resistance is small and the filling speed is fast;
2. 5L 10L Big Bottle Water Oil Filling Machine using digital display and touch technology, it is more intuitive and the operation is easier to learn;
3. The filling range is large, and it is more practical to fill within the rated bearing weight of the sensor;
4. The use of imported AirTAC pneumatic components and imported PLC has a longer life;
5. The appearance of the machine is made of 304 stainless steel, which is resistant to corrosion and oxidation, which enhances the overall life of the equipment;
technical parameter
5L 10L Big Bottle Water Oil Filling Machine
| technical parameter | |
|
Name Model |
CZG-2 |
|
Filling capacity |
1-50kg |
|
Filling speed |
about800 barrels/hour (for 5L) |
|
Filling error |
±≤1% |
|
Power supply |
380V |
|
Filling head |
Double head |
|
Air source pressure |
0.4-0.7Mpa |
|
Equipment size |
900*700*1700 |
|
Number of sensors |
2 |
|
Contact matreial |
304sus |

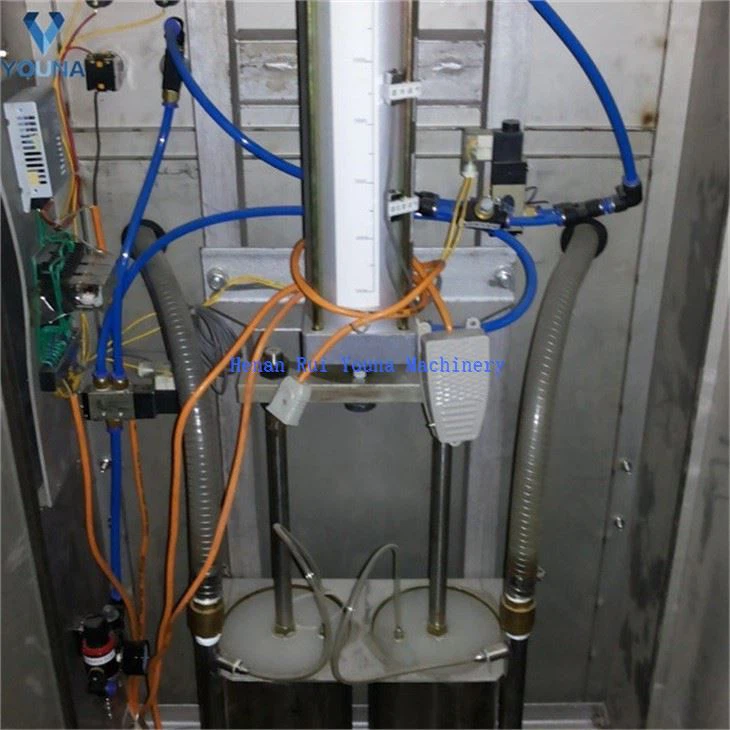

Products shows
Products effect
5L 10L Big Bottle Water Oil Filling Machine
certificate
packing and shipment
FAQ
Q: How is your after-sales service system?
A: We offer one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation, commissioning and training services.
Q: May we visit your factory and inspect the machines in detail?
A: We highly appreciate the factory visit, which will offer machine testing services, face-to-face discussions, and turnkey project design solutions.
Q: If we have very special requirements for the production line, can you help me with the design?
A: We provide experienced mechanical designers for customized design.
Q: If we show you our factory layout, could you help design the entire production line for us?
A: We provide layout design services after receiving the factory layout dimensions from the customer.
Q: How long is your delivery time?
A: small quantity with in 1-7 days, big quantity within 10-30 days.
Q: What is your term of payment?
A: we accept TT Western Union, L/C.
Q: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
