Medium Temperature And High Temperature Hot Solid Ink Roller
Medium temperature and high temperature hot solid ink roller hot solid ink roller Technical parameter:
- Fast Delievery
- Quality Assurance
- 7*12 Customer Service
Product Introduction

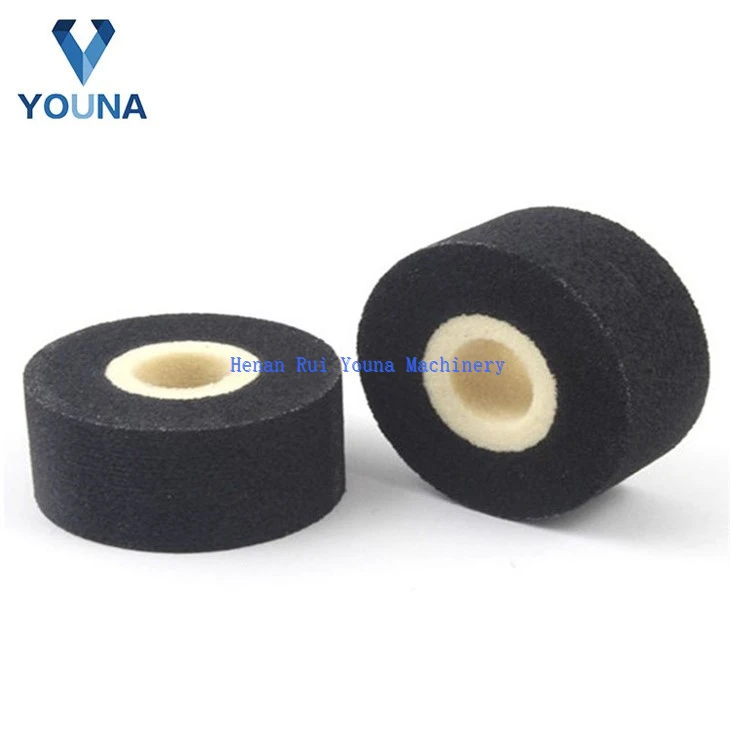

Medium temperature and high temperature hot solid ink roller
hot solid ink roller Technical parameter:
Model | middle temp ink roller | high temp ink roller |
Service temperature | 100--150°C | 120-160°C |
Features | easy to use, high definition, quick drying,anti-scratch,pollution-free,non-toxic, many times of printing, low cost, good adhesion. | Strong adhesion, anti - freezing. |
Application | Suitable for printing letters and numbers on flexible packaging materials such as paper, PP film, PE film, PET film, PVC etc. | |
Specification | 36mm"10mm 36mm*16mm 36mm*32mm 36mm*36mm 36mm"40mm 40mm*40mm 48mm*55mm 48mm*60mm | |
Color | black red white yellow blue green grey orange | |
Others | Support to customize different colors and specifications | |
Medium Temperature And High Temperature Hot Solid Ink Roller Test effect
The printing is clear, good adhesion, quick-drying, longer usage life,suitable for frozen products.
SPECFICATION | TIMES | TEMP | Adhesive |
Φ36mm×10mm Φ36mm×16mm Φ36mm×32mm Φ36mm×36mm Φ36mm×40mm Φ40mm×40mm Φ48mm×60mm | 10K | 100℃ | ★★★★★ |
40K | 110℃ | ★★★★ | |
80K | 120℃ | ★★★★ | |
100K | 130℃ | ★★★★ | |
110K | 140℃ | ★★★ | |
120K | 150℃ | ★★★ |
Testing conditions: DK1100 coding machine; Φ36×32; PVC film: room temperature 26℃ during testing.
Adhesion test instructions: press 1000g weight on the printing paper, wipe back and forth on the printing surface
Adhesion note: There is no obvious lack of printed content, and the handwriting is complete.
Medium Temperature And High Temperature Hot Solid Ink Roller Test effect packing specification
Usual size | Quantity per box (pcs) | Quantity of boxes per carton (pcs) | Quantity per carton (pcs) | Packaging size (cm) | Weight (KGS) |
36mm*16mm | 24 | 20 | 480 | 282*295*215mm | 7KG |
36mm*32mm | 12 | 20 | 240 | 282*295*215mm | 7.2KG |
36mm*36mm | 12 | 18 | 216 | 282*295*215mm | 7.5KG |
36mm*40mm | 12 | 18 | 216 | 282*295*215mm | 7.5KG |
40mm*40mm | 12 | 15 | 180 | 282*295*215mm | 8KG |

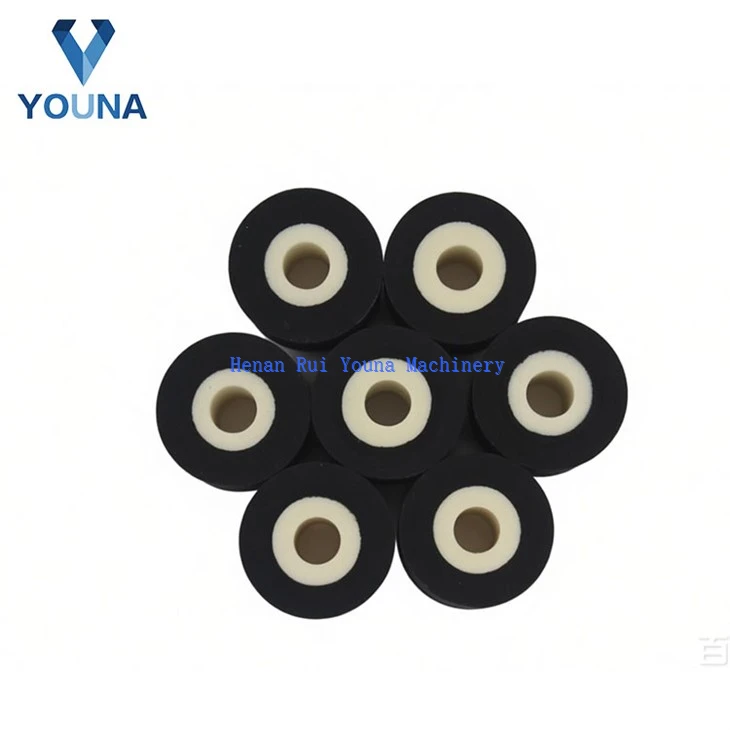

more ink roll picture for you refer
